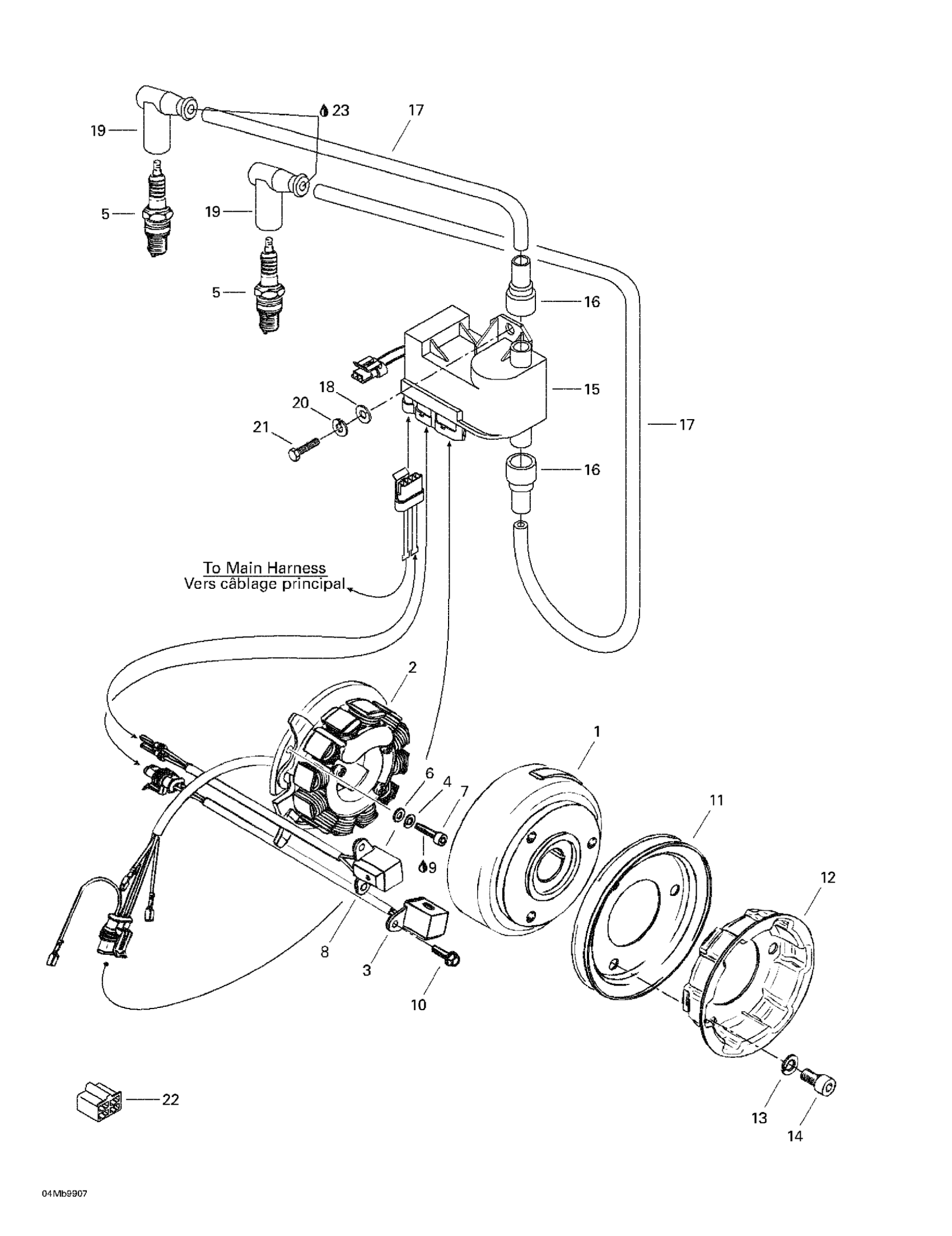

Ski-Doo Formula Deluxe 380/500, 1999 Magneto Diagram
#
Description
Price
1
Magneto Ducati 12V, 240W | Includes 1 - 6.
420887653
Unavailable
2
STATOR PLATE A - Call your local BRP dealership
420886603
Unavailable
3
Pick-Up
420665163
Unavailable
4
Lock Washer
420945750
Unavailable
5
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
6
Washer 5.3
420927574
Unavailable
7
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership
420840515
Unavailable
8
PICK-UP - Call your local BRP dealership
420665160
Unavailable
10
Taptite Screw M5 X 16
420941928
Unavailable
11
V-Belt Pulley
420980486
Unavailable
12
Rope Sheave
420852414
Unavailable
13
Lock Washer
420845311
Unavailable
14
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership
420841522
Unavailable
15
Calibration Module | Formula Deluxe 380.
512059002
Unavailable
Calibration Module | MX Z 500 F. Formula DLX 500 F.
515175386
Unavailable
16
PROTECTION CAP - Call your local BRP dealership
515174900
Unavailable
17
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
18
Flat Washer 6 mm
234061410
Unavailable
19
SPARK PLUG CAP - Call your local BRP dealership
278000237
Unavailable
21
Hex. Screw M6 X 16
207161644
Unavailable
22
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
23
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
