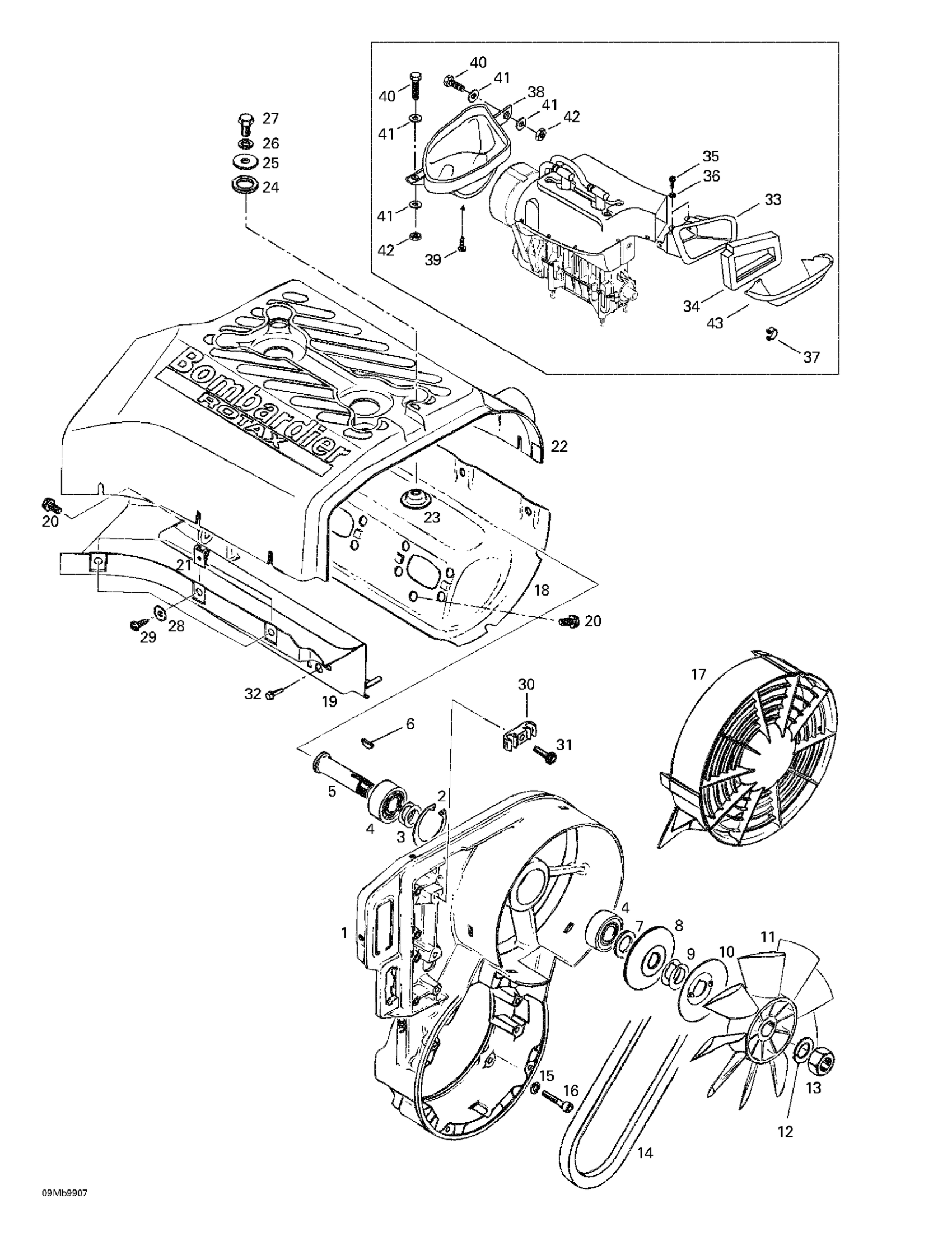

Ski-Doo Formula Deluxe 380/500, 1999 Cooling System Fan Diagram

#

Description
Price

1

Fan Housing

420811262

Unavailable

Fan Housing This part replaces 420912203.

420912230

$447.73

2

Lock Ring

420945880

$4.15

3

Shim

420244585

$1.78

4

Ball Bearing

420832161

$33.55

5

Fan Axle This part replaces 420937940.

420937941

$13.18

6

Woodruff Key

420246015

$3.01

7

Spacer Bushing

420827650

$10.96

8

Flange

420980496

$13.18

9

Shim 0.5 mm

420827080

$2.00

Shim 0.2 mm

420827082

$3.01

10

Protection Washer

420980523

$11.18

11

Fan

420866295

Unavailable

FAN - Call your local BRP dealership

420866292

Unavailable

12

Lock Washer

420945756

$3.01

13

Nut M16 This part replaces 420942285.

420942289

$9.03

14

V-Belt | 380 F.

414630700

$23.10

V-Belt

414630800

$36.54

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 X 30

205063044

$1.63

17

Fan Cover

420975740

Unavailable

FAN COVER - Call your local BRP dealership

420975695

Unavailable

18

Cylinder Cowl (Exhaust Side) | Formula Deluxe 380.

420810552

Unavailable

Cylinder Cowl, Exhaust Side | Formula Deluxe 500.

420810543

Unavailable

19

Cylinder Cowl (Carburator Side) | Formula Deluxe 380.

420810795

Unavailable

Cylinder Cowl (Carburator Side) | Formula Deluxe 500.

420810545

Unavailable

20

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

21

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

22

Cylinder Cowl

420810608

Unavailable

Cylinder Cowl | MX Z 500 F. Formula DLX 500 F.

420810603

Unavailable

23

Cup Washer

420827817

$13.18

24

Rubber Washer

420960865

$2.00

25

Washer This part replaces 420227935.

420227936

$3.19

26

Washer-Lock Din.128

420945832

$1.06

27

Hex. Screw M8 x 16

207181644

$1.00

28

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

29

Self Tapping Screw

413300006

Unavailable

30

CLAMP - Call your local BRP dealership

420860940

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Outlet Duct

572098000

Unavailable

Outlet Duct

572083900

Unavailable

34

Seal

415104000

Unavailable

Seal

415036500

Unavailable

35

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

36

SERRATED LOCK WASHER M5 - Call your local BRP dealership

732900047

Unavailable

37

Clip

414979100

Unavailable

38

Inlet Duct

572097800

Unavailable

39

Tapping Screw

732601292

Unavailable

40

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

41

Washer

517124300

$0.18

42

Elastic Stop Nut M5

232551414

$0.82

43

Air Deflector

572083800

Unavailable
