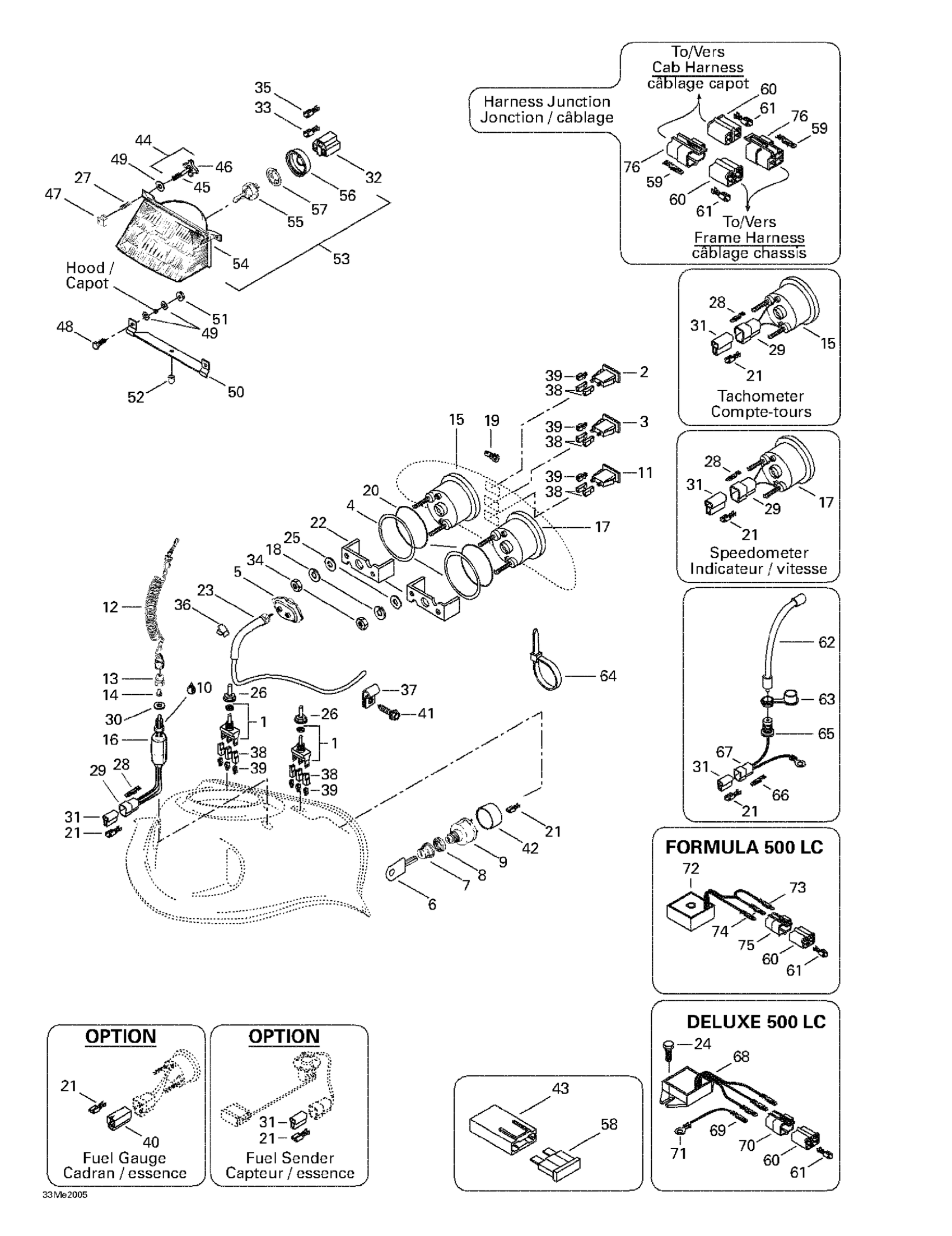

Ski-Doo Formula 500 LC, 2000 Electrical System Diagram
#
2
Pilot Lamp (Red)
410109500
Unavailable
3
Pilot Lamp (Blue)
410109600
Unavailable
4
Washer
517258500
Unavailable
5
Drive Angle
515175400
Unavailable
6
Blank Key
415129350
Unavailable
7
Switch Boot
570013700
Unavailable
9
IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.
410111300
Unavailable
10
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
11
Pilot Lamp, Engine Temperature | SUV 600
410109700
Unavailable
15
Tachometer
515175340
Unavailable
17
Speedometer, Kmh
515175335
Unavailable
Speedometer, Mph
515175336
Unavailable
18
Lock Washer
414806700
Unavailable
19
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
20
O-Ring
414807100
Unavailable
21
Female Terminal
561503100
Unavailable
22
Case Holder
414806500
Unavailable
23
Speedometer Cable
414761400
Unavailable
27
Spring
517168600
Unavailable
28
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
29
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
32
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
33
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
34
Nut
414806900
Unavailable
40
Female Housing
409204300
Unavailable
41
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
42
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
43
Fuse Holder
409004000
Unavailable
44
Adjuster Screw Ass'y | Includes 44 - 46.
415100700
Unavailable
45
Screw M4 x 40
243044040
Unavailable
46
Handle
572106600
Unavailable
47
Projector Nut
572078600
Unavailable
48
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
49
FLAT WASHER - Call your local BRP dealership
391302100
Unavailable
50
Headlamp Support
517218500
Unavailable
51
Hex. Flange Elastic Nut M5
233251414
Unavailable
53
Headlamp | Includes 42 to 45
410609100
Unavailable
54
Headlamp | Includes 53 to 56
410609300
Unavailable
55
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
56
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
59
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
60
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
61
Female Terminal PACKARD
561503200
Unavailable
62
EXTENSION - Call your local BRP dealership
515175971
Unavailable
65
Visor Plug Harness | Formula Deluxe 380 F.
515175111
Unavailable
66
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
67
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
68
VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).
515163900
Unavailable
69
Not Available As Spare Part - Friction Washer
Unavailable
70
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
71
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
72
VOLTAGE REGULATOR - Call your local BRP dealership
515163800
Unavailable
73
Not Available As Spare Part - Friction Washer
Unavailable
74
Not Available As Spare Part - Friction Washer
Unavailable
75
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
76
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
