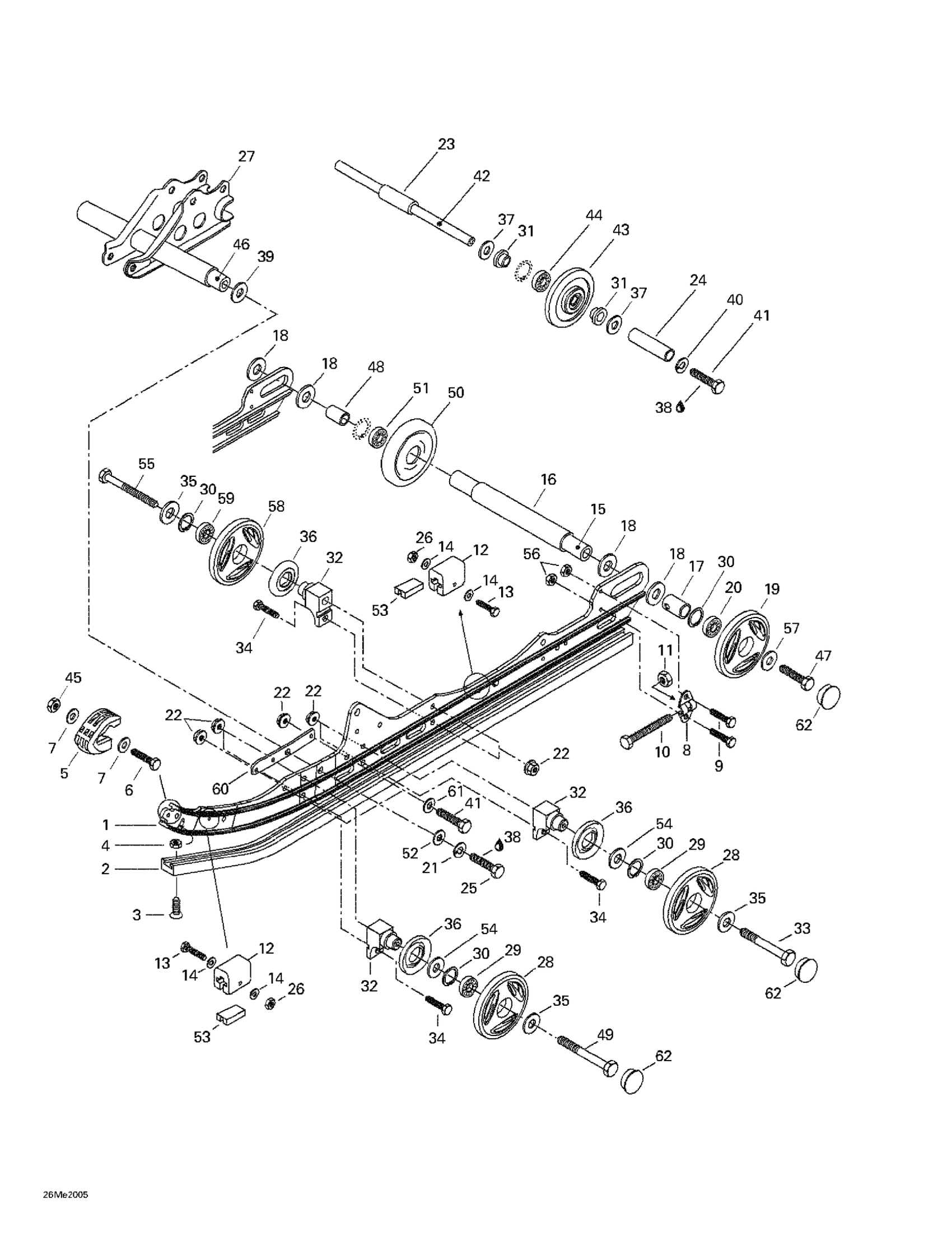

Ski-Doo Formula 500 LC, 2000 Rear Suspension Diagram

#

Description
Price

1

Runner (121")

503188960

Unavailable

2

Runner Shoe

560103300

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570063000

Unavailable

13

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$129.20

16

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

17

Outer Spacer

503189809

$15.35

18

Washer

503180400

$3.37

19

Wheel 165 (Black) | Includes 19 - 20.

503189475

Unavailable

20

Ball Bearing

293350115

Unavailable

21

Lock Washer 12 mm

234120062

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Spacer

503153100

Unavailable

24

External Spacer

503188951

Unavailable

25

Hex. Screw M12 x 40

207124044

Unavailable

26

Elastic Stop Nut M5

232551414

Unavailable

27

Welded Shock Support

503188976

Unavailable

28

WHEEL 135 (BLACK) - Call your local BRP dealership | Includes 28 - 29.

572097602

Unavailable

29

Ball Bearing

293350115

Unavailable

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

Unavailable

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

34

Hex. Screw M8 X 25

207182544

Unavailable

35

Washer

503183100

$3.08

36

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

37

WASHER - Call your local BRP dealership

503154000

$4.20

38

Loctite 243, 10 ml

293800060

$20.77

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

Unavailable

41

Hex. Screw M8 X 30

207183044

Unavailable

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

Unavailable

45

Elastic Stop Nut M5

232551414

Unavailable

46

Lower Axle

503174900

Unavailable

47

Hex. Screw With Nylon

250000019

Unavailable

48

Inner Spacer

503182900

$10.18

49

Hex. Screw M8 X 90

207089044

$2.82

50

Wheel 165" | Includes 670 to 670b

503194127

$49.97

51

Ball Bearing

293350115

Unavailable

52

Flat Washer 12 mm

234021410

$0.68

53

Reinforcement Stopper

572084800

$5.25

54

WASHER - Call your local BRP dealership

503173700

Unavailable

55

Hex. Screw M8 X 80

207088044

Unavailable

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

57

Washer

503183300

$5.68

58

Wheel 135

503191029

Unavailable

59

Ball Bearing

293350115

Unavailable

60

Reinforcement Plate

503189060

Unavailable

61

Flat Washer 8 mm

234081410

Unavailable

62

Wheel Cap

570063600

Unavailable
