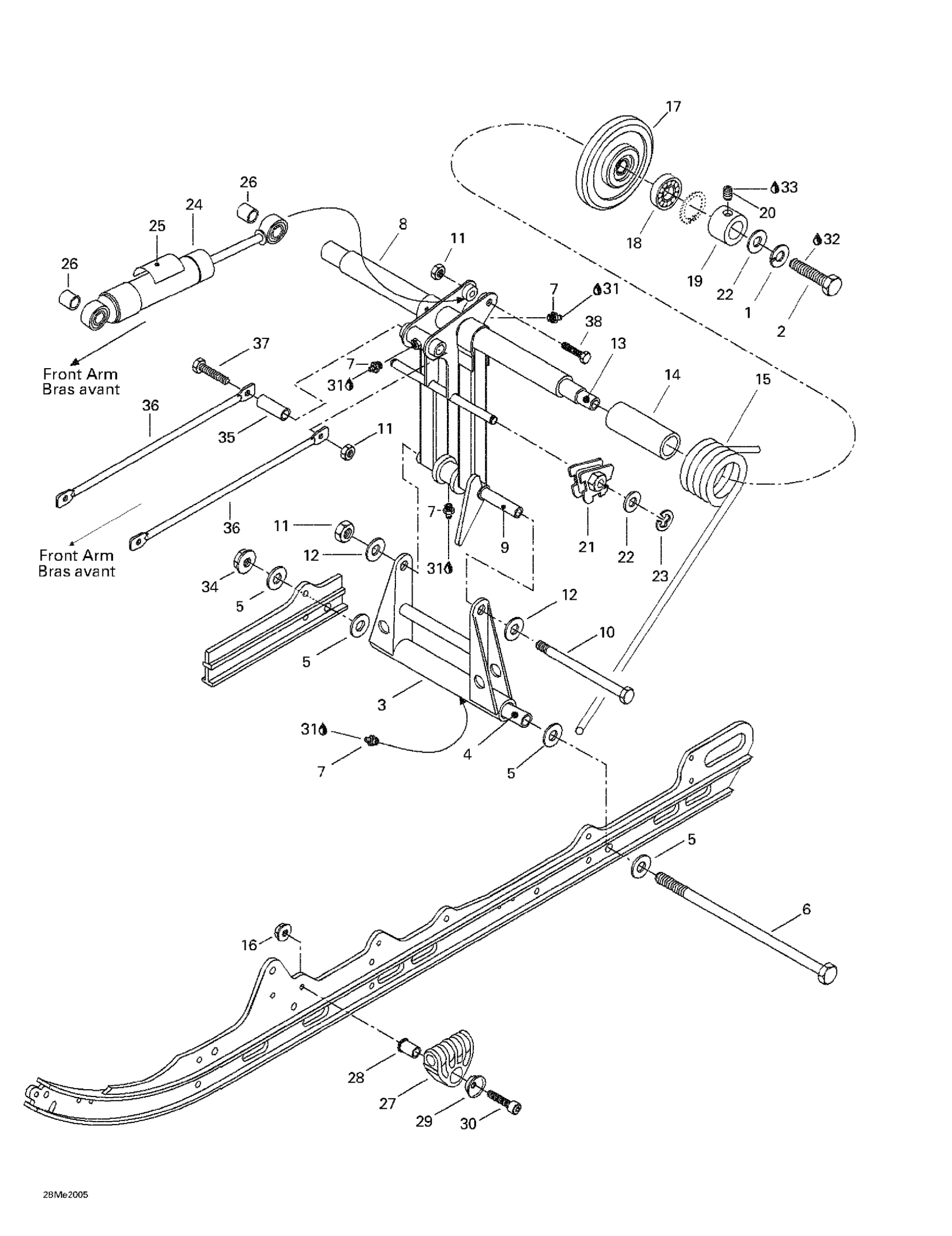

Ski-Doo Formula 500 LC, 2000 Rear Arm Diagram
#
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Screw M10 X 35
207103544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Welded Rear Arm
503189230
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Rear Cross Shaft
503168700
Unavailable
15
RH Spring
503189342
Unavailable
LH Spring
503189343
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
Idler Wheel | Includes 17 - 18.
572091400
Unavailable
18
Ball Bearing
293350115
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
24
Rear Shock
503189172
Unavailable
24
Rear HPG Shock Kit | Includes 25 - 27.
860304900
Unavailable
25
HPG Decal (Europe)
516000182
Unavailable
26
CUSHION - Call your local BRP dealership
414802600
Unavailable
27
Spring Support
503189657
Unavailable
28
Spring Guide Axle
503188934
Unavailable
29
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
30
Socket Head Screw M8 X 45
205084544
Unavailable
31
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
33
Loctite 271, 10 ml
293800005
Unavailable
34
Hex. Flange Elastic Nut M8
233281414
Unavailable
35
Tie Rod Shaft
503158600
Unavailable
36
Tie Rod
503187100
Unavailable
37
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
38
Hex. Screw M8 X 50
207085044
Unavailable
