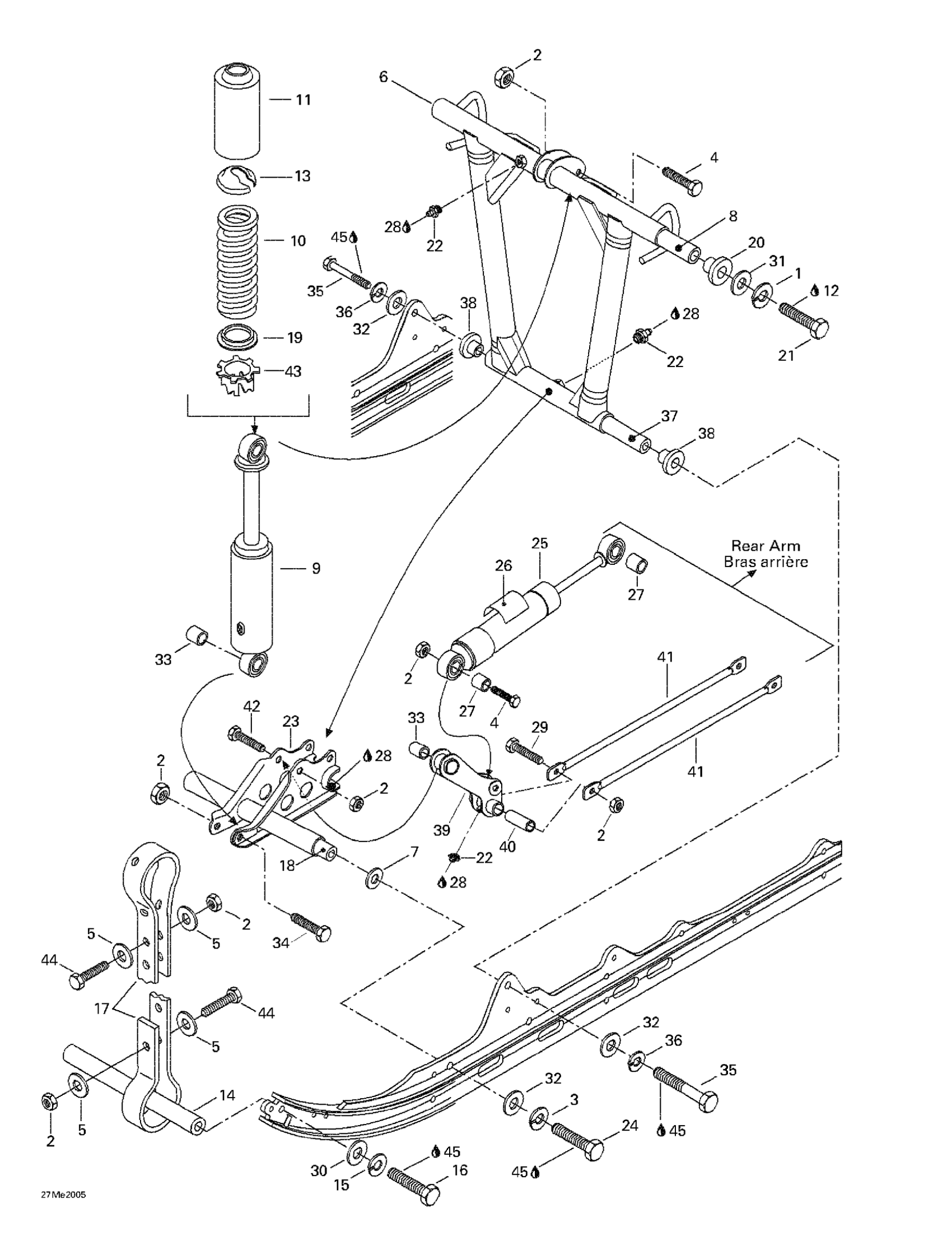

Ski-Doo Formula 500 LC, 2000 Front Arm Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

Unavailable

3

Lock Washer 12 mm

234120602

Unavailable

4

Hex. Screw M8 X 40

207084044

Unavailable

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503171100

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock Central

503189173

Unavailable

10

Shock Spring

415070400

Unavailable

11

Protector

503193663

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77

13

Spring Stopper

706200881

$10.30

14

Axle

503151600

$15.35

15

Lock Washer 8 mm

234181401

Unavailable

16

Hex. Screw M8 X 30

207183044

Unavailable

17

Stopper Strap

503189414

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring Guide

572092600

Unavailable

20

Bushing

503189324

$11.17

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

Unavailable

23

Welded Shock Support

503188976

Unavailable

24

Hex. Screw M12 x 40

207124044

Unavailable

25

Rear Shock

503189172

Unavailable

25

Rear HPG Shock Kit | Includes 25 - 27.

860304900

Unavailable

26

HPG Decal (Europe)

516000182

Unavailable

27

CUSHION - Call your local BRP dealership

414802600

Unavailable

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

30

Flat Washer 8 mm

234081410

Unavailable

31

Flat Washer 10 mm

234001410

Unavailable

32

Flat Washer 12 mm

234021410

$0.68

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.62

35

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

36

Lock Washer 12 mm

234120602

Unavailable

37

SHAFT - Call your local BRP dealership

503189313

Unavailable

38

CUSHION - Call your local BRP dealership

503189323

Unavailable

39

Lever

503158500

Unavailable

40

Tie Rod Shaft

503158600

Unavailable

41

Tie Rod

503187100

Unavailable

42

Hex. Screw M8 X 50

207085044

Unavailable

43

Cam

503169000

Unavailable

44

Hex. Screw M8 X 25

207182544

Unavailable

45

Loctite 271, 10 ml

293800005

Unavailable
