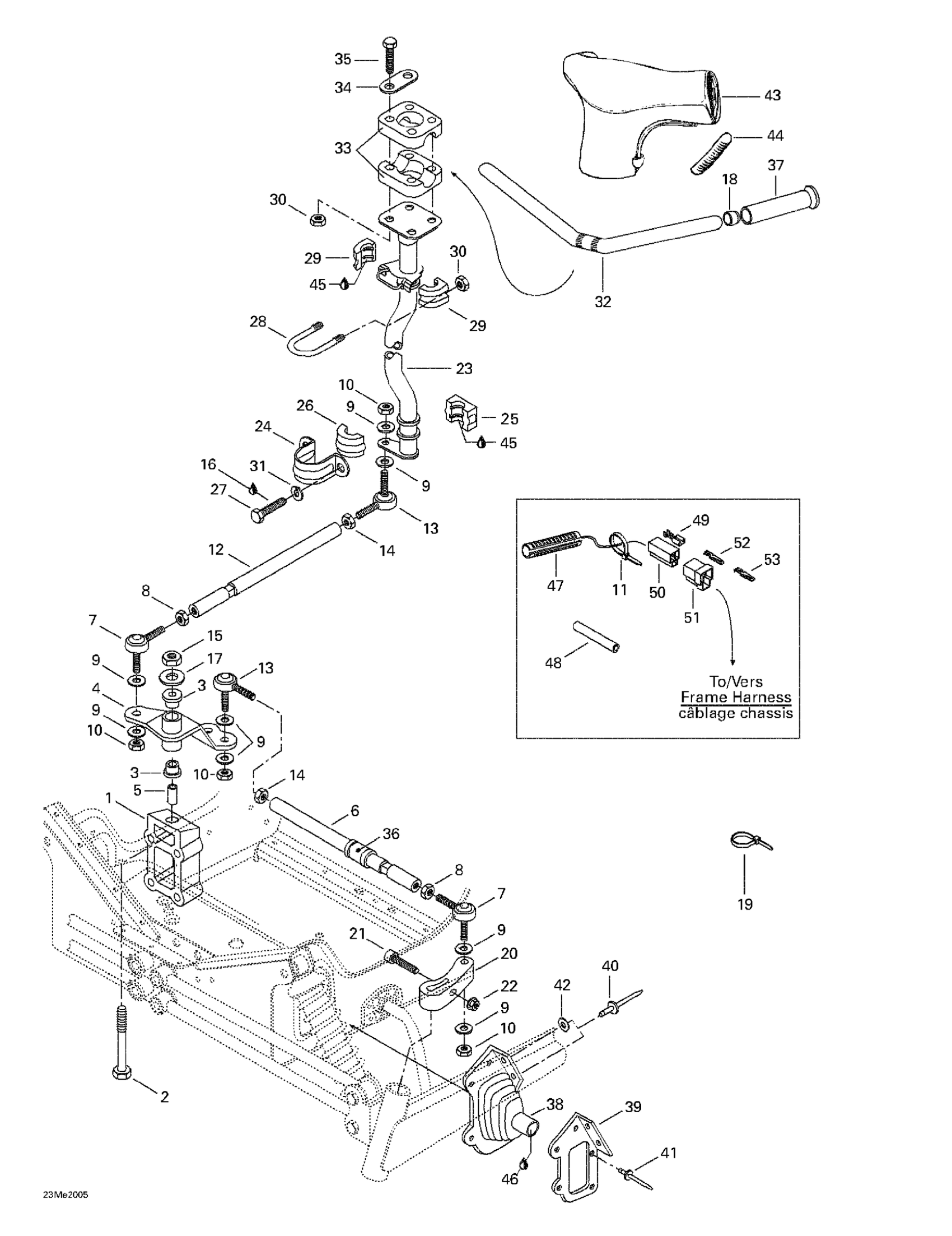

Ski-Doo Formula 500 LC, 2000 Steering System Diagram

#

Description
Price

1

Block

506121400

Unavailable

2

SCREW-HEX.CAP ISO.4014 - Call your local BRP dealership

207028544

Unavailable

3

CUSHION - Call your local BRP dealership

415041100

$5.52

4

Pivot Arm

506133800

Unavailable

5

Pivot

415038000

Unavailable

6

Tie Rod

506136000

Unavailable

7

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

8

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

9

Washer

503175800

$3.26

10

Elastic Flange Nut M10

232501416

Unavailable

11

Tie Wrap 94 mm | 4X4

293750001

$0.83

12

Tie Rod

506110800

Unavailable

13

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

14

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

15

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

16

Loctite 271, 10 ml

293800005

Unavailable

17

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

18

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$0.83

20

RH Steering Arm

506144800

Unavailable

LH Steering Arm

506144900

Unavailable

21

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Main Tube

506151125

Unavailable

24

Retainer Support

517126200

Unavailable

25

Bushing

572064400

Unavailable

26

BUSHING - Call your local BRP dealership

572064500

Unavailable

27

Hex. Screw M8 X 20

207182044

$0.61

28

U-clamp | X

506060600

Unavailable

29

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

30

Hex. Elastic Stop Nut M8

232581414

Unavailable

31

Lock Washer 8 mm

234181401

Unavailable

32

Handlebar

506125900

Unavailable

33

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

34

Stiffner

709400509

Unavailable

35

Hex. Screw M8 X 55

207085544

$1.62

36

BUSHING - Call your local BRP dealership

572036500

Unavailable

37

RH Grip 6-1/2"

506151530

Unavailable

38

RH Tie Rod Cap

570024800

Unavailable

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

39

RH Cap Plate

517241200

Unavailable

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

40

Pop Rivet 3/16"

390906800

Unavailable

41

Pop Rivet 3/16"

390402200

$0.26

42

Washer

517124300

Unavailable

43

Steering Padding

572084100

Unavailable

44

Key Way

572072400

Unavailable

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

46

Grease, Super Lube

293550030

Unavailable

47

Heating Grip

515175573

Unavailable

48

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

49

Female Terminal

561503100

Unavailable

50

Female Housing

409204300

Unavailable

51

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

52

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable
