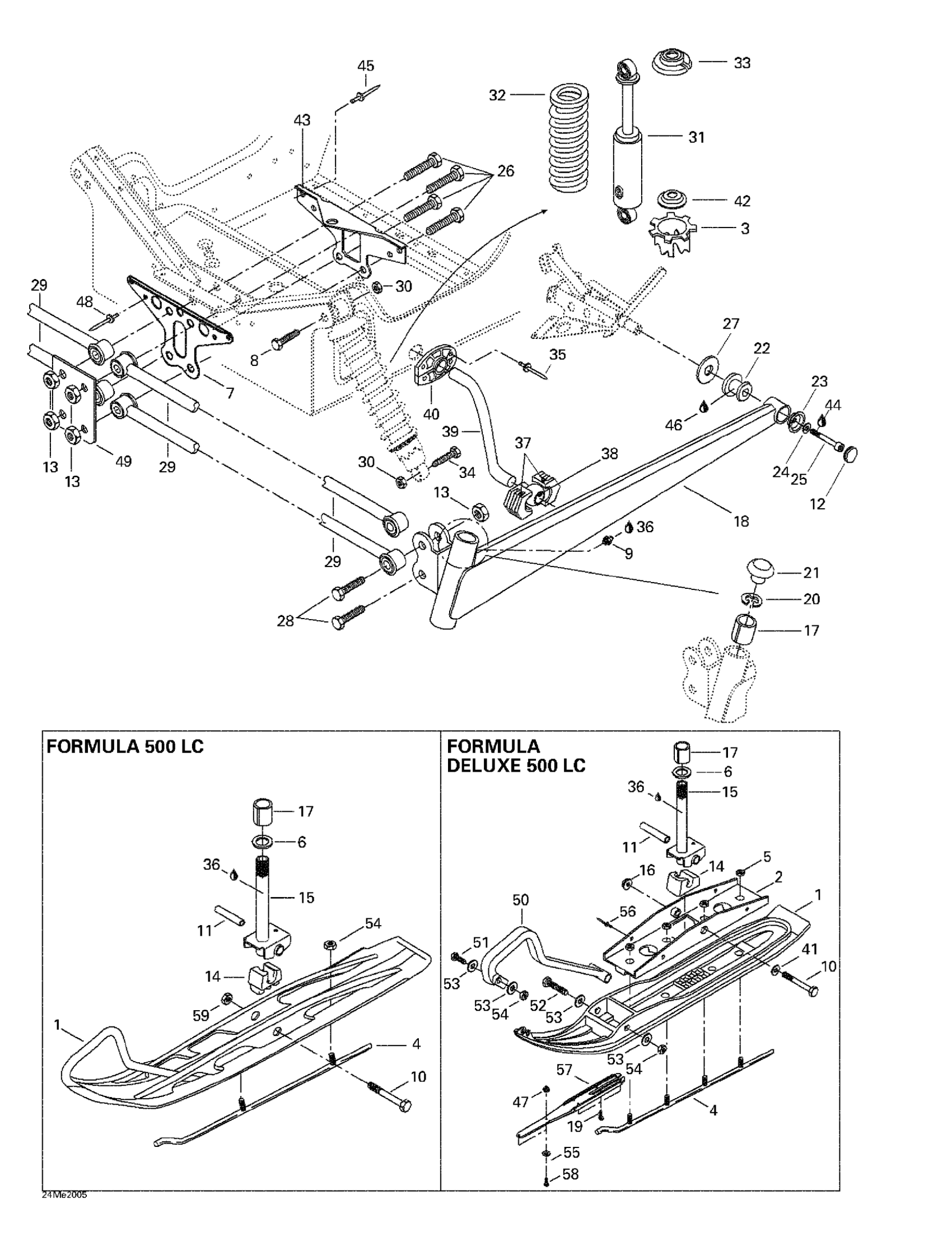

Ski-Doo Formula 500 LC, 2000 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

Unavailable

Ski

505070325

Unavailable

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

Adjustment Cam

505073625

Unavailable

4

Carbide Runner Kit | Includes 5 to 6, US/CAN

860502300

Unavailable

4

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.68

6

WASHER - Call your local BRP dealership

505070004

Unavailable

7

Front Link Plate

517254800

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Grease Fitting

408200700

Unavailable

10

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

11

Spacer

505070323

Unavailable

Spacer

506133300

Unavailable

12

CAP - Call your local BRP dealership

572045900

Unavailable

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

Ski Stopper

505070324

Unavailable

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

15

Ski Leg

505070321

Unavailable

Ski Leg

506151234

Unavailable

16

Hex. Flange Elastic Nut M10

233201414

$1.26

17

Cushion

505070003

Unavailable

18

RH Swing Arm (Silver)

505070380

Unavailable

LH Swing Arm (Silver)

505070381

Unavailable

19

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$8.97

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

Unavailable

24

Lock Washer 8 mm

234181401

Unavailable

25

Socket Head Screw M8 X 25

205082544

Unavailable

26

Hex. Screw M12 x 100

230020044

Unavailable

27

WASHER - Call your local BRP dealership

503146700

$4.42

28

Hex. Screw M12 x 50

207025044

Unavailable

29

Arm Ass'y (42")

580649700

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.68

31

Shock

505070012

Unavailable

32

Spring (Yellow)

415075900

Unavailable

Shock Spring (Black) | Formula DLX 500 LC.

415035900

Unavailable

33

Spring Stopper

706200881

$10.30

34

Hex. Screw M10 X 55

207005544

$1.85

35

Pop Rivet 3/16"

390402300

Unavailable

36

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

37

Block Sliding

572069800

Unavailable

38

Ball Joint | Touring 500 F.

505070068

Unavailable

39

Stabilisator | Touring 500 F.

505070069

Unavailable

40

BUSHING - Call your local BRP dealership

505070139

Unavailable

41

Washer

732900049

Unavailable

42

Spring Guide

503187500

Unavailable

43

Rear Link Plate

517254900

Unavailable

44

Loctite 243, 10 ml

293800060

$20.77

45

Avex Rivet

390909200

Unavailable

46

Grease, Super Lube

293550030

Unavailable

47

Hex. Flange Elastic Nut M5

233251414

Unavailable

48

Rivet pop 1/4"

390404900

Unavailable

49

Support

518306700

Unavailable

50

Black, Handle

505070963

Unavailable

51

Hex. Screw M8 X 50

207085044

Unavailable

52

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

53

Flat Washer 8 mm

234081410

Unavailable

54

Hex. Elastic Stop Nut M8

232581414

Unavailable

55

Flat Washer 6 mm

234061410

Unavailable

56

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

57

PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership | GT

505070232

Unavailable

58

Socket Head Screw M5 x 25 (Europe) | 500 F.

250000015

Unavailable

59

Elastic Locking Nut M10 X 1.5

233601416

$1.68
