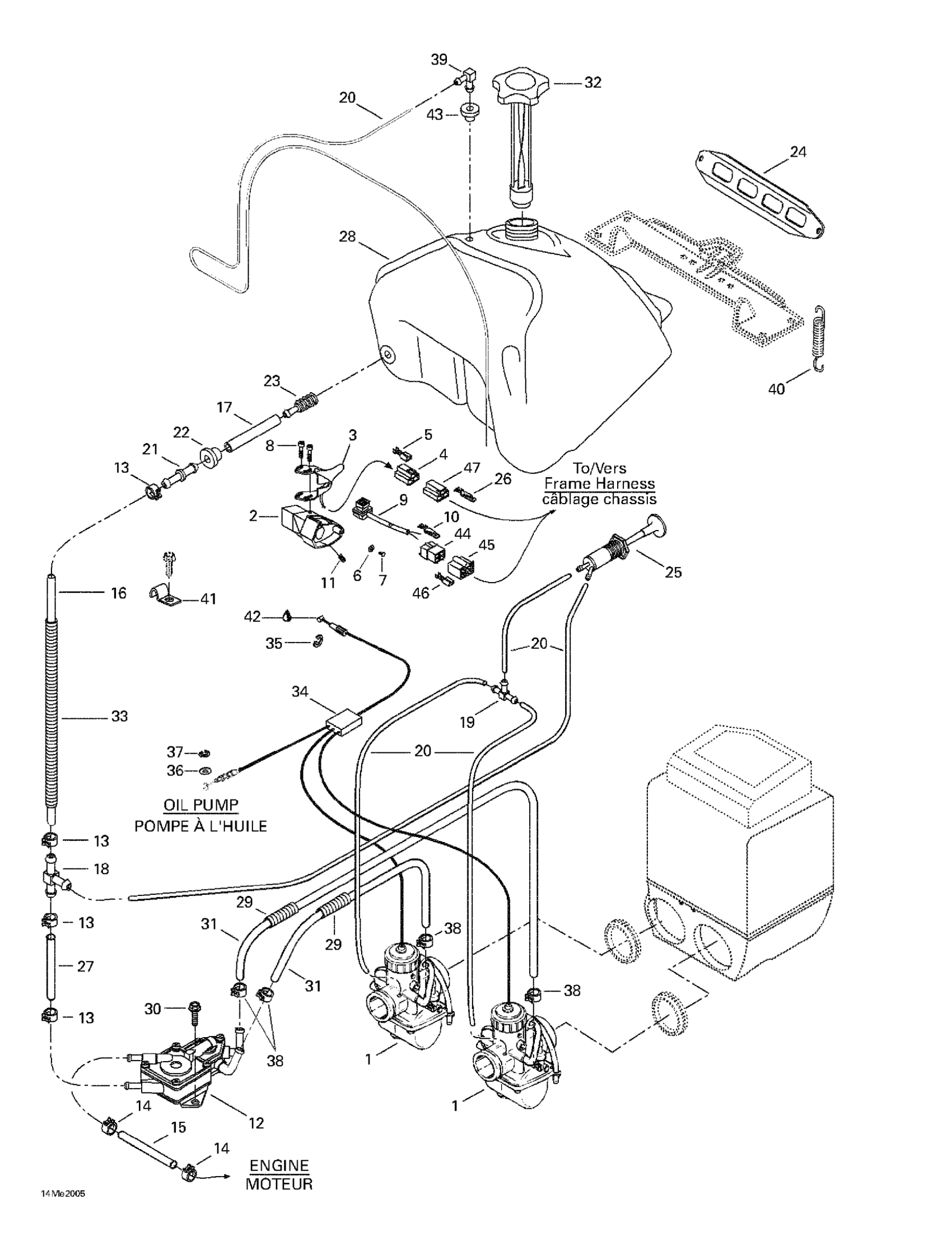

Ski-Doo Formula 500 LC, 2000 Fuel System Diagram

#

Description
Price

1

Carburetor VM 38-431 (PTO)

403138608

Unavailable

Carburetor VM 38-432 (MAG)

403138609

Unavailable

2

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

3

Handle Ass'y

512059348

Unavailable

4

Female Terminal Housing (3 circuits)

409008500

Unavailable

5

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

6

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

7

Screw

414473200

$3.69

8

Flange Screw

732601143

$4.02

9

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

10

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

11

Socket Set Screw M8 X 10

414440800

$4.00

12

FUEL PUMP ASS'Y - Call your local BRP dealership

403801100

Unavailable

13

Spring Clamp

414554800

$0.83

14

Spring Clamp

414415200

$0.83

15

Hose

219704549

Unavailable

16

Polyurethane Hose 10000Mm Long

219704410

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

T-fitting

414222500

$1.33

19

T-Fitting

414222400

Unavailable

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

21

Male Connector

414518500

$3.50

22

Grommet

570045500

Unavailable

23

Fuel Filter

414865700

$8.39

24

Fuel Tank Bracket

517249200

Unavailable

25

Primer

415060500

Unavailable

26

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

27

Polyurethane Hose 10000Mm Long

219704410

Unavailable

28

Fuel Tank

572108900

Unavailable

29

Tubing 10 MM 1000MM Long

219704407

Unavailable

30

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

31

Tube

415117800

Unavailable

32

Fuel Tank Cap

572161200

Unavailable

33

Tubing 10 MM 1000MM Long

219704407

Unavailable

34

Throttle Cable and Housing (38 mm)

414968801

Unavailable

35

Circlip

414274500

Unavailable

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

Spring Clamp

414420700

Unavailable

39

Male Connector

414814100

$2.18

40

SPRING - Call your local BRP dealership

517182100

Unavailable

41

CLIP - Call your local BRP dealership

415018200

$2.89

42

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

43

Grommet

513032908

$8.74

44

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

45

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

46

Female Terminal PACKARD

561503200

Unavailable

47

Male Terminal Housing (3 circuits)

409008600

Unavailable
