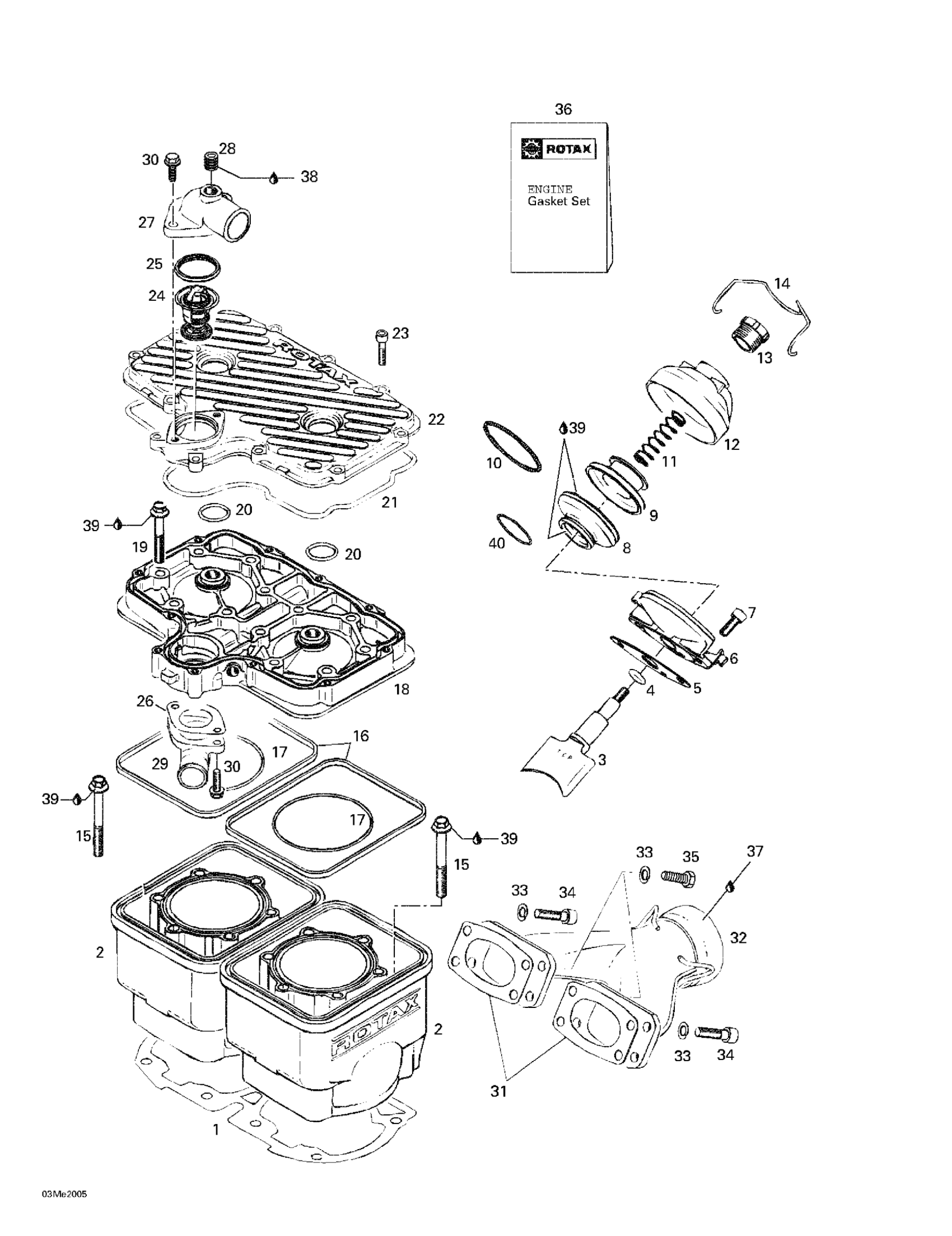

Ski-Doo Formula 500 LC, 2000 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Gasket Double 0.4 mm

420931361

Unavailable

2

Cylinder With Sleeve Ass'y

420923617

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854300

Unavailable

4

O-Ring

420430110

$4.15

5

Gasket

420250239

$6.42

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

7

Socket Head Screw M6 x 16

420241237

$2.12

8

Exhaust Bellows

420260723

$40.27

9

Exhaust Valve This part replaces 290253257.

420854449

$34.30

10

Hose Spring This part replaces 420239048.

420939281

$6.88

11

Spring This part replaces 420239944.

420239954

$7.09

12

Valve Cover

420911552

$36.54

13

Adjuster Screw

420241221

$12.15

14

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

15

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$5.91

16

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

17

O-Ring | Grand Touring 500.

420831792

$14.90

18

Cylinder Head (Silver)

420923167

Unavailable

19

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

20

O-Ring

420430782

$5.06

21

O-Ring

420931260

Unavailable

22

Cylinder Head Cover (Silver)

420923623

Unavailable

23

Socket Head Screw M6 X 25

205062544

$1.01

24

Thermostat This part replaces 414834100.

420922519

$57.43

25

SEALING RING - Call your local BRP dealership

420931270

Unavailable

26

Gasket

420850338

$9.97

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922061

Unavailable

28

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

29

Bent Outlet Socket

420922480

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

31

Gasket

420850535

Unavailable

32

Exhaust Manifold

420973228

Unavailable

33

Lock Washer 8 mm

234181401

$0.87

34

Socket Head Screw M8 X 30

205083044

$1.06

35

Hex. Screw M8 X 25

207182544

$0.85

36

Gasket Set

420994227

Unavailable

37

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85

38

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

39

Dow Corning 111, 150 g

413707000

$59.99

40

Hose Spring This part replaces 420838253.

420838255

$7.01
