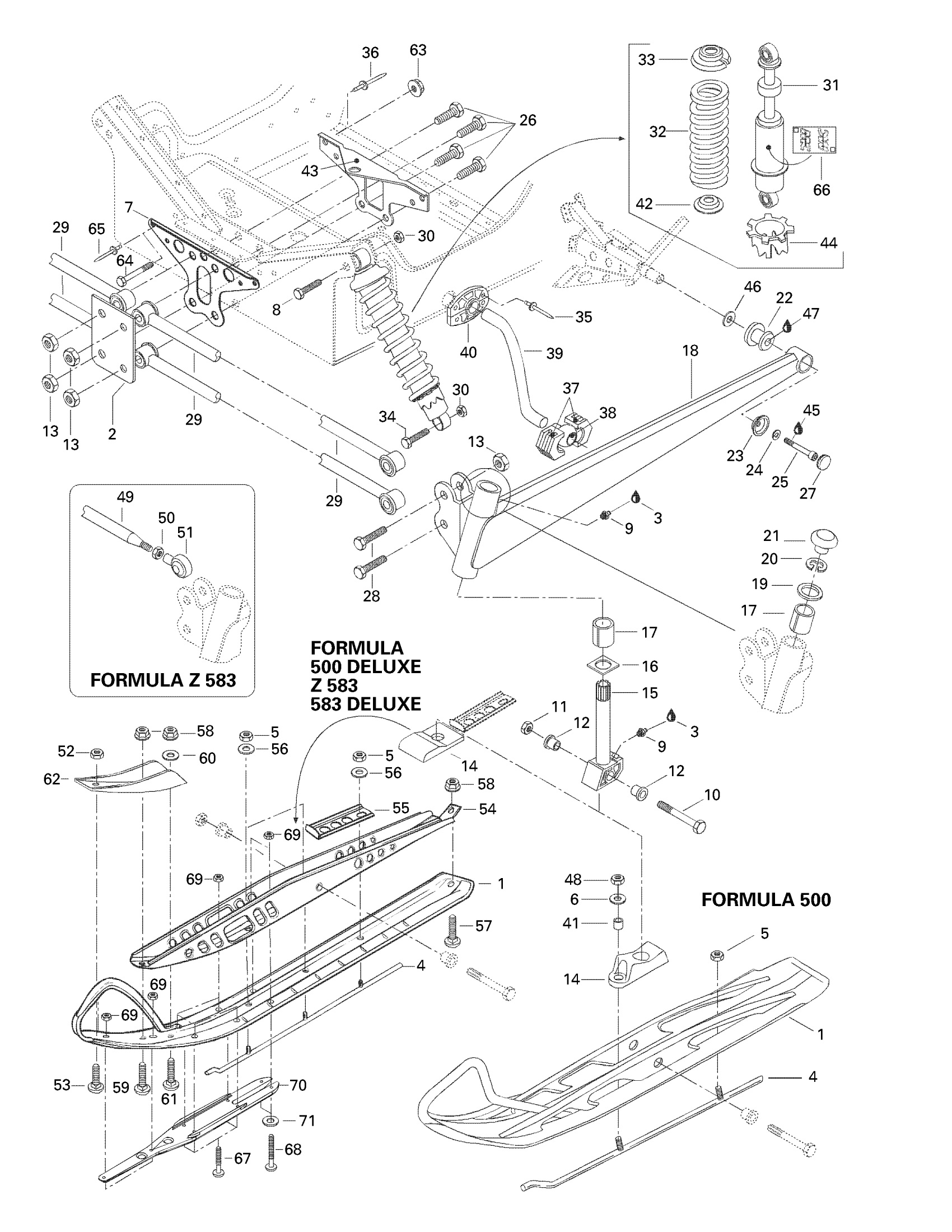

Ski-Doo Formula 500 Deluxe, 1998 Front Suspension And Ski Diagram
#
1
Ski (Welded) | Formula 500.
505067810
Unavailable
Ski Plastic | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
572085700
Unavailable
2
Support
518306700
Unavailable
3
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
4
Carbide Runner | Includes 48 - 49. Formula Deluxe 500.
505066320
Unavailable
Runner Carbide (5) | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
505067320
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
7
Front Link Plate
517254800
Unavailable
8
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
9
Grease Fitting
408200700
Unavailable
10
Hex. Screw M12
732601176
Unavailable
11
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
12
CUSHION - Call your local BRP dealership
414530600
Unavailable
13
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
14
Ski Stopper
570053500
Unavailable
Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
570046800
Unavailable
15
Ski Leg | Includes 15 - 16.
506144500
Unavailable
16
Wear Plate
506081200
Unavailable
17
Cushion
572069900
Unavailable
18
LH Swing Arm | Formula 500. Formula 500 Deluxe.
506134810
Unavailable
LH Swing Arm | Formula Z 583. Formula 583 Deluxe.
506135010
Unavailable
RH Swing Arm | Formula 500. Formula 500 Deluxe.
506134710
Unavailable
RH Swing Arm | Formula Z 583. Formula 583 Deluxe.
506134910
Unavailable
19
Thrust Washer
506080900
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
23
Cup | Package Hunter
705007171
Unavailable
24
Lock Washer 8 mm
234181401
Unavailable
25
Socket Head Screw M8 X 25
205082544
Unavailable
26
Hex. Screw M12 x 100
732601113
Unavailable
27
CAP - Call your local BRP dealership
572045900
Unavailable
28
Hex. Screw M12 x 50
222025075
Unavailable
29
Arm Ass'y (42")
580649700
Unavailable
31
Front Shock
415094500
Unavailable
32
Spring (Red)
414976100
Unavailable
Spring (Yellow)
415075900
Unavailable
35
Pop Rivet 3/16"
390402300
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Block Sliding
572069800
Unavailable
38
Ball Joint
506127300
Unavailable
Ball Joint
503142200
Unavailable
39
Stabilisator
506134100
Unavailable
Stabilisator
506131800
Unavailable
40
Half-Bushing | Formula Deluxe 500.
572077600
Unavailable
Half-Bushing
572029900
Unavailable
41
BUSHING - Call your local BRP dealership
506117300
Unavailable
43
Rear Link Plate
517254900
Unavailable
44
Cam
503169000
Unavailable
47
Grease, Super Lube
293550030
Unavailable
48
Hex. Elastic Stop Nut M8
232581414
Unavailable
49
Arm Ass'y | Formula Z 583.
580649800
Unavailable
50
Hex. Jam Nut M14
232170411
Unavailable
51
RH Ball Joint | Formula Z 583. Formula Z 670.
415042500
Unavailable
52
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
53
Carriage Bolt M6 X 25
207762544
Unavailable
54
Ski Support | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
505068100
Unavailable
55
Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
505067509
Unavailable
56
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
58
Hex. Flange Elastic Nut M8
233281414
Unavailable
59
Carriage Bolt M8 X 30
207783044
Unavailable
60
Not Available As Spare Part - Friction Washer
Unavailable
61
Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
222284065
Unavailable
62
Ski Reinforcement | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
506143800
Unavailable
63
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
64
Hex. Screw M6 X 55
207065544
Unavailable
65
Rivet pop 1/4"
390404900
Unavailable
66
Shock Decal
418001500
Unavailable
67
SCREW M5 X 30 - Call your local BRP dealership
205453046
Unavailable
68
Allen Screw M5 x 40 | Formula 500 Deluxe. Formula 583 Deluxe.
732601274
Unavailable
69
Elastic Stop Nut M5
232551414
Unavailable
70
Corrector | Formula 500 Deluxe. Formula 583 Deluxe.
572095200
Unavailable
71
Flat Washer 6 mm
234061410
Unavailable
