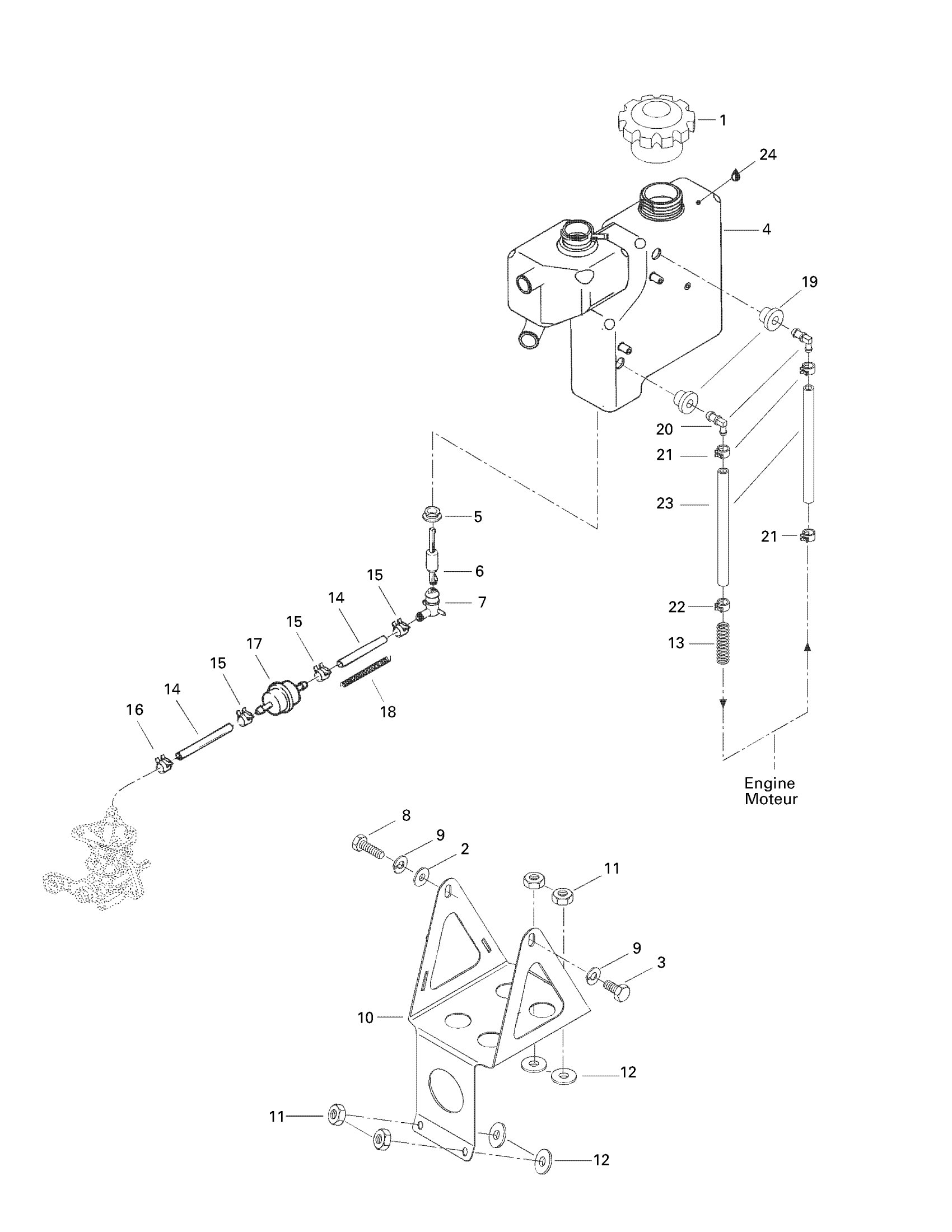

Ski-Doo Formula 500 Deluxe, 1998 Oil Tank And Support Diagram

#

Description
Price

1

CAP - Call your local BRP dealership

519000044

Unavailable

2

Flat Washer

224061121

$0.44

3

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

4

Coolant Tank

572076900

Unavailable

5

Insulating Ring

570023000

Unavailable

6

Float

414681900

Unavailable

7

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

8

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

9

Lock Washer M6, Black

234161471

$0.52

10

Oil Reservoir Support

517278900

Unavailable

11

Elastic Stop Nut M6

232561414

Unavailable

12

Rubber Spacer

414454400

$2.40

13

Spring

415044100

Unavailable

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

15

Spring Clamp

414415200

$0.83

16

Spring Clamp

414420700

Unavailable

17

Filter

414536500

$3.25

18

SPRING_COMPRESSION - Call your local BRP dealership

414940300

Unavailable

19

Grommet | Europe

707800347

Unavailable

20

Elbow Fitting

414523600

$3.99

21

Spring Clamp

414655700

Unavailable

22

SPRING CLIP - Call your local BRP dealership

408801100

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable
