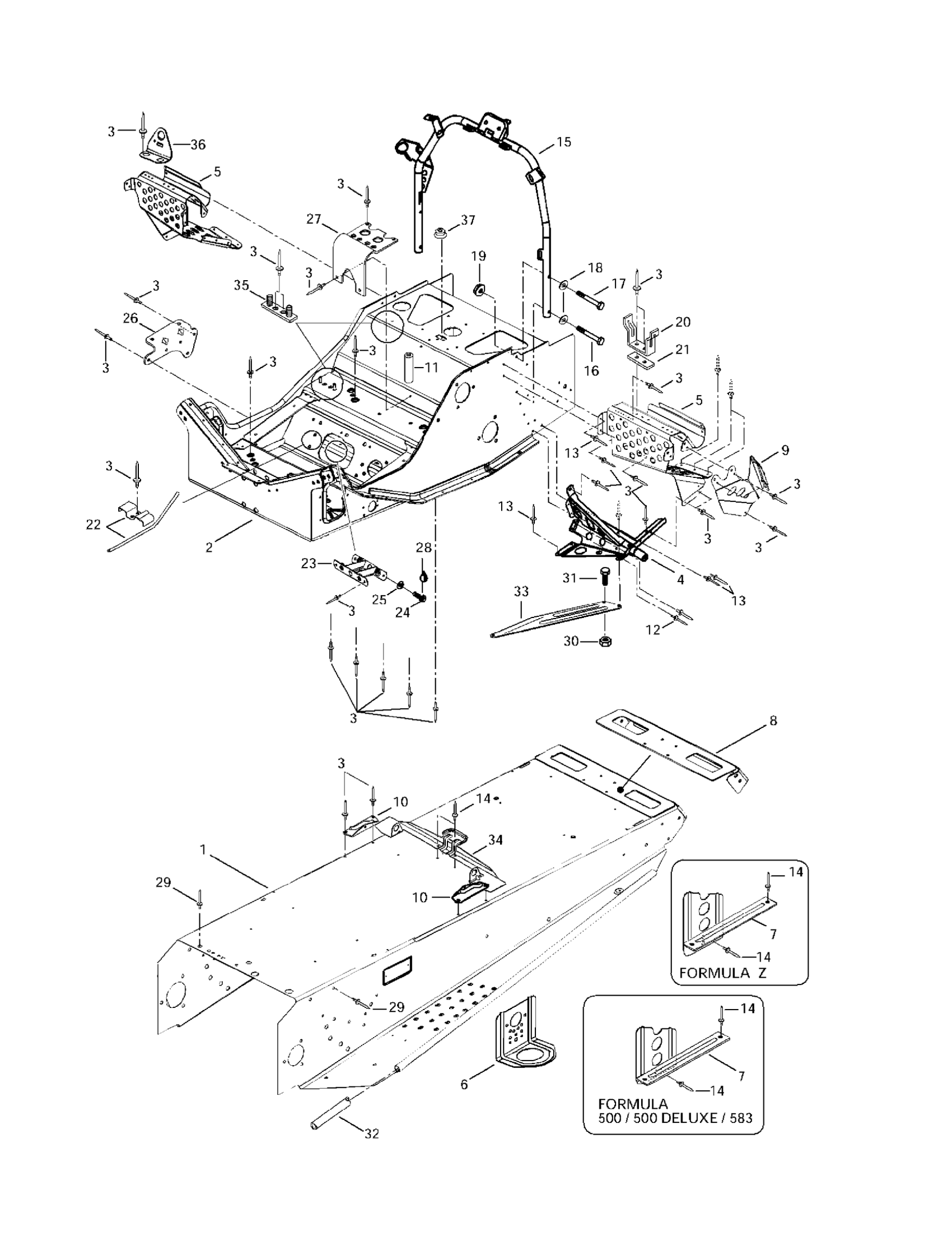

Ski-Doo Formula 500 Deluxe, 1997 Frame And Accessories Diagram
#
1
Tunnel | Formula 500. Formula Z. Formula 583.
518316848
Unavailable
Tunnel | Formula 500 Deluxe.
518316809
Unavailable
2
Front Member | Formula 500. Formula 500 Deluxe. Formula 583.
518316242
Unavailable
Front Member | Formula Z.
518316243
Unavailable
RH Support
518316703
Unavailable
5
RH Front Footrest
518313804
Unavailable
LH Front Footrest
518313805
Unavailable
6
Front Bracket
518312910
Unavailable
7
LH Rear Bracket
518316723
Unavailable
LH Rear Bracket | Formula Z.
518316749
Unavailable
RH Rear Bracket
518316724
Unavailable
RH Rear Bracket | Formula Z.
518316750
Unavailable
8
Cap-End
518310211
Unavailable
9
Upper Plate L.H
518308714
Unavailable
Upper Plate R.H
518308715
Unavailable
10
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
11
Polyurethane Hose 10000Mm Long
219704410
Unavailable
12
Avex Rivet
390909200
Unavailable
14
Pop Rivet 3/16"
390402400
Unavailable
15
Handle Steering Support
518309200
Unavailable
18
Flat Washer 6 mm
234061410
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Guide Rope
518313700
Unavailable
23
Reinf. Plate
518304741
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
28
Loctite 271, 10 ml
293800005
Unavailable
29
Pop Rivet 3/16"
390402300
Unavailable
30
Hex. Flange Elastic Nut M5
233251414
Unavailable
31
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
32
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
33
RH Reinforcement Plate
518316709
Unavailable
LH Reinforcement. Plate
518316710
Unavailable
34
Seat Bracket
518310208
Unavailable
35
Support Plate
518315300
Unavailable
36
Valve Bracket | MX Z 670 HO.
518310206
Unavailable
