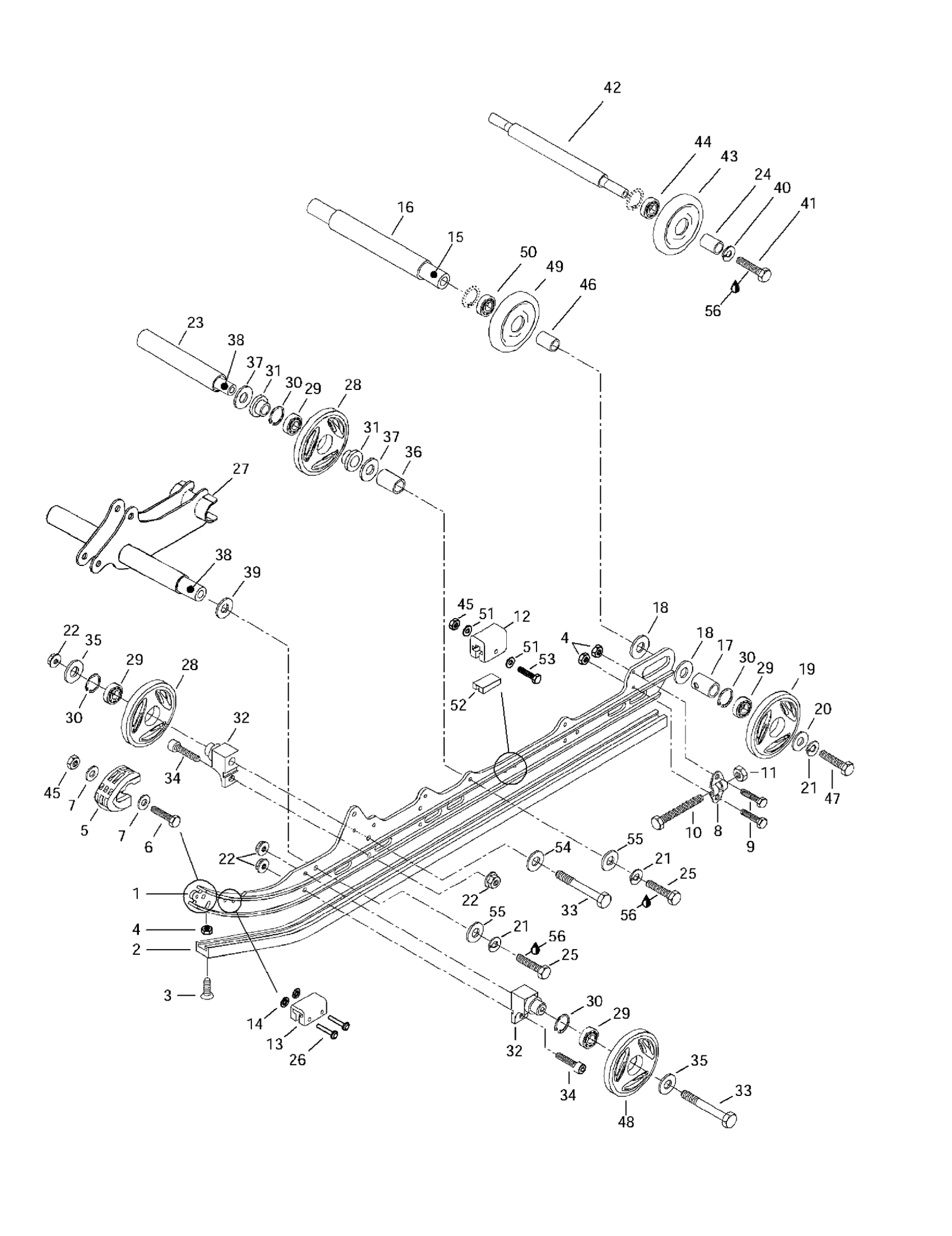

Ski-Doo Formula 500 Deluxe, 1997 Rear Suspension Diagram

#

Description
Price

1

Runner 121" | Formula 500. Formula 500 Deluxe. Formula 583.

503166600

Unavailable

2

Slide Shoe

605355362

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570063000

Unavailable

13

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

14

Push Nut

389804300

$0.43

15

Rear Axle

503167900

$129.20

16

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

17

Outer Spacer

503189809

$15.35

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Wheel 165 (Red) | Formula 500. Formula 500 Deluxe. Formula 583.

570045323

Unavailable

20

Washer

503183300

$5.68

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Spacer

503153100

Unavailable

24

Spacer

572048300

Unavailable

25

Hex. Screw M10 X 35

207103544

Unavailable

26

Rivet 3/16 x 1-3/8 | Formula 500. Formula 500 Deluxe. Formula 583.

390908700

Unavailable

27

Welded Shock Support

503167500

Unavailable

28

Wheel 135 | Includes 18 to 19

503190797

Unavailable

29

Ball Bearing

293350115

Unavailable

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

Unavailable

32

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

Unavailable

33

Hex. Screw M8 X 80

207088044

Unavailable

34

Socket Head Screw M8 X 25

205082544

Unavailable

35

Washer

503183100

$3.08

36

Spacer | Formula 500. Formula 500 Deluxe.

503151000

Unavailable

37

WASHER - Call your local BRP dealership

503154000

$4.20

38

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

39

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

40

Lock Washer 8 mm

234181401

Unavailable

41

Hex. Screw M8 X 30

207183044

Unavailable

42

Wheel Support Axle

503153600

Unavailable

43

Idler Wheel | Includes 48 - 49.

572043500

Unavailable

44

Ball Bearing

405404600

$24.58

45

Elastic Stop Nut M5

232551414

Unavailable

46

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

47

Hex. Screw With Nylon

250000019

Unavailable

48

Idler Wheel 135 (Red) | Formula 500. Formula 500 Deluxe. Formula 583.

570045223

Unavailable

49

Wheel 165" | Includes 670 to 670b

503194127

$49.97

50

Ball Bearing

293350115

Unavailable

51

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

52

Reinforcement Stopper

572084800

$5.25

53

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

54

Flat Washer 8 mm

234081410

Unavailable

55

Flat Washer 10 mm

234001410

Unavailable

56

Loctite 271, 10 ml

293800005

Unavailable
