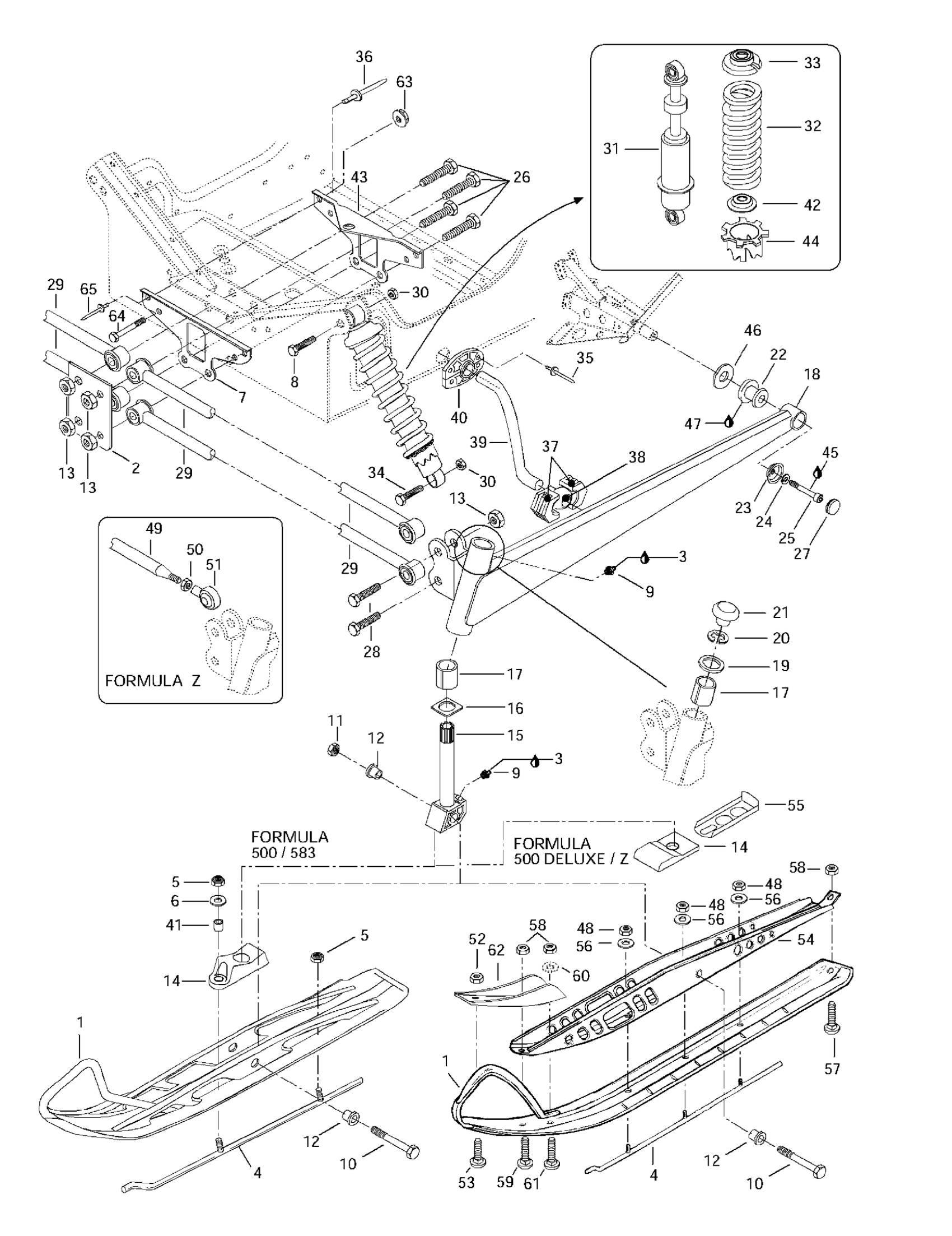

Ski-Doo Formula 500 Deluxe, 1997 Front Suspension And Ski Diagram
#
1
Ski (Welded) | Formula 500.
505067810
Unavailable
Ski Plastic | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
572085700
Unavailable
2
Support
518306700
Unavailable
3
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
4
Carbide Runner | Includes 48 - 49. Formula Deluxe 500.
505066320
Unavailable
Runner Carbide (5) | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
505067320
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
7
Front Link Plate
517254800
Unavailable
8
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
9
Grease Fitting
408200700
Unavailable
10
Hex. Screw M12
732601176
Unavailable
11
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
12
CUSHION - Call your local BRP dealership
414530600
Unavailable
13
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
14
Ski Stopper
570053500
Unavailable
Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
570046800
Unavailable
15
Ski Leg
506139200
Unavailable
16
Wear Plate
506081200
Unavailable
17
Cushion
572069900
Unavailable
18
LH Swing Arm | Formula 500. Formula 500 Deluxe.
506134810
Unavailable
LH Swing Arm | Formula Z 583. Formula 583 Deluxe.
506135010
Unavailable
LH Swing Arm | Touring LE. Touring SLE.
506133610
Unavailable
RH Swing Arm | Formula 500. Formula 500 Deluxe.
506134710
Unavailable
RH Swing Arm | Formula Z 583. Formula 583 Deluxe.
506134910
Unavailable
RH Swing Arm | Touring LE. Touring SLE.
506133710
Unavailable
19
Thrust Washer
506080900
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
23
Cup | Package Hunter
705007171
Unavailable
24
Lock Washer 8 mm
234181401
Unavailable
25
Socket Head Screw M8 X 25
205082544
Unavailable
26
Hex. Screw M12 x 100
732601113
Unavailable
27
CAP - Call your local BRP dealership
572045900
Unavailable
28
Hex. Screw M12 x 50
222025075
Unavailable
29
Arm Ass'y (42")
580649700
Unavailable
31
Front Shock
415040200
Unavailable
32
Spring (Red)
414976100
Unavailable
35
Pop Rivet 3/16"
390402300
Unavailable
36
Avex Rivet
390909200
Unavailable
37
Block Sliding
572069800
Unavailable
38
Ball Joint
506127300
Unavailable
Ball Joint
503142200
Unavailable
39
Stabilisator
506134100
Unavailable
Stabilisator
506131800
Unavailable
40
Half-Bushing | Formula Deluxe 500.
572077600
Unavailable
Half-Bushing
572029900
Unavailable
41
BUSHING - Call your local BRP dealership
506117300
Unavailable
43
Rear Link Plate
517254900
Unavailable
44
Cam
503169000
Unavailable
47
Grease, Super Lube
293550030
Unavailable
49
Arm Ass'y | Formula Z 583.
580649800
Unavailable
50
Hex. Jam Nut M14
232170411
Unavailable
51
RH Ball Joint | Formula Z 583. Formula Z 670.
415042500
Unavailable
52
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
53
Carriage Bolt M6 X 25
207762544
Unavailable
54
Ski Support | Formula Z.
505067500
Unavailable
Ski Support | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
505068100
Unavailable
55
Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
505067509
Unavailable
56
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
58
Hex. Flange Elastic Nut M8
233281414
Unavailable
59
Carriage Bolt M8 X 30
207783044
Unavailable
60
Not Available As Spare Part - Friction Washer
Unavailable
61
Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.
222284065
Unavailable
62
Ski Reinforcement | Formula Z.
505063700
Unavailable
Ski Reinforcement | Formula 500 Deluxe.
505068000
Unavailable
63
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
64
Hex. Screw M6 X 55
207065544
Unavailable
65
Not Available As Spare Part - Friction Washer
Unavailable
