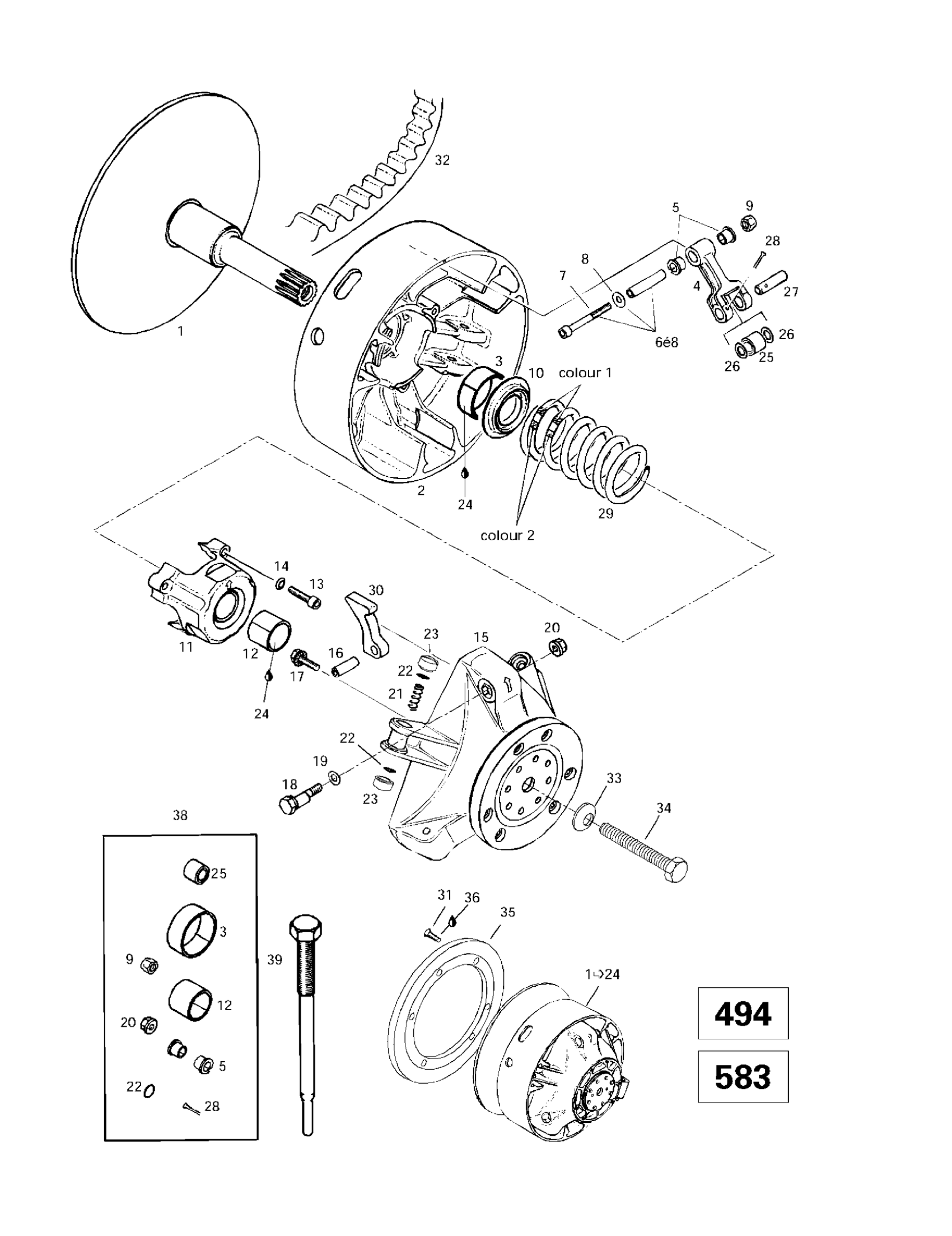

Ski-Doo Formula 500 Deluxe, 1997 Drive Pulley (494, 583) Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 24. Formula 500. Formula 500 Deluxe.

417215900

Unavailable

Drive Pulley Ass'y. (Incl. 38) | Formula Z. Formula 583.

417215700

Unavailable

1

Inner Half Ass'y | Formula 500. Formula 500 Deluxe.

417003500

Unavailable

Inner Half Ass'y | Formula Z 583. Formula 583 Deluxe.

417003502

Unavailable

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417003700

Unavailable

3

Bushing

417004201

Unavailable

4

Lever Ass'y | Includes 5 - 6.

417003800

Unavailable

5

Bushing

417004305

Unavailable

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

$1.68

8

Flat Washer 6 mm

234061410

Unavailable

9

Elastic Stop Nut M6

232561414

Unavailable

10

Spring Seat

417005000

Unavailable

11

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

12

Bushing

417004501

Unavailable

13

Allen Screw M6 x 40

222964066

Unavailable

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

Gouvernor Cup Ass'y

417004700

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$3.86

20

Hex. Flange Nut M6

233061414

Unavailable

21

Spring

417005700

Unavailable

22

O-Ring

732401030

$0.95

23

Slider Shoe This part replaces 420460045.

417223021

$6.09

24

Loctite 609, 10 ml

413703100

$24.58

25

Roller

417222947

$19.97

26

Stopper Washer

417004302

$15.99

27

Pin

417004309

Unavailable

28

Cotter Pin

250400060

$1.60

29

Spring, Violet/green | High Altitude

415015400

$14.75

Spring, Violet/blue

415034900

$14.75

30

Ramp 281 | Formula Deluxe 500. Formula Deluxe 600.

417005281

Unavailable

Ramp (286) | Formula DLX 500 LC.

417005286

Unavailable

31

Hex. Screw M8 X 16

236281684

Unavailable

32

Drive Belt

414860700

Unavailable

33

Spring Washer 14 mm

250200006

Unavailable

Conical Spring Washer M12

250200005

Unavailable

34

Drive Pulley Bolt

417120000

$63.82

Bolt, Drive Pulley | Formula Deluxe 583.

417120100

Unavailable

35

Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).

415043100

Unavailable

36

Loctite 271, 10 ml

293800005

Unavailable

37

High Altitude Kit, (Not Shown) | Formula 500. Formula 500 Deluxe.

861756500

Unavailable

High Altitude Kit (Not Shown) | Formula Z.

861756300

Unavailable

High Altitude Kit (Not Shown) | Formula 583.

861756400

Unavailable

38

Clutch Repair Kit

417006100

Unavailable

39

Puller Inner Half

529007900

Unavailable
