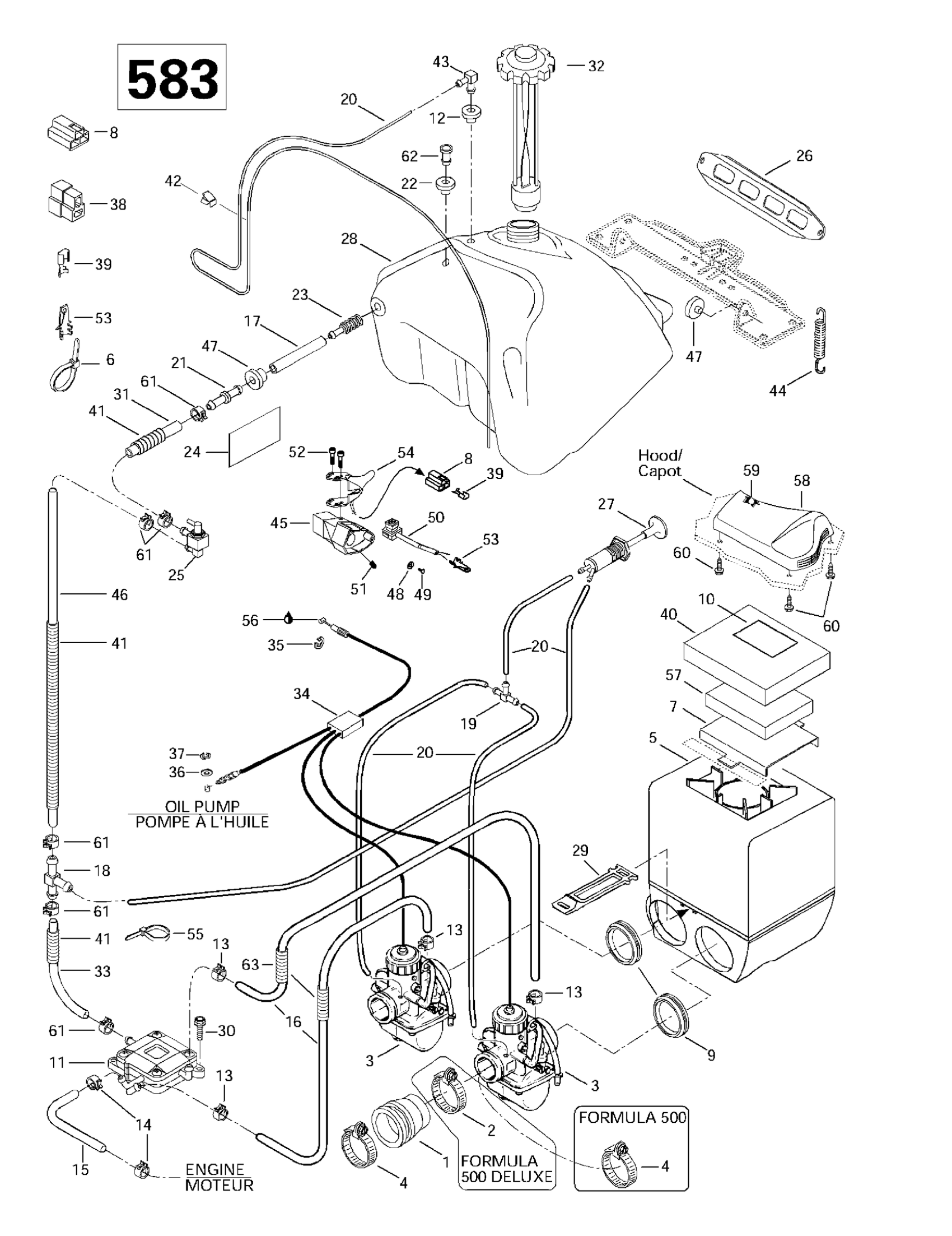

Ski-Doo Formula 500 Deluxe, 1997 Fuel System (583) Diagram

#

Description
Price

1

Adaptor Caburetor | Formula Deluxe 670.

570048400

Unavailable

Adaptor Caburetor (38 mm)

570048100

Unavailable

2

Clamp (50 mm)

415038400

Unavailable

3

Carburetor VM 40-88 (PTO) | Includes 1 - 32. Formula Z.

403129600

Unavailable

Carburetor VM 40-89 (MAG) | Formula Z.

403129700

Unavailable

Carburetor VM 38-349 (PTO) | Includes 1 - 32. Formula 583.

403130400

Unavailable

Carburetor VM 38-350 (MAG) | Formula 583.

403130500

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass'y | Formula Z.

580638603

Unavailable

Air Silencer Ass'y | Formula 500. Formula 500 Deluxe.

580638605

Unavailable

6

Tie Wrap 368 mm

293750008

$0.85

7

Grill Intake

517283900

Unavailable

8

Female Terminal Housing (3 circuits)

409008500

Unavailable

9

Intake Adaptor VM 40 | Formula Deluxe 670.

570049000

Unavailable

Intake Adaptor VM 38

570048900

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump Ass'y | MX Z 670 HO.

403901200

Unavailable

12

Grommet

709200285

$7.09

13

Spring Clamp

414554800

$0.83

14

Spring Clamp

414415200

$0.83

15

Hose

219704549

$47.66

16

Polyurethane Hose 10000Mm Long

219704410

$46.12

17

Hose

415005700

$5.49

18

T-Fitting

415119300

$3.11

19

T-Fitting

414222400

$1.33

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

21

Male Connector

414872700

$1.86

22

Grommet

570045500

$6.32

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$33.05

28

Fuel Tank | Formula 500. Formula 500 Deluxe.

572093000

Unavailable

Fuel Tank | Formula Z.

571009400

Unavailable

29

LATCH - Call your local BRP dealership

570069700

Unavailable

30

Hexagonal Head Screw

210262050

$1.74

31

Hose Formed | Formula Z. Formula 583.

415060400

Unavailable

32

Fuel Tank Cap

572161200

$36.89

Fuel Tank Cap

513033025

$19.47

33

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

34

Throttle Cable and Housing (38 mm)

414968801

Unavailable

Throttle Cable and Housing (40 mm) | Formula Deluxe 670.

414966201

Unavailable

35

Circlip

414274500

$0.74

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

39

Female Terminal PACKARD

561503200

Unavailable

40

Exterior Foam | Formula 500. Formula 500 Deluxe.

415012700

Unavailable

41

Tubing 16 Mm 1000Mm Long

219704408

$6.23

42

Clip

414227300

$1.45

43

Male Connector

414814100

$2.18

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

46

Hose | Formula Z. Formula 583.

414933900

Unavailable

47

Grommet | Europe

707800347

$7.58

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

51

Socket Set Screw M8 X 10

414440800

$4.00

52

Flange Screw

732601143

$4.02

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Handle Ass'y

512059348

$88.43

Heat Throttle Handle Ass'y (40 mm) | Formula Deluxe 670.

572057000

Unavailable

55

Tie Wrap 142 mm

293750002

$0.88

56

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

57

Air Filter

415014800

$11.49

58

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

59

Air Filter

414972600

$58.43

60

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

61

Spring Clamp

414655700

$0.68

62

Cap

572092900

$19.20

63

Not Available As Spare Part - Friction Washer
