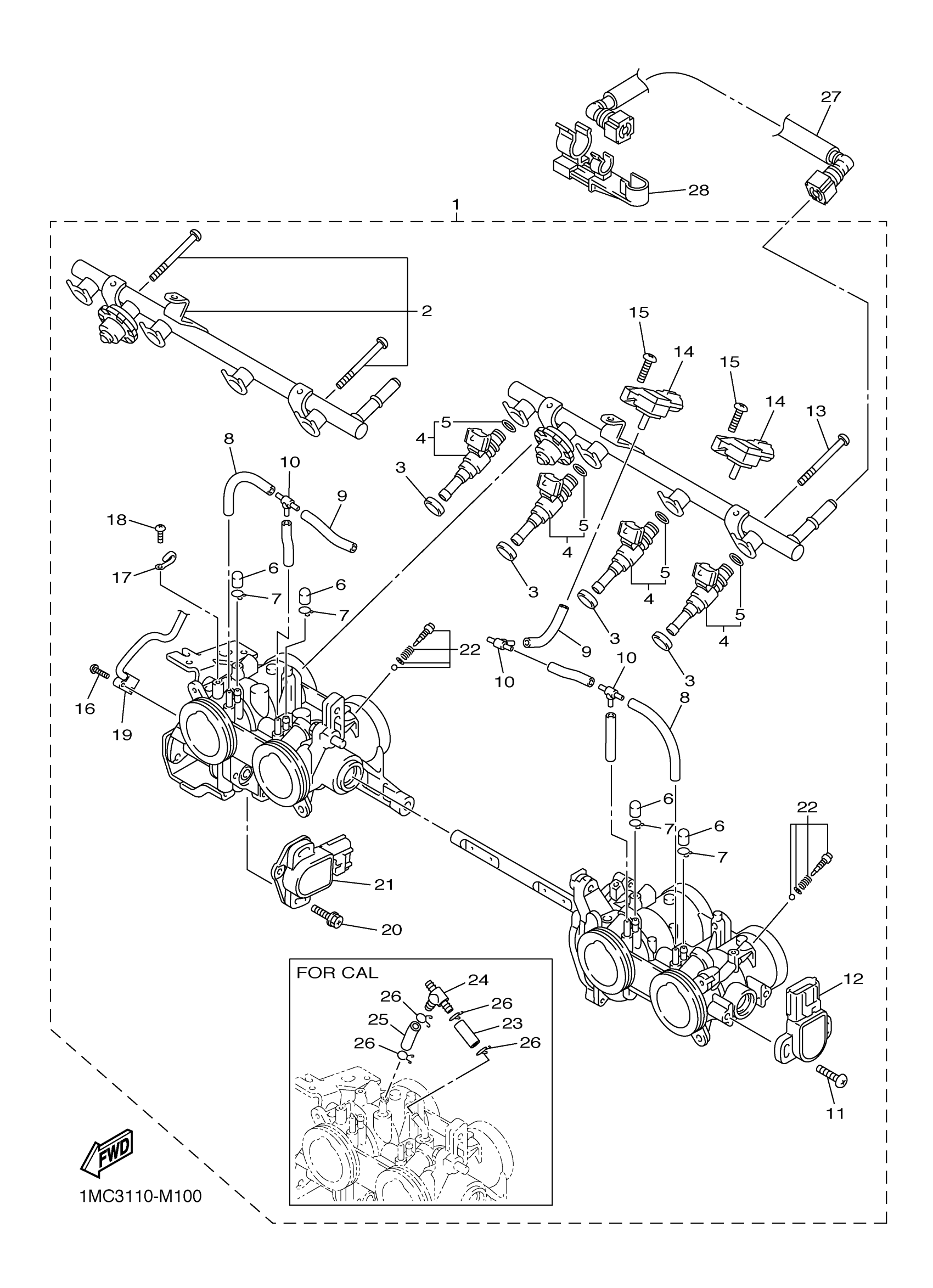

Yamaha FJR13ESHCB (FJR1300ES CA) B968 2017 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1MC-13750-02-00

$1,727.99

2

PIPE, INL.

1MC-1393A-00-00

Unavailable

3

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

4

INJECTOR ASSY

8GC-13761-00-00

$250.65

5

O-RING

8GC-13769-00-00

$13.32

6

CAP

895-14169-00-00

$3.73

7

CLIP, PIPE

8A7-14139-00-00

$6.34

8

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.36

9

HOSE, VACUUM SENSING 4

6P2-13533-00-00

$7.86

10

. PIPE, JOINT 1

68V-24376-00-00

$13.59

11

SCREW

8CC-14216-10-00

$6.66

12

THROTTLE SENSOR AS

2S3-85885-01-00

Unavailable

13

SCREW, PAN

98517-06012-00

$2.93

14

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

15

SCREW

2C0-14216-00-00

$2.98

16

SCREW

1MC-14216-00-00

Unavailable

17

CLAMP, WIRE HARNESS 1

1MC-21335-00-00

Unavailable

18

SCREW

6H4-14567-09-00

$7.07

19

SWITCH ASSY

1MC-81860-01-00

Unavailable

20

SCREW

5FL-14216-00-00

Unavailable

21

ACCELERATOR SENSOR

1MC-85884-01-00

$109.25

22

PILOT SCREW SET

2C0-14105-00-00

Unavailable

27

PIPE, FUEL 1

5JW-13971-10-00

Unavailable

28

CLAMP

90464-16005-00

Unavailable
