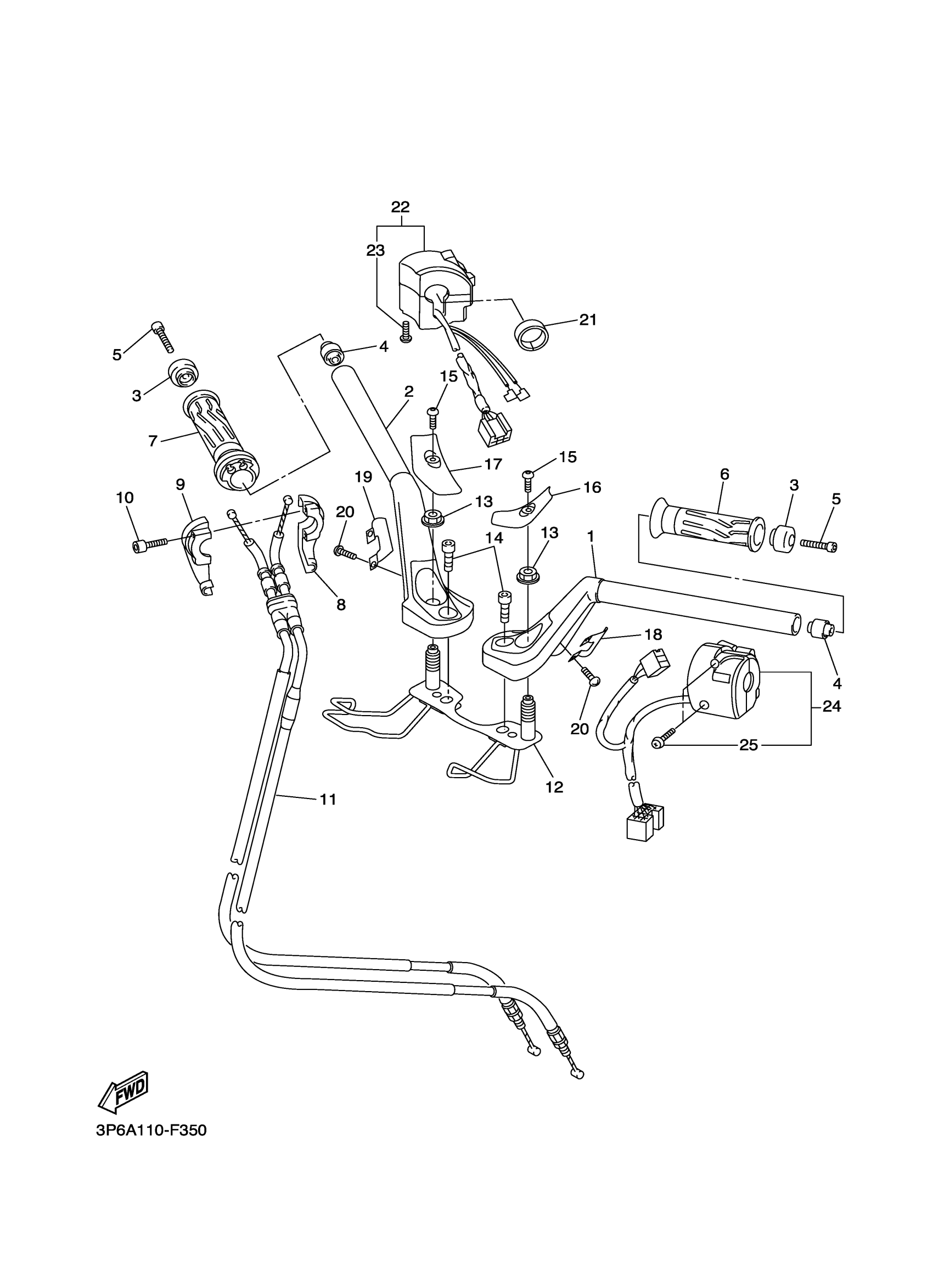

Yamaha FJR13AZS (FJR1300A) 1CY2 2010 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR (LEFT)

3P6-26121-00-00

Unavailable

2

HANDLEBAR (RIGHT)

3P6-26122-10-00

Unavailable

3

END, GRIP

4XV-26246-10-00

$27.46

4

HOLDER, DAMPER

4XV-23434-02-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$6.57

6

GRIP (LEFT)

5JW-26241-00-00

Unavailable

7

GRIP ASSY

5JW-26240-00-00

$39.08

8

CAP, GRIP UPPER

3XW-26281-01-00

$23.65

9

CAP, GRIP UNDER

3XW-26282-01-00

$25.18

10

BOLT,SOCKET

91317-05035-00

$5.81

11

THROTTLE CABLE ASSY

3P6-26302-10-00

$68.97

12

ADJUSTER

3P6-26169-00-00

Unavailable

13

NUT, FLANGE

95704-12500-00

$1.90

14

BOLT,SOCKET

91314-08030-00

$2.14

15

BOLT,HEX. SOCKET BUTTON

90111-04006-00

$1.52

16

COVER, HANDLEBAR UPPER 1

3P6-26143-01-00

Unavailable

17

COVER, HANDLEBAR UPPER 2

3P6-26145-01-00

Unavailable

18

COVER, HANDLEBAR LOWER 1

3P6-26144-00-00

Unavailable

19

COVER, HANDLEBAR LOWER 2

3P6-26146-00-00

Unavailable

20

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

21

COLLAR (2H7)

90387-22660-00

Unavailable

22

SWITCH, HANDLE 3 (RIGHT)

3P6-83963-00-00

Unavailable

23

SCREW, PAN

98507-05045-00

Unavailable

24

SWITCH, HANDLE 4

3P6-83972-00-00

Unavailable

25

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable
