2016 Yamaha FJR1300A CA (FJR13AGC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2016 Yamaha FJR1300A CA (FJR13AGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

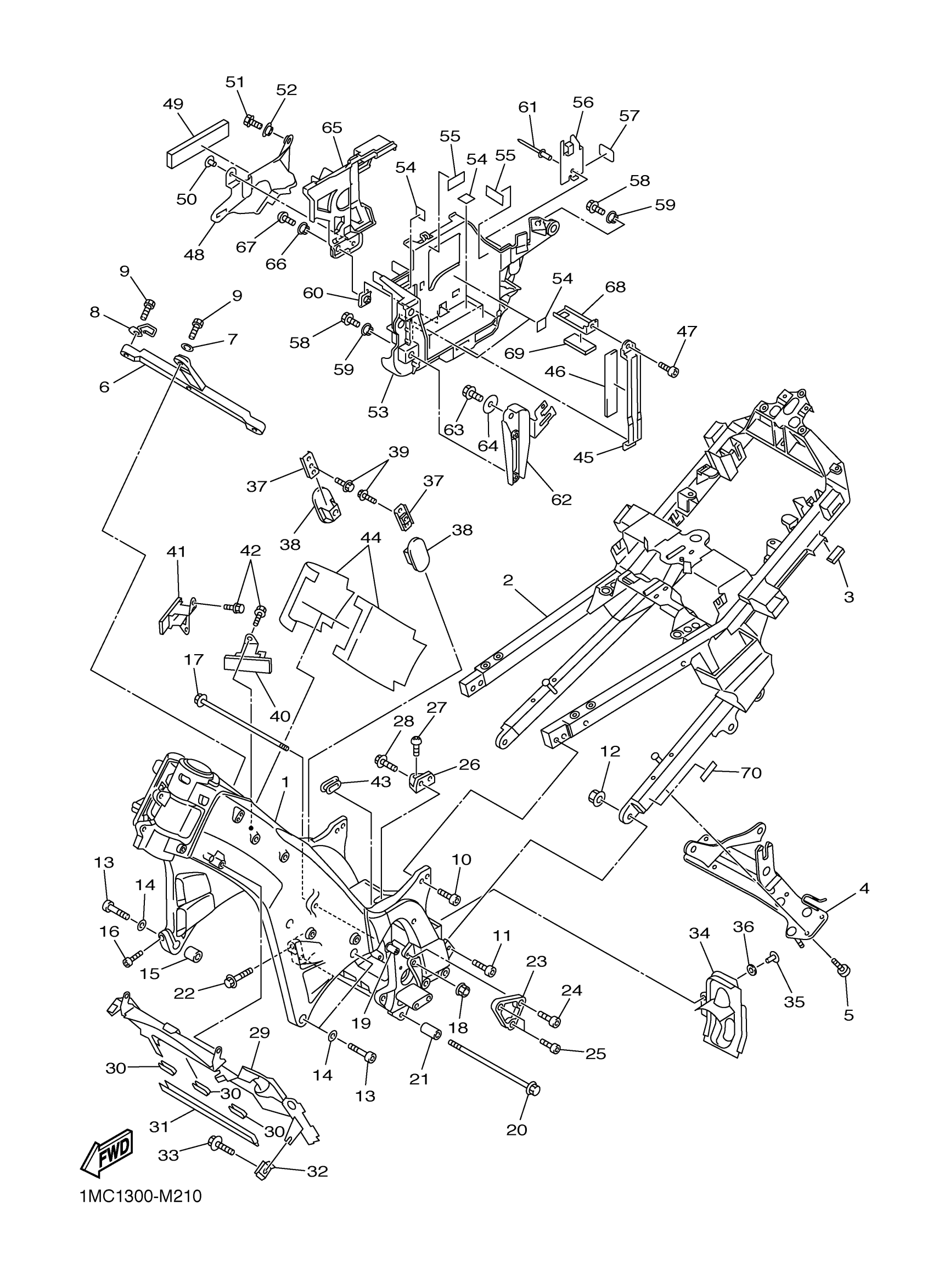

2016 Yamaha FJR1300A CA (FJR13AGC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

3P6-21110-00-00

1
Out of stock

2

REAR FRAME COMP.

3P6-21190-01-00

—
Out of stock

3

PROTECTOR

3P6-21652-00-00

1
Out of stock

4

MEMBER 1

3P6-2115A-20-00

—
Out of stock

5

SCREW(4DN)

90149-06302-00

—
Out of stock

6

CROSS-TUBE

3P6-21119-00-00

—
Out of stock

7

WASHER, PLATE (17K)

90201-106F2-00

1
Out of stock

8

GUIDE, WIRE

1MC-21339-00-00

—
Out of stock

9

BOLT, FLANGE

95817-10030-00

1
Out of stock

10

BOLT, SOCKET

91317-08025-00

1
Out of stock

11

BOLT

91312-10030-00

1
Out of stock

12

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

13

BOLT

91312-12055-00

1
Out of stock

14

WASHER(6TA)

92907-12600-00

1
Out of stock

15

COLLAR

90387-1312P-00

1
Out of stock

16

91312-08030

91312-08030-00

—
Out of stock

17

BOLT, WASHER BASED(1UF)

90105-10416-00

—
Out of stock

18

NUT

90179-10025-00

—
Out of stock

19

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

—
Out of stock

20

BOLT, WASHER BASED(4KM)

90105-10781-00

—
Out of stock

21

SPACER(3LN)

90560-10364-00

—
Out of stock

22

BOLT, FLANGE

95022-08035-00

—
Out of stock

23

STAY, ENGINE 2

3P6-21315-00-00

—
Out of stock

24

BOLT

91312-10020-00

—
Out of stock

25

BOLT, SOCKET

91317-08016-00

—
Out of stock

26

STAY, ENGINE 3

5JW-21316-00-00

—
Out of stock

27

BOLT,HEX. SOCKET BUTTON

90111-10047-00

—
Out of stock

28

BOLT, WASHER BASED(36Y)

90105-08307-00

—
Out of stock

29

GUIDE, AIR

3P6-2137Y-00-00

—
Out of stock

30

SEAL

3P6-21269-00-00

—
Out of stock

31

SEAL, AIR

3P6-21469-00-00

—
Out of stock

32

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

33

BOLT, WITH WASHER(2WG)

90119-06172-00

—
Out of stock

34

COVER, SHAFT 1

3P6-2147J-01-00

—
Out of stock

35

RIVET

90269-07008-00

—
Out of stock

36

WASHER, PLATE

90202-06058-00

1
Out of stock

37

BRACKET 3

5JW-2118U-00-00

—
Out of stock

38

BRACKET, INNER 1

5JW-2113N-00-00

—
Out of stock

39

BOLT, FLANGE

95022-06012-00

—
Out of stock

40

BRACKET, INNER 2

5JW-2113R-01-00

—
Out of stock

41

BRACKET, INNER 2

5JW-2113R-11-00

—
Out of stock

42

BOLT, FLANGE

95022-06012-00

—
Out of stock

43

CAP

5JW-2143A-00-00

—
Out of stock

44

DAMPER

5JW-21852-00-00

—
Out of stock

45

STAY 3

5JW-28358-00-00

—
Out of stock

46

DAMPER 4

5JW-28435-00-00

—
Out of stock

47

BOLT,SOCKET

91317-06012-00

—
Out of stock

48

GUIDE, AIR 3

1MC-2137K-01-00

—
Out of stock

49

DAMPER 4

3WF-15337-01-00

—
Out of stock

50

RIVET(4KM)

90269-05074-00

—
Out of stock

51

BOLT, FLANGE

95817-06014-00

—
Out of stock

52

COLLAR

90387-06066-00

—
Out of stock

53

STAY 1

1MC-28321-00-00

—
Out of stock

54

DAMPER

13S-21649-00-00

—
Out of stock

55

DAMPER 2

3C5-21639-00-00

—
Out of stock

56

STAY, GUIDE 1

1MC-2831E-00-00

—
Out of stock

57

SEAL 1

5YU-22358-00-00

—
Out of stock

58

BOLT, FLANGE

95817-06014-00

—
Out of stock

59

COLLAR

90387-06107-00

—
Out of stock

60

NUT, SPRING

90183-050A6-00

—
Out of stock

61

RIVET, BLIND (8K1)

90267-40076-00

—
Out of stock

62

PLATE 1

1MC-28396-00-00

—
Out of stock

63

BOLT, FLANGE

95817-06014-00

—
Out of stock

64

WASHER, PLATE

90201-06090-00

—
Out of stock

65

BRACKET 5

1MC-2836H-01-00

—
Out of stock

66

COLLAR

90387-05035-00

—
Out of stock

67

BOLT, BUTTON HEAD

92012-05012-00

—
Out of stock

68

STAY 2

5JW-28357-01-00

—
Out of stock

69

DAMPER 3

5JW-28425-00-00

—
Out of stock

70

LABEL 1

5JW-2151A-02-00

—
Out of stock
