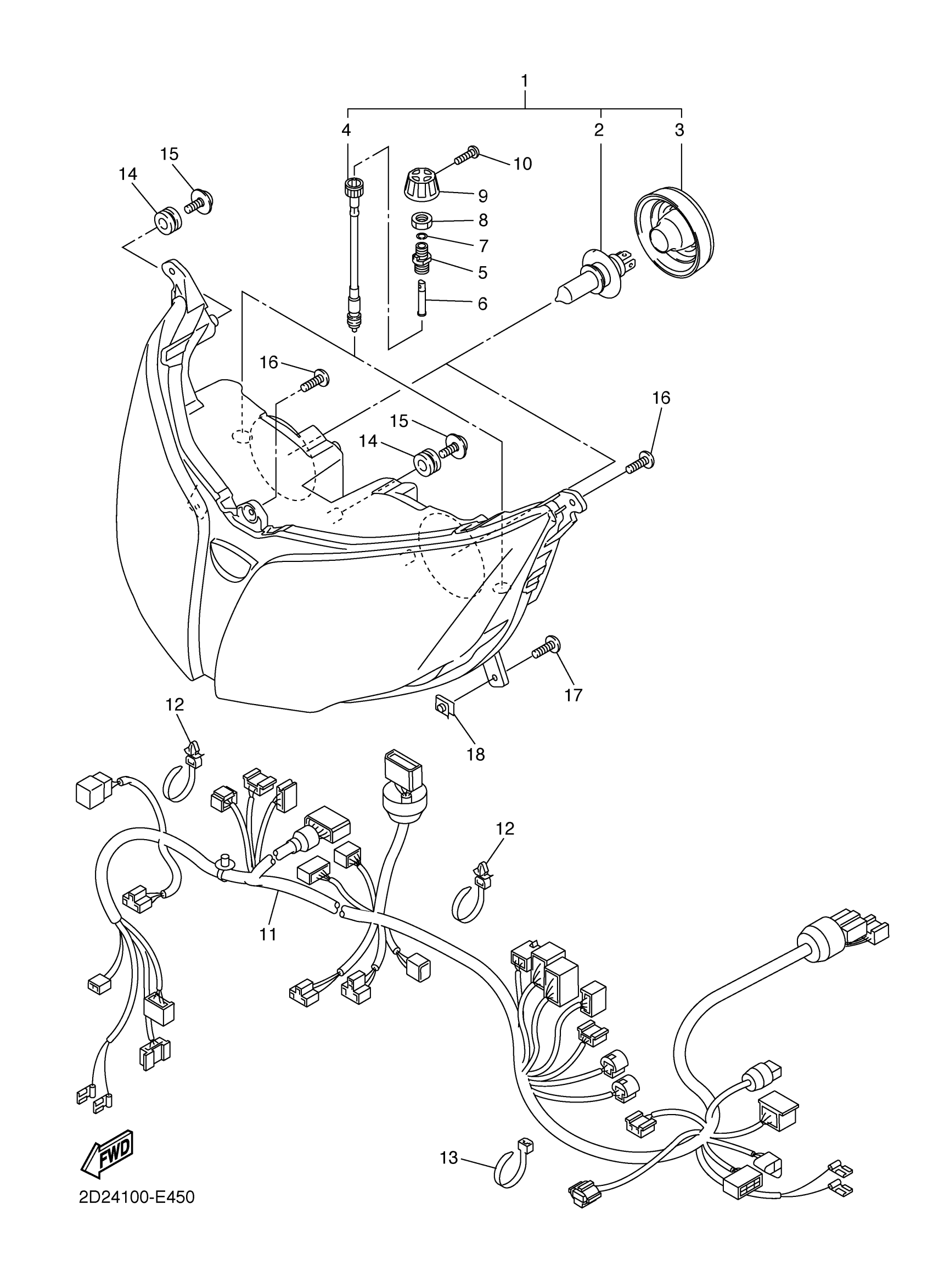

Yamaha FJR13AEWC (FJR1300AE CA) 2D2B 2007 HEADLIGHT Diagram

#

Description
Price

1

HEAD LIGHT SUB ASSY

3P6-8430B-20-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

3

COVER, SOCKET

5JW-84397-00-00

Unavailable

4

WIRE ASSY

3P6-8430N-00-00

Unavailable

5

HOLDER

3P6-8431U-00-00

$7.66

6

ROD

3P6-8431N-00-00

Unavailable

7

CIRCLIP

93440-06190-00

$6.17

8

NUT

90170-10206-00

$2.37

9

KNOB

3P6-8432N-00-00

$8.14

10

SCREW, PAN HEAD(3HH)

98507-03010-00

$2.52

11

CORD, HEADLIGHT

2D2-84359-10-00

Unavailable

12

CLAMP(2TV)

90464-10112-00

$5.76

13

BAND

1UA-82591-00-00

$3.85

14

DAMPER

4XV-83513-00-00

$5.98

15

SCREW, ROUND TAPPING

90160-05006-00

$5.81

16

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

17

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

18

NUT, SPRING

90183-050A6-00

Unavailable
