2012 Yamaha FJR1300A (FJR13ABL) Shift Cam Fork Diagram

← All diagrams

Find the part on the Shift Cam Fork diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

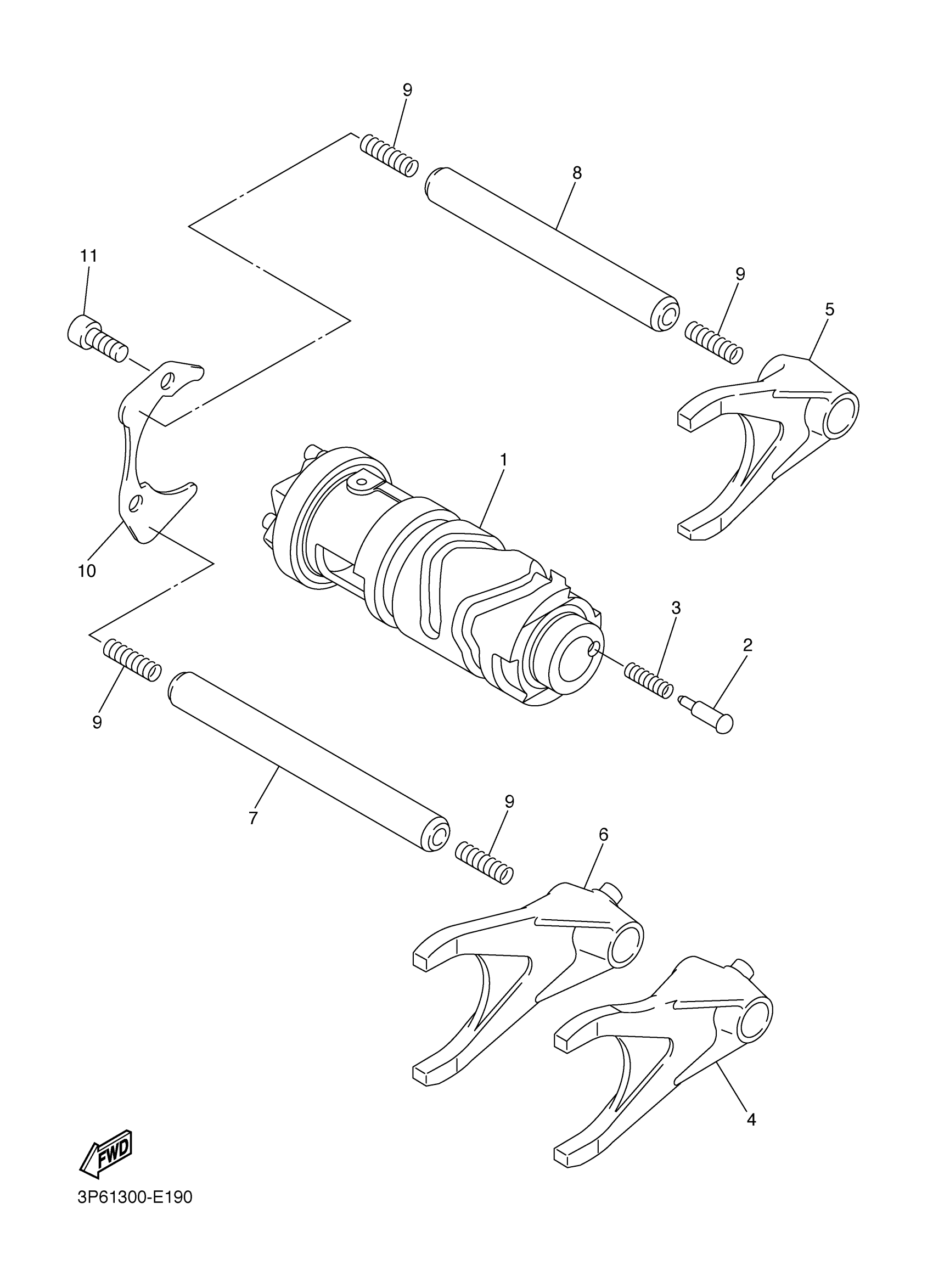

2012 Yamaha FJR1300A (FJR13ABL) Shift Cam Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

1MC-18540-00-00

—
Out of stock

2

POINT, NEUTRAL

3P6-18542-00-00

1
Out of stock

3

1

$6.17

In stock

4

FORK, SHIFT 1

5JW-18511-00-00

—
Out of stock

5

FORK, SHIFT 2

5JW-18512-00-00

—
Out of stock

6

FORK, SHIFT 3

5JW-18513-00-00

—
Out of stock

7

BAR, SHIFT FORK GUIDE 1

4XV-18531-00-00

1

$21.00

In stock

8

BAR, SHIFT FORK GUIDE 2

5JW-18535-00-00

—

$18.05

In stock

9

SPRING, COMPRESSION

90501-064L1-00

1

$1.23

In stock

10

STOPPER, SHIFT BAR

5JW-18536-00-00

—

$6.74

In stock

11

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock
