2012 Yamaha FJR1300A (FJR13ABL) Frame Diagram

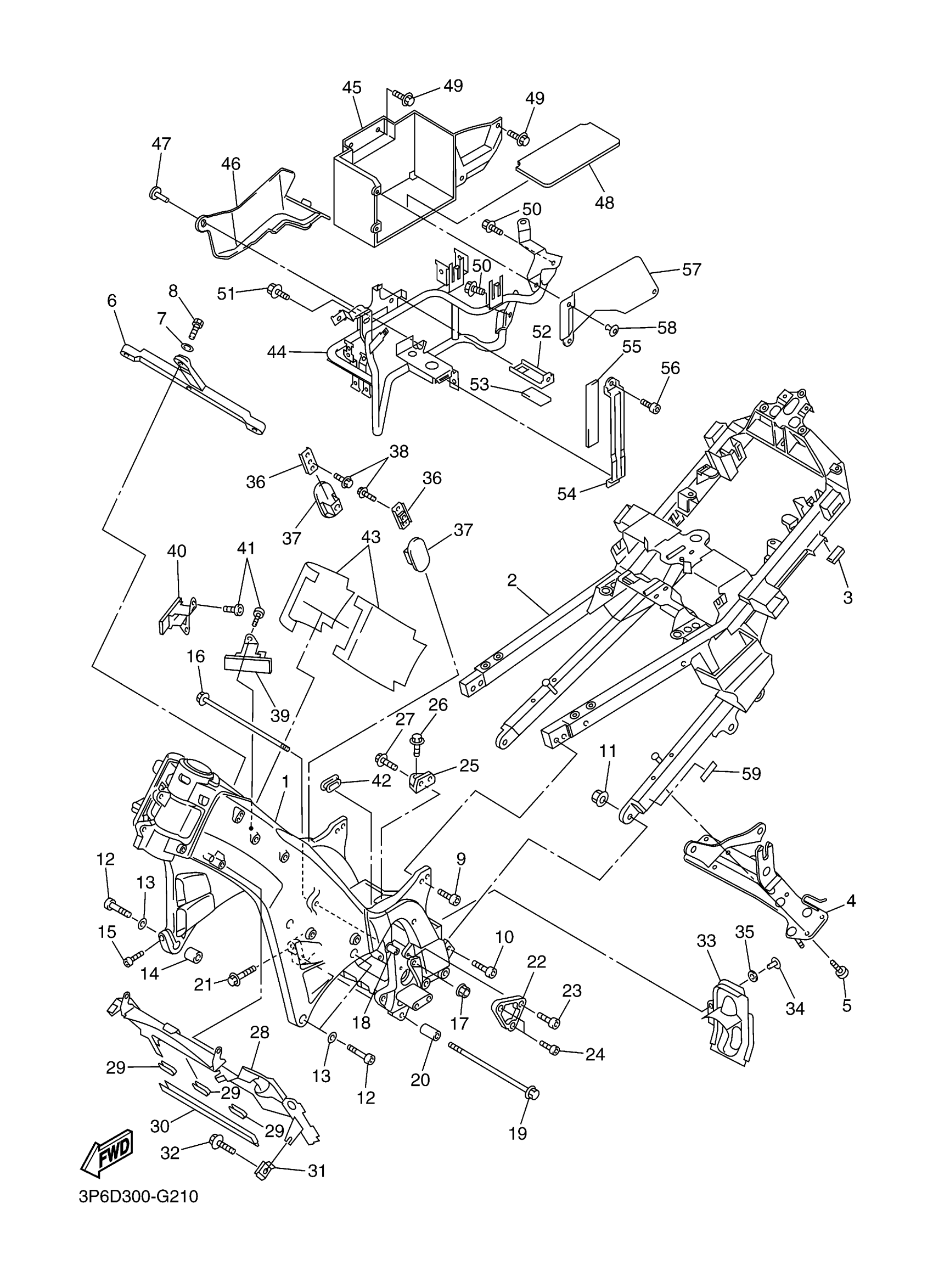

Find the part on the Frame diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
FRAME COMP.
3P6-21110-00-00
1
Out of stock
4
MEMBER 1
3P6-2115A-10-00
1
Out of stock
12
BOLT
91314-12055-00
1
Out of stock
13
WASHER(6TA)
92907-12600-00
1
Out of stock
26
BOLT (6TC)
90101-10M05-00
—
Out of stock
44
STAY 1
3P6-28321-00-00
—
Out of stock
45
BOX, BATTERY
3P6-2177G-00-00
—
Out of stock
46
GUIDE, AIR 3
3P6-2137K-00-00
—
Out of stock
48
SEAT, BATTERY
5VX-82122-00-00
—
Out of stock
57
COVER
5JW-2172W-00-00
1
Out of stock
