2011 Yamaha FJR1300A (FJR13AAS) Front Fork Diagram

← All diagrams

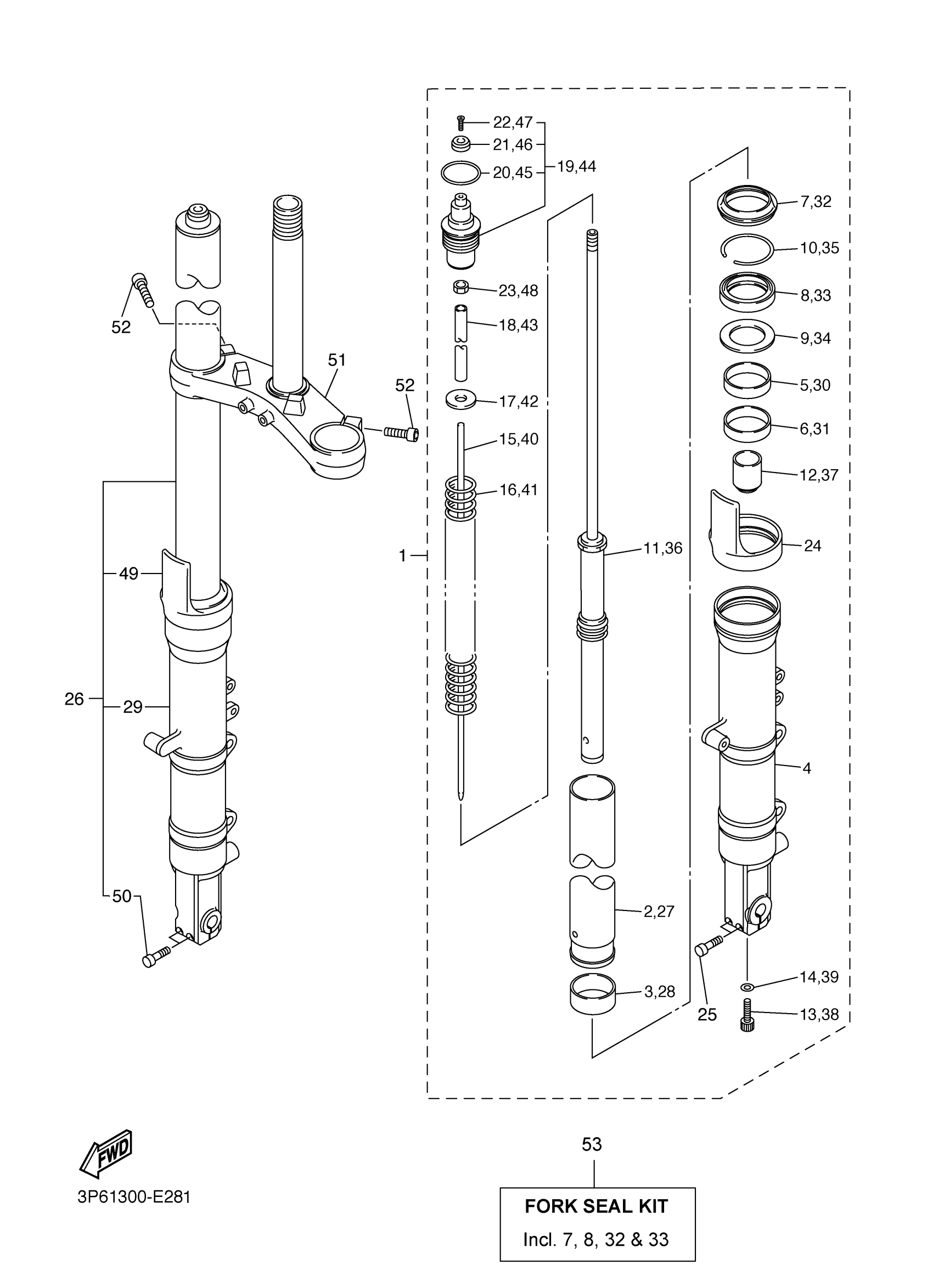

Find the part on the Front Fork diagram for your 2011 Yamaha FJR1300A (FJR13AAS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha FJR1300A (FJR13AAS) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

3P6-23102-10-00

—
Out of stock

2

INNER TUBE COMP.1

3P6-23110-11-00

1
Out of stock

3

METAL, SLIDE 2

4SV-23135-10-00

1
Out of stock

4

OUTER TUBE COMP. (L.H)

3P6-23106-01-00

—
Out of stock

5

METAL, SLIDE 1

4SV-23125-10-00

1
Out of stock

6

METAL, SLIDE 2

3P6-23135-00-00

1
Out of stock

7

SEAL, DUST

4SV-23144-00-00

1
Out of stock

8

OIL SEAL

4SV-23145-01-00

1
Out of stock

9

SEAT 1

4SV-23115-00-00

1
Out of stock

10

CLIP, OIL SEAL

4SV-23156-00-00

1
Out of stock

11

CYLINDER COMP., FRONT FORK

3P6-23170-00-00

—
Out of stock

12

SPINDLE, TAPER

5LV-23173-00-00

1
Out of stock

13

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

1
Out of stock

14

GASKET (5R6)

90430-10171-00

1
Out of stock

15

PLUNGER

5JW-2318Y-00-00

1
Out of stock

16

SPRING, FRONT FORK

3P6-23141-00-00

—
Out of stock

17

WASHER, PLATE (856)

90201-10321-00

—
Out of stock

18

SPACER

5JW-23118-00-00

—
Out of stock

19

BOLT, CAP

5JW-23111-01-00

—
Out of stock

20

O-RING(4SV)

93210-40N50-00

—
Out of stock

21

KNOB (TEN)

5JW-2319W-00-00

—
Out of stock

22

SCREW, OVAL HEAD

98680-03008-00

—
Out of stock

23

NUT(3BM)

95314-10600-00

—
Out of stock

24

COVER

4SV-2331G-00-00

—
Out of stock

25

BOLT,SOCKET

91314-08045-00

—
Out of stock

26

FRONT FORK ASSY (R.H)

3P6-23103-10-00

—
Out of stock

27

INNER TUBE COMP.1

3P6-23110-11-00

1
Out of stock

28

METAL, SLIDE 2

4SV-23135-10-00

1
Out of stock

29

OUTER TUBE COMP. (R.H)

3P6-23107-01-00

—
Out of stock

30

METAL, SLIDE 1

4SV-23125-10-00

1
Out of stock

31

METAL, SLIDE 2

3P6-23135-00-00

1
Out of stock

32

SEAL, DUST

4SV-23144-00-00

1
Out of stock

33

OIL SEAL

4SV-23145-01-00

1
Out of stock

34

SEAT 1

4SV-23115-00-00

1
Out of stock

35

CLIP, OIL SEAL

4SV-23156-00-00

1
Out of stock

36

CYLINDER COMP., FRONT FORK

3P6-23170-00-00

—
Out of stock

37

SPINDLE, TAPER

5LV-23173-00-00

1
Out of stock

38

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

1
Out of stock

39

GASKET (5R6)

90430-10171-00

1
Out of stock

40

PLUNGER

5JW-2318Y-00-00

1
Out of stock

41

SPRING, FRONT FORK

3P6-23141-00-00

—
Out of stock

42

WASHER, PLATE (856)

90201-10321-00

—
Out of stock

43

SPACER

5JW-23118-00-00

—
Out of stock

44

BOLT, CAP

5JW-23111-01-00

—
Out of stock

45

O-RING(4SV)

93210-40N50-00

—
Out of stock

46

KNOB (TEN)

5JW-2319W-00-00

—
Out of stock

47

SCREW, OVAL HEAD

98680-03008-00

—
Out of stock

48

NUT(3BM)

95314-10600-00

—
Out of stock

49

COVER

4SV-2331G-00-00

—
Out of stock

50

BOLT,SOCKET

91314-08045-00

—
Out of stock

51

UNDER BRACKET COMP.

1MC-23340-10-00

—
Out of stock

52

BOLT, SOCKET

91317-08025-00

—
Out of stock

53

FORK SEAL KIT (TWO FORKS)

4SV-W003B-00-00

—
Out of stock
