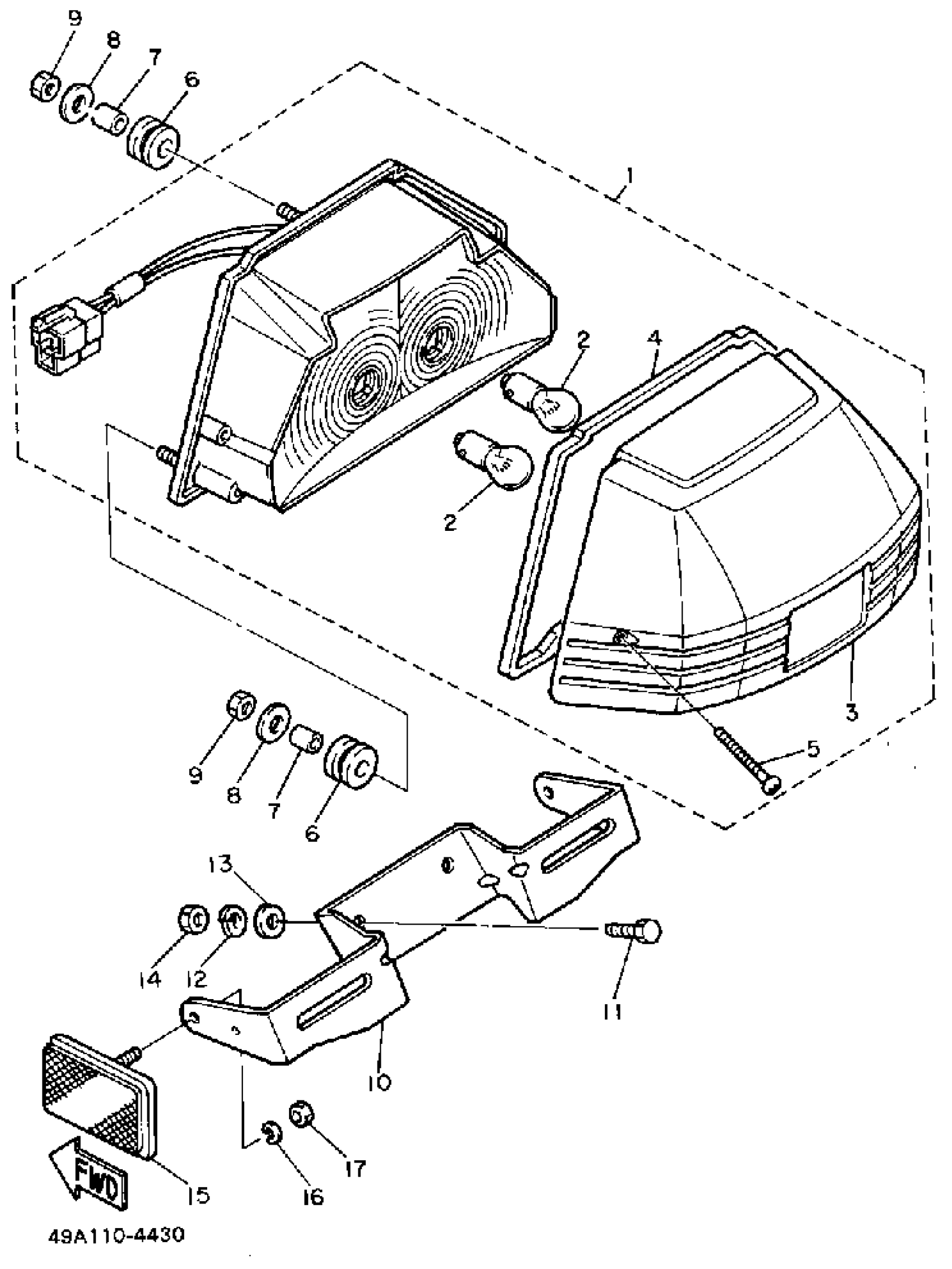

Yamaha FJ600LC (FJ600 CA) 1984 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

49A-84710-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

. LENS, TAILLIGHT

49A-84721-00-00

Unavailable

4

SEAL

3TJ-14457-00-00

Unavailable

5

SCREW, TAPPING(3AH)

97707-40630-00

$6.22

6

DAMPER, TAIL 1

33M-84736-00-00

Unavailable

7

COLLAR

90387-06088-00

$1.56

8

WASHER, PLATE

90201-06380-00

$0.54

9

NUT, HEXAGON

95380-06600-00

$4.11

10

BRACKET, LICENSELICENSE

49A-84751-00-98

Unavailable

11

BOLT, HEXAGON

97017-06016-00

$5.76

12

WASHER, SPRING

92907-06100-00

$0.98

13

WASHER, PLATE

90201-06380-00

$0.54

14

NUT(6TA)

95317-06600-00

$2.52

15

REAR REFLECTOR ASSY

4KM-85130-00-00

$18.99

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

NUT, HEXAGON (663)

95380-05600-00

Unavailable
