1984 Yamaha FJ600 CA (FJ600LC) Fairing Diagram

← All diagrams

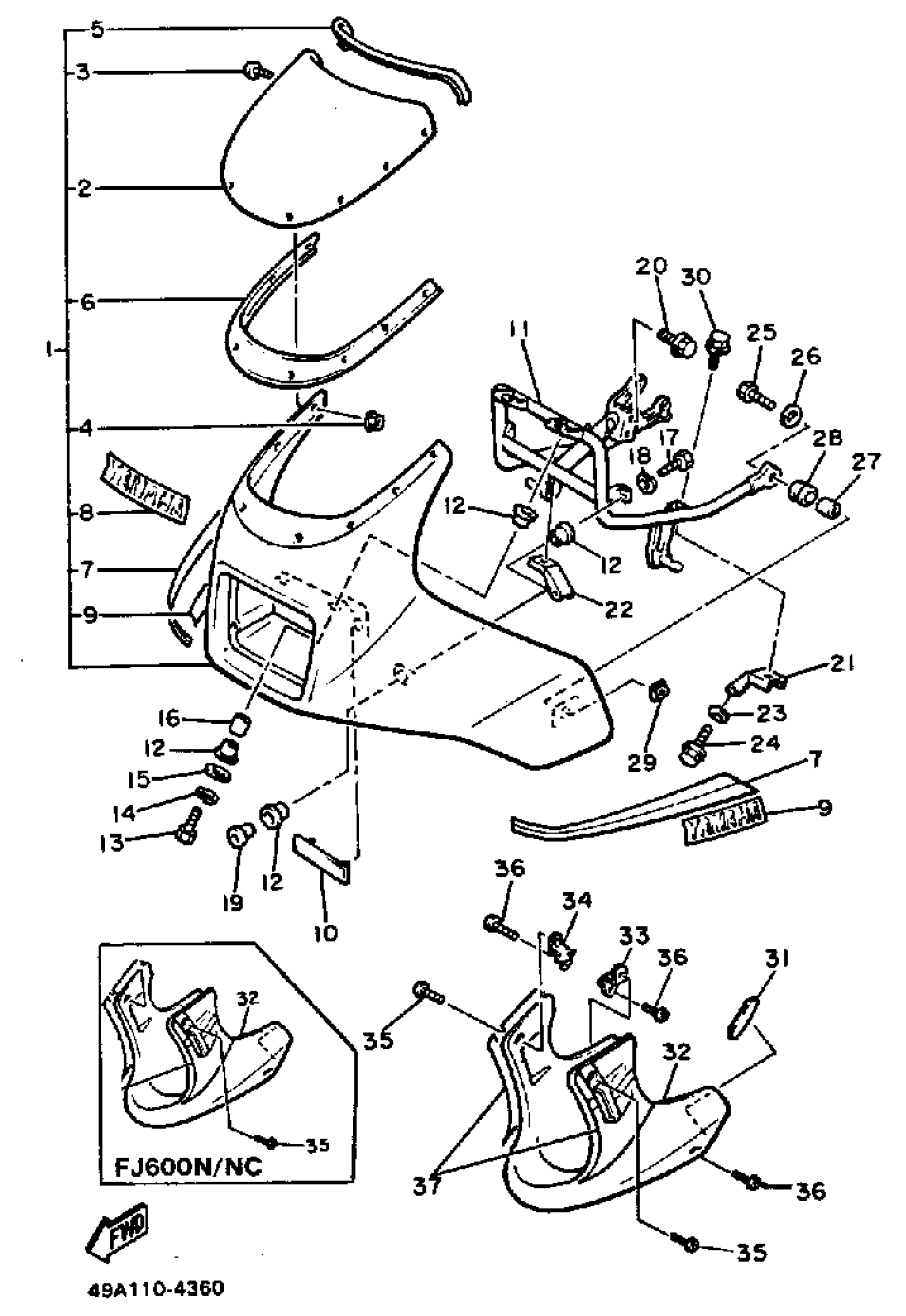

Find the part on the Fairing diagram for your 1984 Yamaha FJ600 CA (FJ600LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha FJ600 CA (FJ600LC) Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING ASSEMBLYASSEMBLY

42N-W2838-00-05

1
Out of stock

1

COWLING ASSEMBLY

42N-W2838-00-06

1
Out of stock

2

WINDSHIELD (35H-28381-01)

31A-28381-02-00

1
Out of stock

3

SCREW, ROUND HEAD(1UX)

90150-05023-00

1

$2.78

In stock

4

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

5

TRIM

52E-28376-00-00

1
Out of stock

6

MOLD 1

31A-28345-00-00

1
Out of stock

7

. GRPHC SET, COWLING COWLING

51J-28390-00-00

1
Out of stock

7

. GRPHC SET, COWLING COWLING

51J-28390-10-00

1
Out of stock

8

EMBLEM, YAMAHA

99246-00100-00

1

$15.42

In stock

8

. EMBLEM

51J-28338-10-00

1
Out of stock

9

EMBLEM, YAMAHA

99223-00180-00

1
Out of stock

9

EMBLEM 1

99226-00180-00

1
Out of stock

10

STAY, LEG SHIELD R

31A-28336-00-00

1
Out of stock

11

STAY 1

51J-28356-00-00

1
Out of stock

12

GROMMET (31A)

90480-22362-00

—

$5.62

In stock

13

BOLT(21W)

97017-06035-00

—

$2.91

In stock

14

WASHER, SPRING

92907-06100-00

—
Out of stock

15

WASHER PLATE 248217570000

90201-06074-00

—

$6.29

In stock

16

SPACER (31A)

90560-08237-00

—

$2.78

In stock

17

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

18

WASHER, SPRING

92907-06100-00

—
Out of stock

19

COLLAR

90387-050J5-00

1
Out of stock

20

BOLT, FLANGE

95817-08012-00

—

$3.98

In stock

21

STAY SIDE 1

3KM-2831U-00-00

1
Out of stock

22

STAY, SIDE 1

3KM-2832U-00-00

1
Out of stock

23

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

24

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

25

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

26

WASHER, PLATE (4X4)

90201-067A0-00

—
Out of stock

27

COLLAR

90387-06113-00

—

$10.51

In stock

28

GROMMET (4L0)

90480-18276-00

—

$6.48

In stock

29

NUT, EMBLEM

42N-28317-00-00

1
Out of stock

30

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

31

DAMPER

49A-28371-00-00

1
Out of stock

32

COVER, LOWER

3KM-28385-00-6G

1
Out of stock

32

UNDER COVER ASSEMBLY (33M-28385-1U) (L/LC)

3KM-W2839-00-1U

1
Out of stock

33

BRACKET 1

33M-2836A-50-00

1
Out of stock

34

BRACKET 2

33M-2836E-50-00

1
Out of stock

35

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

36

SCREW, BINDING (31K)

90154-06014-00

—

$7.68

In stock

36

SCREW, BINDING (31K)

90154-06014-00

—

$7.68

In stock

37

GRAPHIC SET, LWRCVRCOVER

51J-28301-09-00

1
Out of stock

37

GRAPHIC SET, LWR CVCOVER

51J-28301-19-00

1
Out of stock
