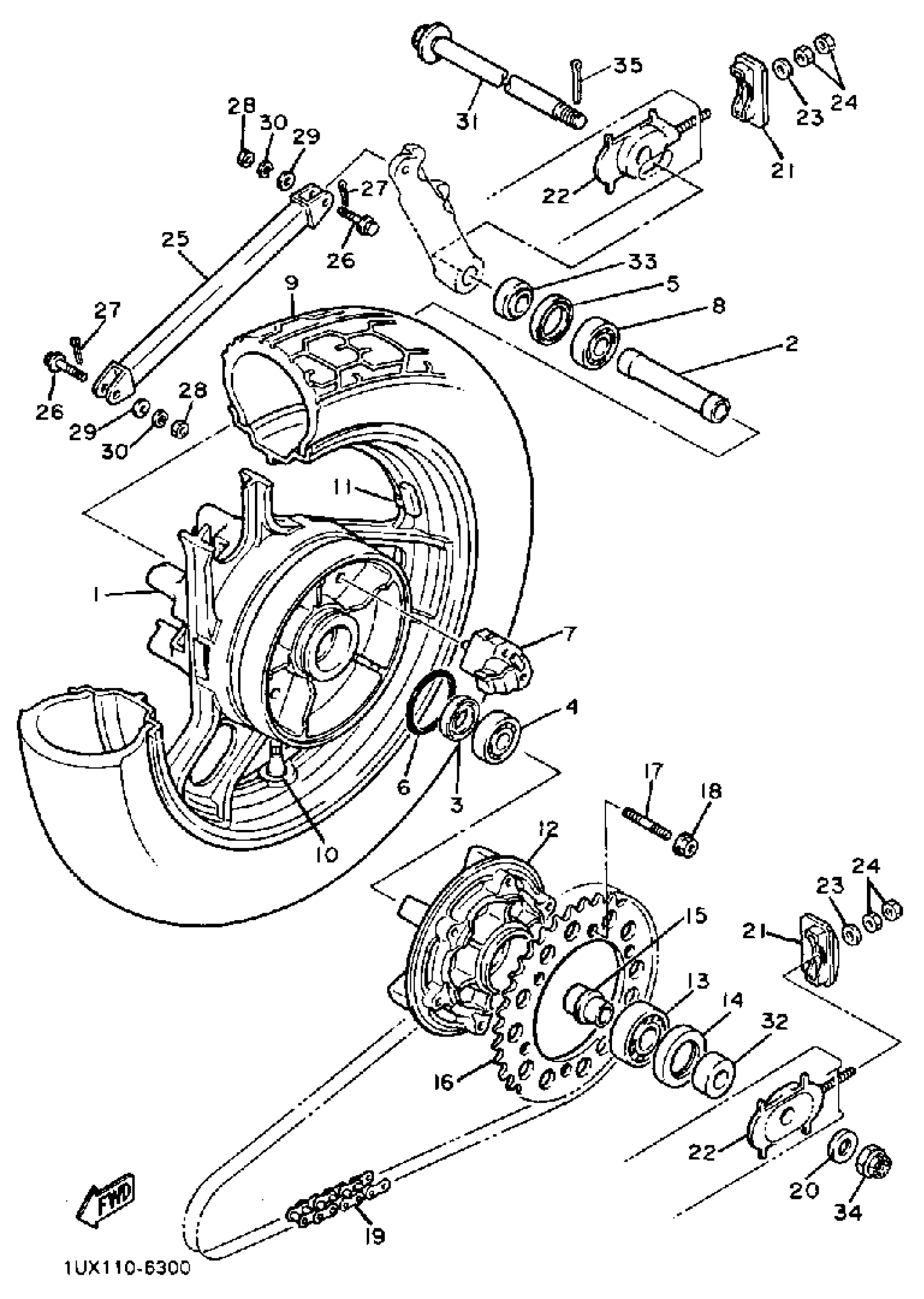

Yamaha FJ1200TC (FJ1200 CA) 1987 REAR WHEEL Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

136-Y2533-80-1F

Unavailable

2

SPACER

90560-20254-00

Unavailable

3

FLANGE, SPACER

2H7-25315-00-00

$7.99

4

BEARING(3BC)

93306-30437-00

$66.99

5

OIL SEAL(3BC)

93106-40027-00

$15.99

6

O-RING(2HJ)

93210-65752-00

$21.99

7

DAMPER

2GH-25364-00-00

$44.99

8

BEARING(3BC)

93306-30437-00

$66.99

9

150/80V16G534BSV250 G534)

94115-166X2-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

36Y-25366-01-00

Unavailable

13

BRG,R-B 6305ZZ 62MM 232G (6A5)

93306-305U0-00

Unavailable

14

OIL SEAL(3BC)

93106-42026-00

Unavailable

15

COLLAR, WHEEL

36Y-25377-00-00

Unavailable

16

SPROCKET, DRVN 41TDRIVEN (41T)

36Y-25441-21-00

Unavailable

17

BOLT, STUD(1TX)

90116-10485-00

Unavailable

18

NUT, SELF-LOCKING

90185-10170-00

Unavailable

19

CHAIN

94581-78110-00

Unavailable

20

WASHER, PLATE (5K7)

90201-18264-00

Unavailable

21

PULLER, CHAIN 2

36Y-25389-00-00

Unavailable

22

PULLER, CHAIN 1

36Y-25388-01-00

Unavailable

23

WASHER, PLAIN

92990-08200-00

Unavailable

24

NUT(6L2)

95333-08600-00

Unavailable

25

BAR, TENSION

36Y-25371-00-00

Unavailable

26

BOLT, WASHER BASED

90105-08315-00

Unavailable

27

PIN, COTTER

91490-20025-00

Unavailable

28

. NUT

95380-08700-00

Unavailable

29

.. WASHER, PLATE

92990-08600-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

AXLE, WHEEL

36Y-25381-00-00

Unavailable

32

COLLAR

90387-203U4-00

Unavailable

33

COLLAR (26H)

90387-200J2-00

Unavailable

34

NUT, CASTLE

90171-18043-00

Unavailable

35

PIN, COTTER

91490-40045-00

Unavailable
