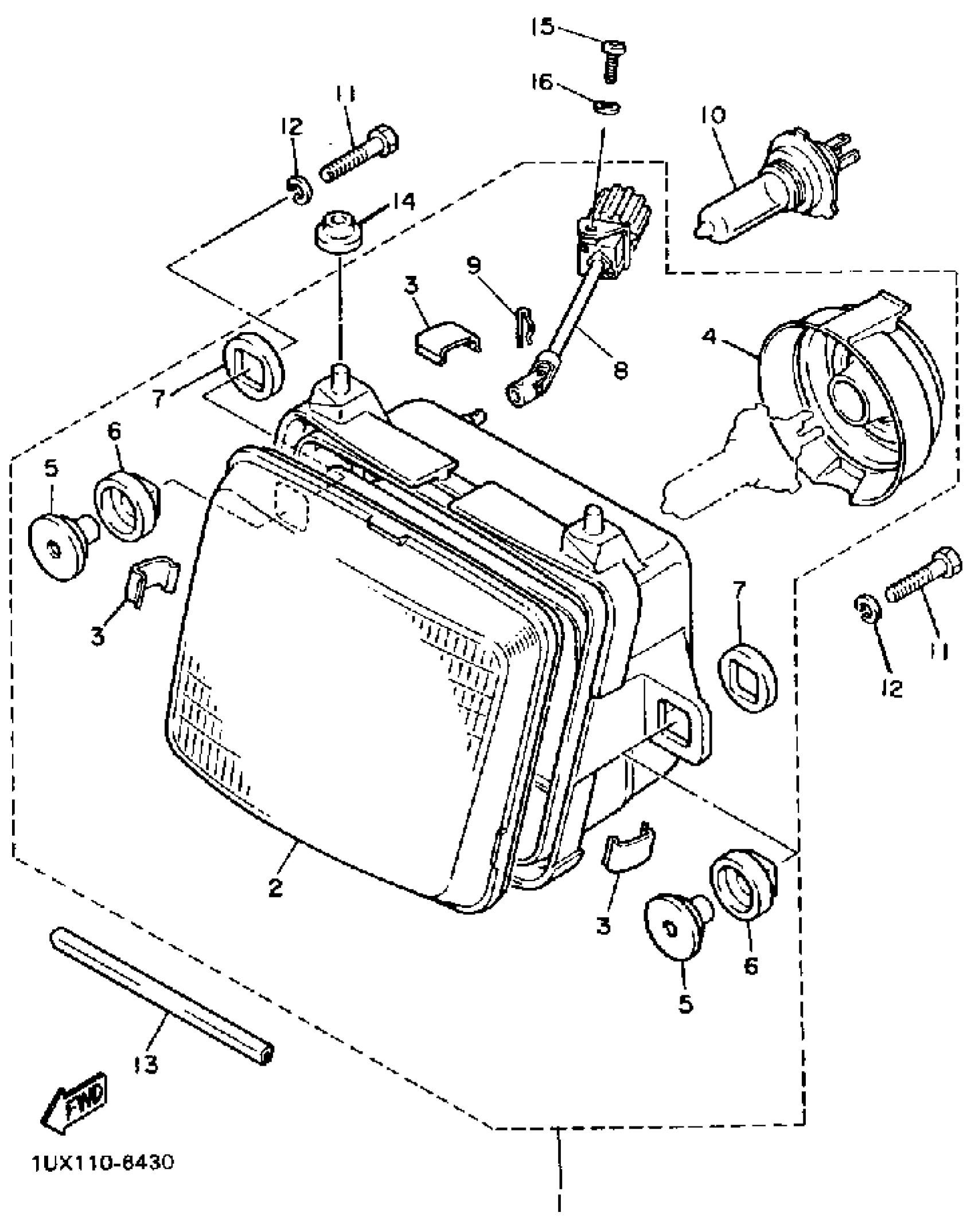

Yamaha FJ1200TC (FJ1200 CA) 1987 HEADLIGHT Diagram

. LENS ASSEMBLY

47M-84320-A0-00

Unavailable

. LENS ASSEMBLY

47M-84320-A0-00

Unavailable

. SPRING, REFLECTOR

36Y-84324-00-00

Unavailable

COVER, SOCKET

36Y-84397-00-00

Unavailable

COLLAR, BODY FITTING

498-84145-60-00

$6.99

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

DAMPER, HEAD LAMP B

498-84164-60-00

$6.99

. ROD ASSEMBLY

36Y-8431M-00-00

Unavailable

. PIN

36Y-8431V-00-00

Unavailable

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

BOLT

97014-08040-00

$7.49

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

MOLE, HEADLIGHT

36Y-84343-00-00

Unavailable

GROMMET

36Y-84354-00-00

$4.63

SCREW, PAN

98517-06012-00

$3.78

WASHER, SPRING

92907-06100-00

Unavailable
