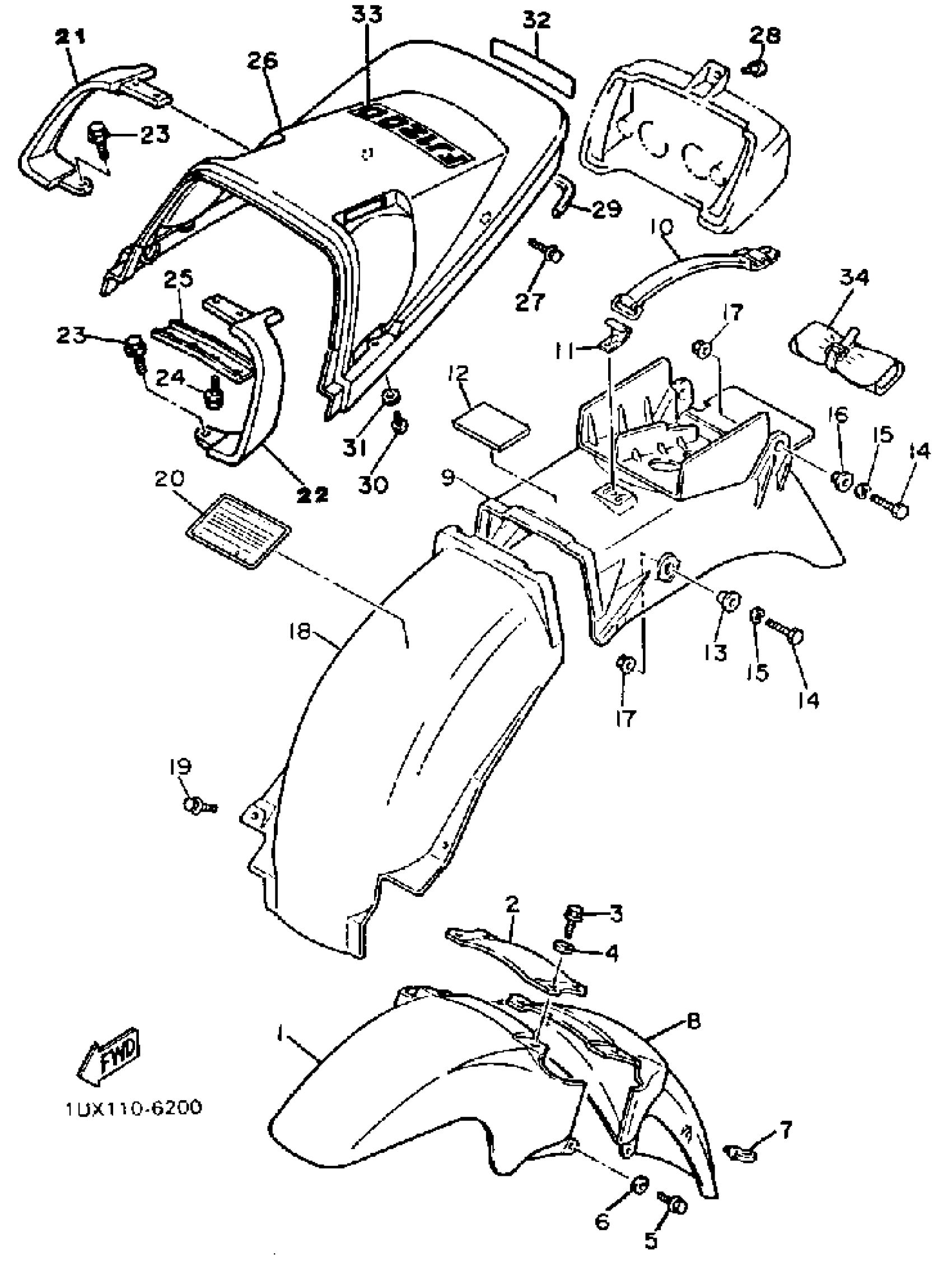

Yamaha FJ1200TC (FJ1200 CA) 1987 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (36Y-21511-00-TF)

36Y-21511-01-AJ

Unavailable

2

BRACKET, FENDER

36Y-21512-00-00

Unavailable

3

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

4

WASHER, PLATE

90201-06M08-00

Unavailable

5

. BOLT, FLANGE

95027-06020-00

Unavailable

6

WASHER, PLATE (4L0)

90201-062A8-00

$8.49

7

GUIDE, WIRE

1A8-21518-00-00

$7.99

8

FENDER, FRONT 2 (36Y-21556-00-TF)

36Y-21556-01-AJ

Unavailable

9

REAR FENDERCOMP

47M-W2161-00-00

Unavailable

10

BAND, TOOL

36Y-21376-00-00

Unavailable

11

HOOK, BAND

36Y-2175R-00-00

Unavailable

12

. SEAT 2

26H-2848K-00-00

Unavailable

13

COLLAR (8G8)

90387-06648-00

$8.49

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, SPRING

92995-06100-00

Unavailable

16

COLLAR (8G8)

90387-06648-00

$8.49

17

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

18

GUARD, MUD

36Y-21629-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06152-00

Unavailable

20

PLATE, SPECFOR FJ1200T (1UX)

1UX-21683-60-00

Unavailable

20

PLATE, SPEC

(1WJ-21687-70-00)

Unavailable

21

STAY, REAR

1TX-21645-00-00

Unavailable

22

STAY, REAR

1TX-21644-00-00

Unavailable

23

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

24

BOLT, FLANGE

95817-06014-00

Unavailable

25

STAY 1

1TX-2164F-00-00

Unavailable

26

COVER, REAR FENDER

1TX-W2165-00-4X

Unavailable

27

BOLT, WITH WASHER

90119-06242-00

Unavailable

28

DAMPER 2

36Y-21639-00-00

Unavailable

29

MOLD 2

1TX-28346-00-00

Unavailable

30

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

31

. WASHER, PLAIN

92990-05200-00

Unavailable

32

EMBLEM 1

1WJ-2163G-00-00

Unavailable

33

GRAPHIC, TAILCOVER

1WJ-21663-10-00

Unavailable

34

TOOL KIT

36Y-28100-01-00

Unavailable
