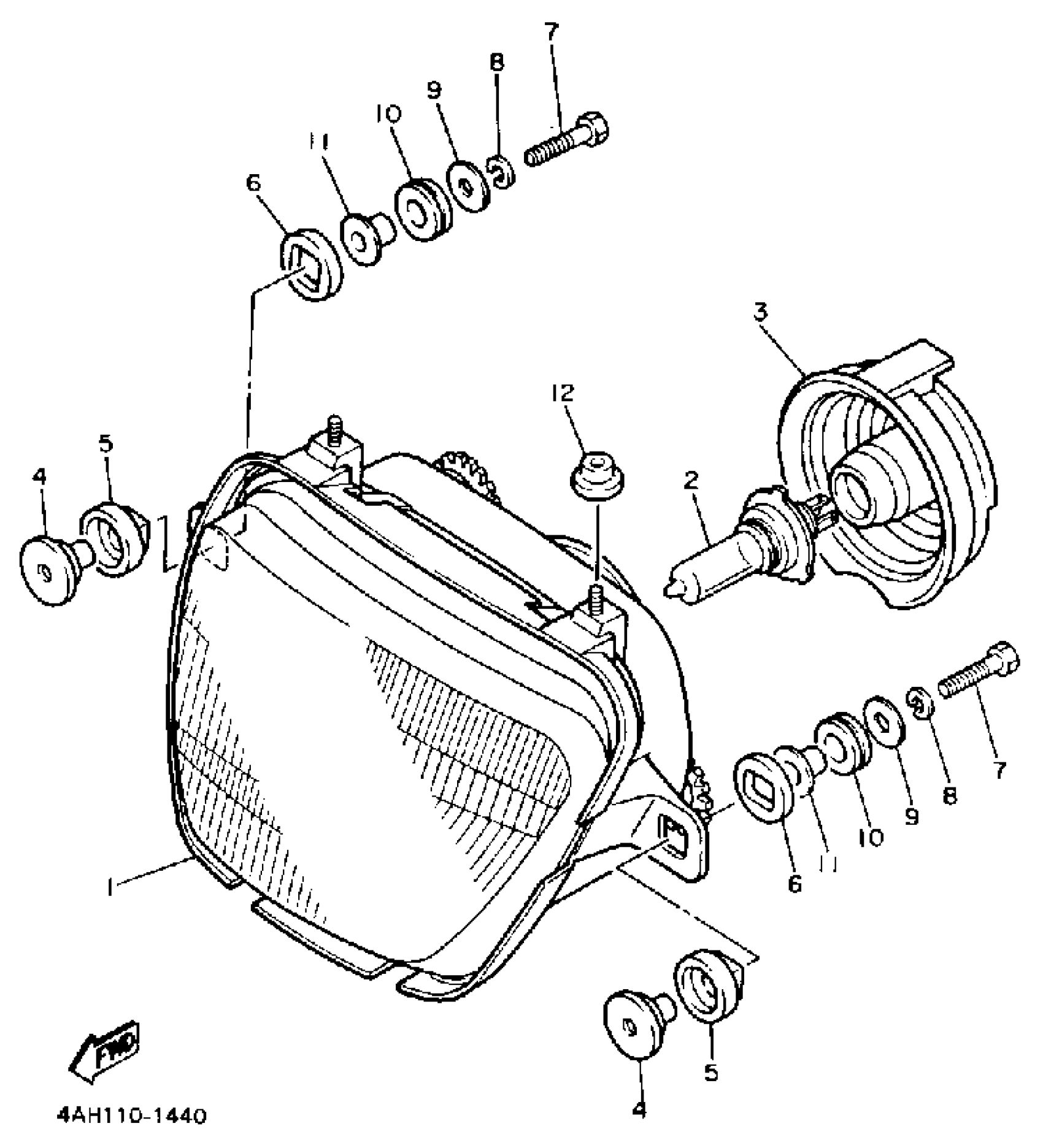

Yamaha FJ1200AEC (FJ1200 CA) 1993 HEADLIGHT Diagram

#

Description
Price

1

LENS ASSEMBLY

4AH-84320-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

3

COVER, SOCKET

36Y-84397-00-00

Unavailable

4

COLLAR, BODY FITTING

498-84145-60-00

$6.42

5

DAMPER, HEAD LAMP A

498-84163-60-00

$5.59

6

DAMPER, HEAD LAMP B

498-84164-60-00

$5.55

7

BOLT, HEXAGON

97013-08050-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

9

WASHER, PLATE(8AT)

90201-081R9-00

$5.90

10

GROMMET

90480-20338-00

$2.84

11

COLLAR

90387-081F5-00

Unavailable

12

GROMMET

36Y-84354-00-00

$3.20
