2016 Yamaha FJ09 (FJ09GS) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2016 Yamaha FJ09 (FJ09GS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

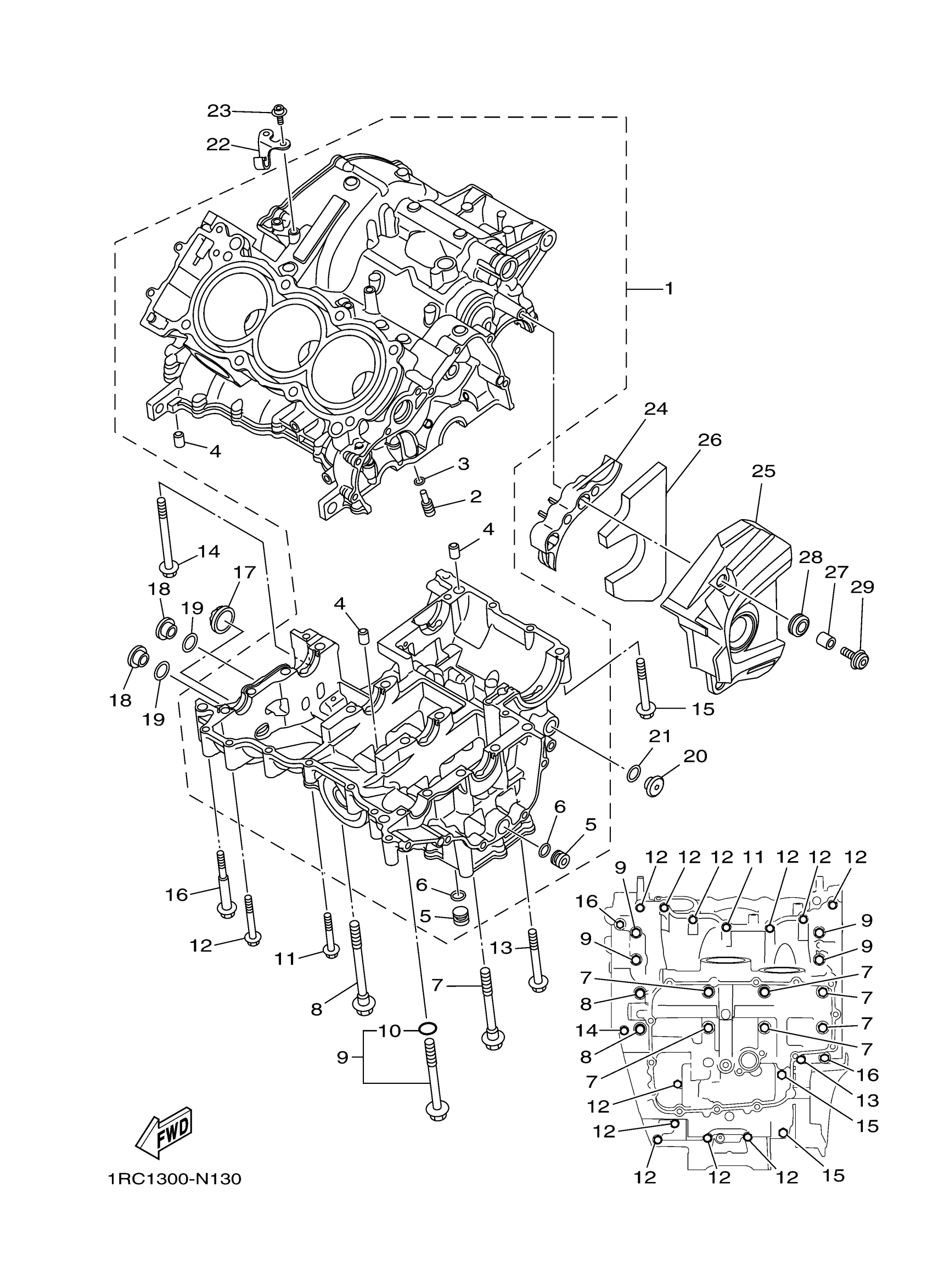

2016 Yamaha FJ09 (FJ09GS) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

1RC-15100-07-00

1
Out of stock

2

NOZZLE 3

5EB-15155-00-00

1
Out of stock

3

O-RING (210)

93210-04092-00

1
Out of stock

4

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

5

PLUG

90338-16262-00

1
Out of stock

6

O-RING(3LD)

93210-12790-00

1
Out of stock

7

BOLT, WITH WASHER

90119-09013-00

1
Out of stock

8

BOLT, WITH WASHER

90119-09010-00

1
Out of stock

9

BOLT, CRANKCASE JOURNAL

23P-15156-00-00

1
Out of stock

10

O-RING (11M)

93210-07540-00

1
Out of stock

11

BOLT, FLANGE

95817-06040-00

1
Out of stock

12

BOLT, FLANGE

95812-06050-00

1
Out of stock

13

BOLT, FLANGE

95812-06065-00

—
Out of stock

14

BOLT, FLANGE

90105-06202-00

1
Out of stock

15

BOLT, FLANGE

95817-08060-00

1
Out of stock

16

BOLT

90109-06100-00

—
Out of stock

17

GAUGE, LEVEL

2H7-15361-00-00

—
Out of stock

18

PLUG

36Y-15189-01-00

—
Out of stock

19

O-RING(1L9)

93210-16325-00

—
Out of stock

20

PLUG, STRAIGHT SCREW

90340-14011-00

—
Out of stock

21

O-RING (2H9)

93210-14369-00

—
Out of stock

22

HOLDER, CLUTCH CABLE

1RC-15441-00-00

—
Out of stock

23

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

—
Out of stock

24

GUIDE, INLET

1RC-15377-00-00

—
Out of stock

25

COVER, CHAIN CASE

1RC-15418-00-00

—
Out of stock

26

DAMPER 5

1RC-15338-00-00

—
Out of stock

27

COLLAR

90387-06286-00

—
Out of stock

28

GROMMET (462)

90480-13018-00

—
Out of stock

29

BOLT,HEX. SOCKET BUTTON

90111-06130-00

—
Out of stock
