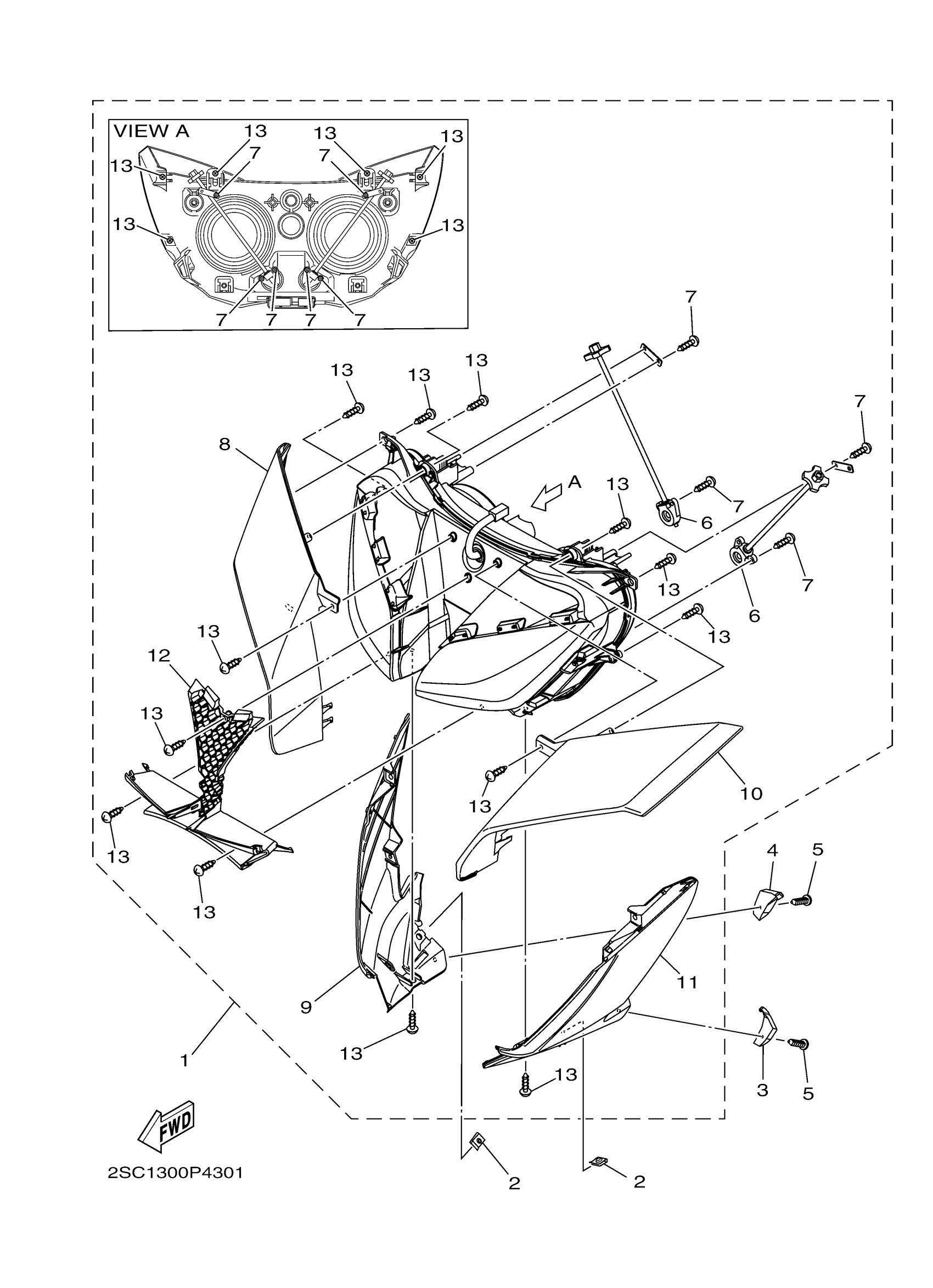

Yamaha FJ09FR (FJ09) 2SC50 2015 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

2PP-84300-02-00

$956.38

2

NUT, SPRING(1YT)

90183-05042-00

$1.00

3

DAMPER, HEADLIGHT

2PP-84366-00-00

Unavailable

4

DAMPER, HEADLIGHT

2PP-84367-00-00

Unavailable

5

RIVET

90269-03002-00

$1.40

6

GEAR UNIT ASSY

2SC-8430M-00-00

Unavailable

7

SCREW

2SC-84526-00-00

$0.75

8

COVER, A

2SC-84196-00-00

$54.34

9

COVER, B

2SC-84544-00-00

Unavailable

10

COVER, C

2SC-84396-00-00

$54.34

11

COVER, D

2SC-84797-00-00

Unavailable

12

COVER, E

2SC-84144-00-00

Unavailable

13

SCREW

2SC-84526-00-00

$0.75
