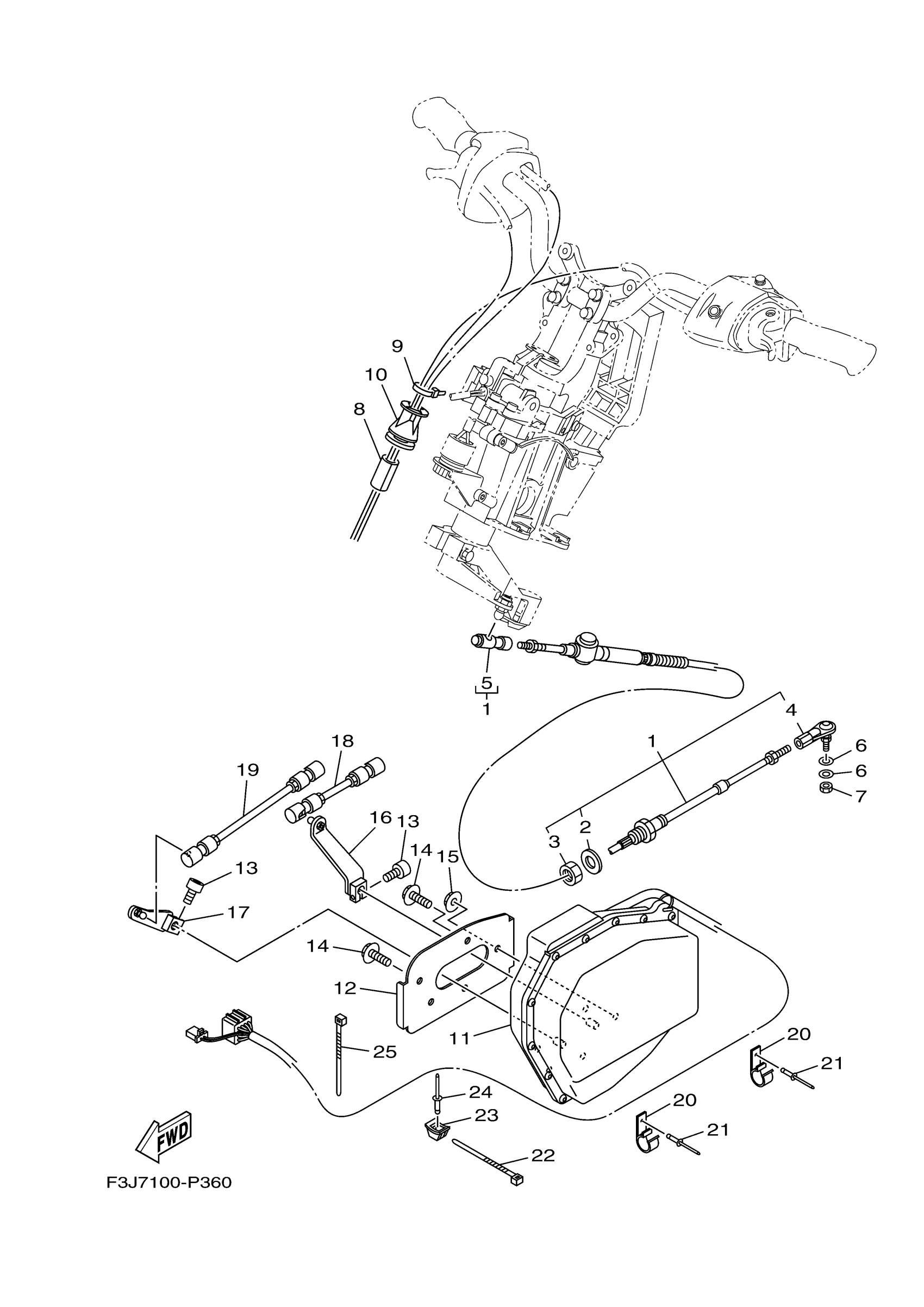

Yamaha FC1800P (FX SVHO) F3JA 2015 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F1S-61481-12-00

$284.39

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$90.48

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.75

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.07

8

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

9

CLAMP

90464-32801-00

$1.29

10

GROMMET

F3J-U822E-01-00

$5.87

11

Motor Assembly

F3J-6140B-04-00

Unavailable

12

PLATE

F3Y-U8285-00-00

$14.91

13

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.02

14

BOLT, WITH WASHER

90119-08852-00

$4.01

15

NUT, NYLON (6J8)

95780-08300-00

$11.48

16

TRIM ARM ASSY

F3J-6150E-00-00

$77.60

17

SHIFT ARM ASSY

F3J-6150F-00-00

$67.15

18

ROD ASSY

F3J-6150A-00-00

$42.93

19

ROD ASSY 2

F3J-6150D-00-00

$39.51

20

CLAMP

F3J-U8368-00-00

Unavailable

21

RIVET, BLIND

90267-409U5-00

Unavailable

22

CLAMP

90464-32801-00

$1.29

23

BASE, CLAMP

F1W-U828M-00-00

$1.29

24

RIVET, BLIND

90267-48802-00

$1.98

25

CLAMP

90464-32801-00

$1.29
