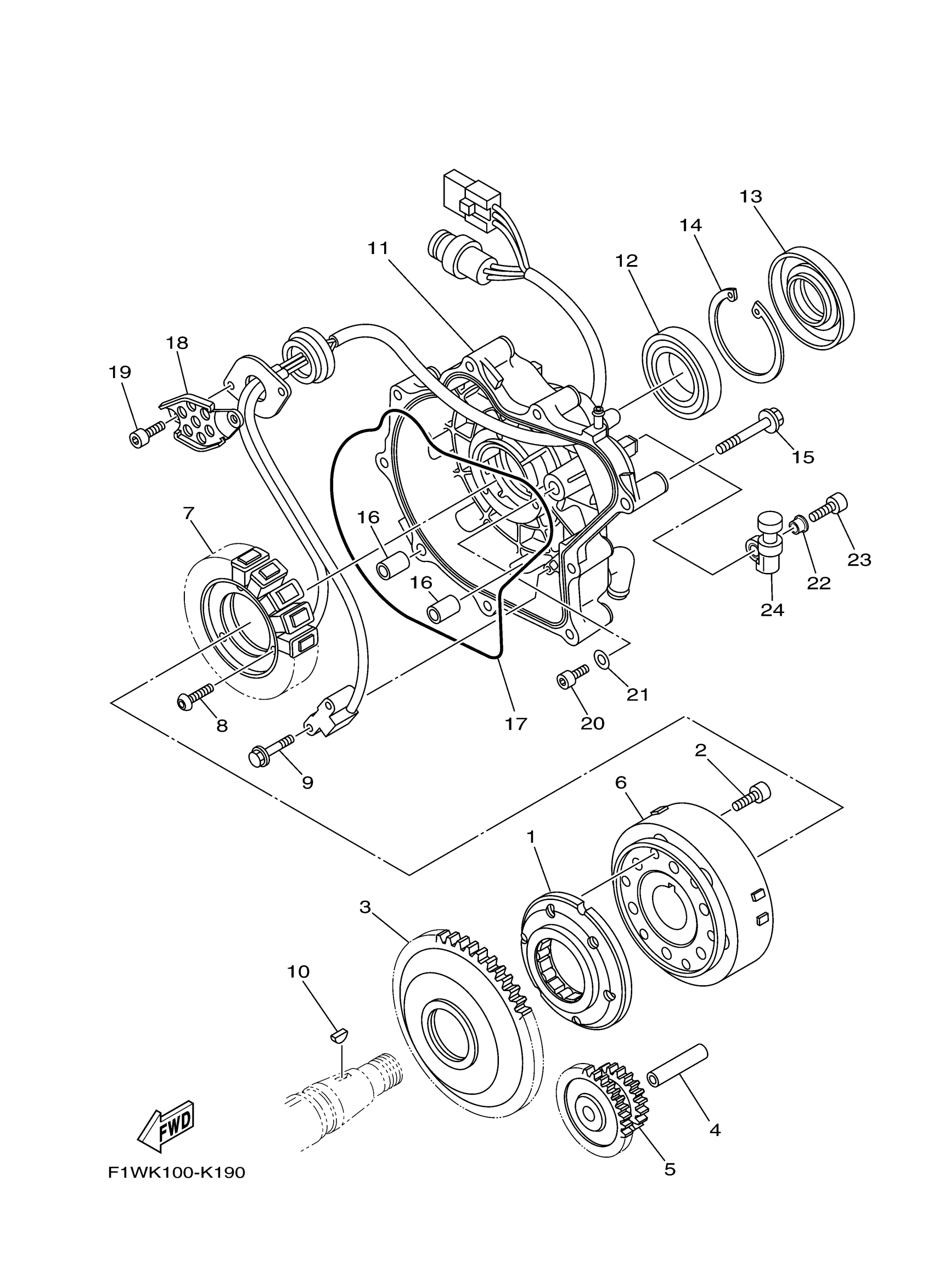

Find the part on the Generator diagram for your 2017 Yamaha FX Ho (FB1800S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha FX Ho (FB1800S) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ONE-WAY ASSY

6S5-15590-00-00

1
Out of stock

2

BOLT, SOCKET

91317-08020-00

1
Out of stock

3

GEAR 3

6LE-15515-00-00

1
Out of stock

4

SHAFT 1

6S5-15521-00-00

1
Out of stock

5

GEAR, IDLER 2

6S5-15517-00-00

1
Out of stock

6

ROTOR ASSY

6S5-81450-01-00

1
Out of stock

7

STATOR ASSY

6S5-81410-11-00

1
Out of stock

8

SCREW

90149-06182-00

1
Out of stock

9

BOLT, WITH WASHER

97513-05514-00

1
Out of stock

10

KEY, WOODRUFF(1WG)

90280-03047-00

1
Out of stock

11

COVER, FLYWHEEL

6S5-81337-20-00

1
Out of stock

12

BEARING

93306-00809-00

1
Out of stock

13

OIL SEAL

6LE-81167-00-00

1
Out of stock

14

CIRCLIP (70R)

93420-72065-00

1
Out of stock

15

BOLT, FLANGE

90105-08249-00

1
Out of stock

16

PIN, DOWEL(3VD)

99530-10114-00

—
Out of stock

17

. O-RING

6S5-81168-00-00

1
Out of stock

18

CLAMP

6S5-81328-00-00

1
Out of stock

19

BOLT,SOCKET

91317-06014-00

—
Out of stock

20

BOLT, SOCKET

91317-05010-00

—
Out of stock

21

WASHER, PLATE (7N7)

90201-052E8-00

—
Out of stock

22

COLLAR

90387-06M05-00

1
Out of stock

23

. BOLT

91380-06020-00

1
Out of stock

24

. GROMMET

6S5-81364-11-00

1
Out of stock
