2016 Yamaha FX Ho (FB1800R) Generator Diagram

← All diagrams

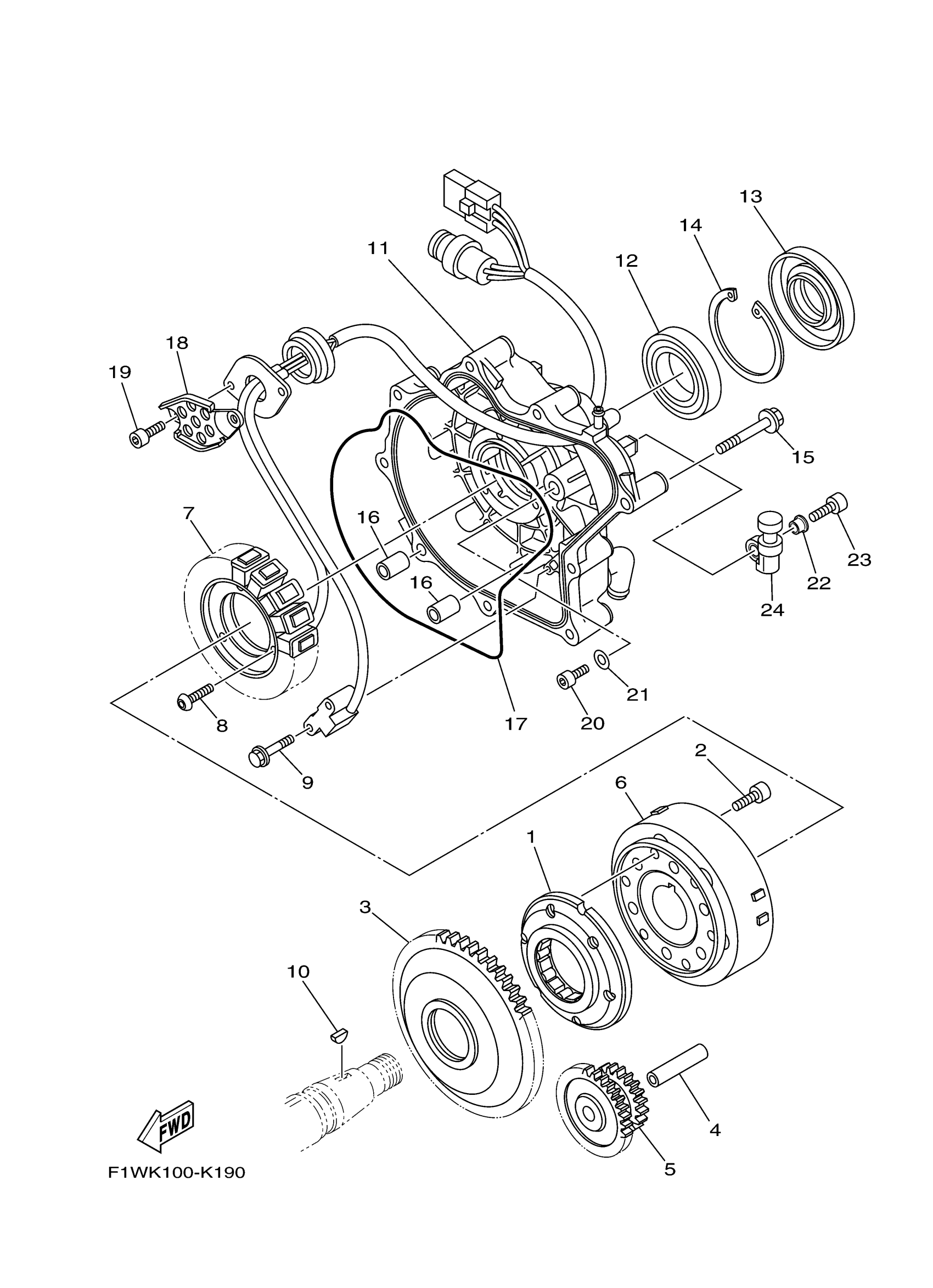

Find the part on the Generator diagram for your 2016 Yamaha FX Ho (FB1800R), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha FX Ho (FB1800R) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ONE-WAY ASSY

6S5-15590-00-00

1

$217.00

In stock

2

BOLT, SOCKET

91317-08020-00

1

$2.34

In stock

3

GEAR 3

6LE-15515-00-00

1

$349.99

In stock

4

SHAFT 1

6S5-15521-00-00

1

$10.49

In stock

5

GEAR, IDLER 2

6S5-15517-00-00

1

$153.99

In stock

6

ROTOR ASSY

6S5-81450-01-00

1

$387.67

In stock

7

STATOR ASSY

6S5-81410-11-00

1

$601.43

In stock

8

SCREW

90149-06182-00

1
Out of stock

9

BOLT, WITH WASHER

97513-05514-00

1

$3.69

In stock

10

KEY, WOODRUFF(1WG)

90280-03047-00

1

$4.86

In stock

11

COVER, FLYWHEEL

6S5-81337-20-00

1

$309.49

In stock

12

BEARING

93306-00809-00

1

$58.35

In stock

13

OIL SEAL

6LE-81167-00-00

1

$58.60

In stock

14

CIRCLIP (70R)

93420-72065-00

1

$7.12

In stock

15

BOLT, FLANGE

90105-08249-00

1

$2.22

In stock

16

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

17

. O-RING

6S5-81168-00-00

1

$34.05

In stock

18

CLAMP

6S5-81328-00-00

1

$8.45

In stock

19

BOLT,SOCKET

91317-06014-00

—
Out of stock

20

BOLT, SOCKET

91317-05010-00

—

$1.68

In stock

21

WASHER, PLATE (7N7)

90201-052E8-00

—

$3.20

In stock

22

COLLAR

90387-06M05-00

1

$7.12

In stock

23

. BOLT

91380-06020-00

1

$2.00

In stock

24

. GROMMET

6S5-81364-11-00

1

$5.08

In stock
