2016 Yamaha FX HO (FB1800R) Control Cable Diagram

← All diagrams

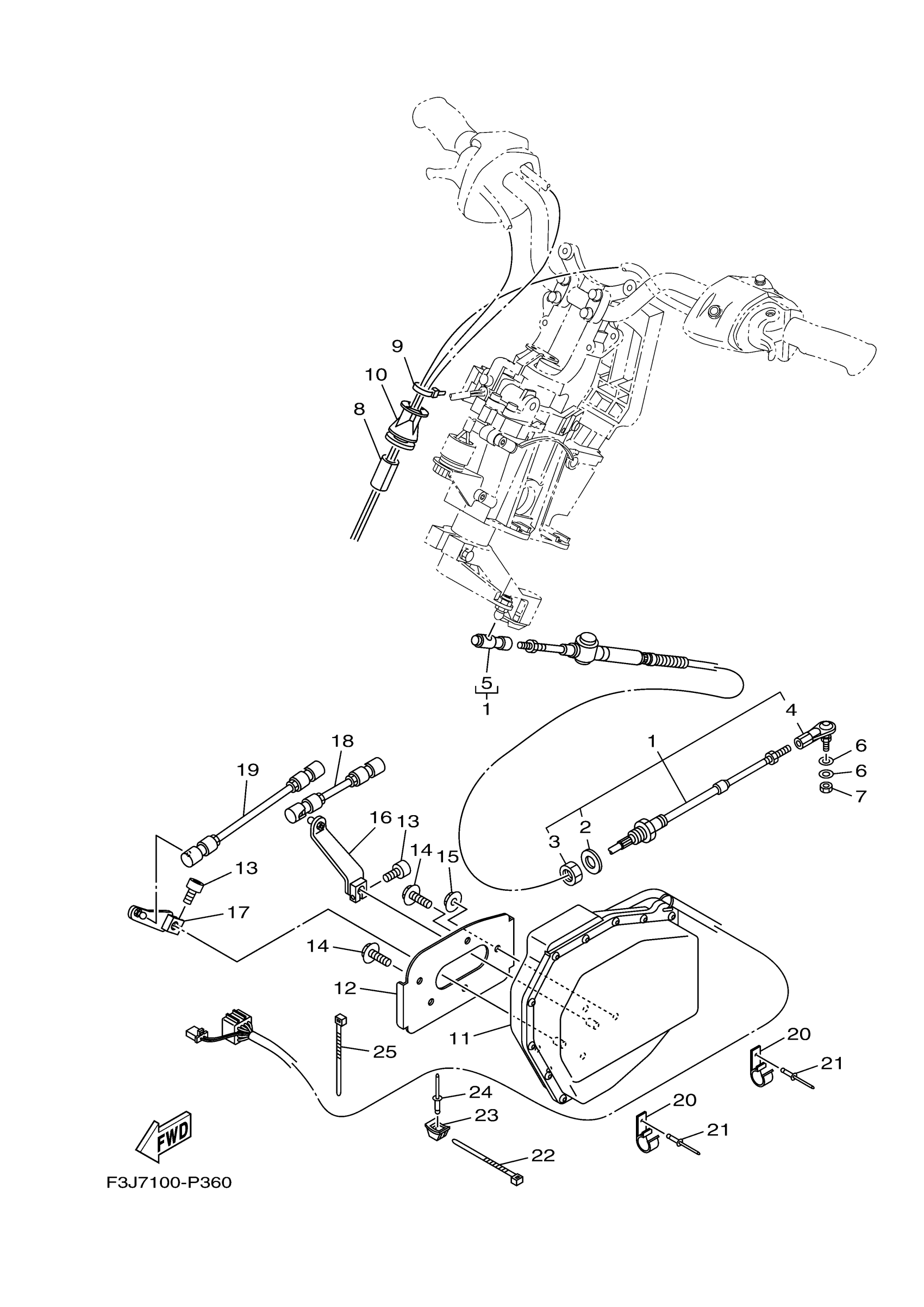

Find the part on the Control Cable diagram for your 2016 Yamaha FX HO (FB1800R), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha FX HO (FB1800R) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F1S-61481-12-00

1

$379.49

In stock

2

. PACKING C

F1B-61438-00-00

1

$2.57

In stock

3

NUT

F1B-6151S-01-00

1

$14.49

In stock

4

. STUD, JOINT BALL

F1B-61461-02-00

1

$85.53

In stock

5

. BALL JOINT ASSY

F2N-61460-00-00

1

$48.49

In stock

6

WASHER, PLATE

90201-06906-00

1

$3.23

In stock

7

NUT

9538R-06700-00

1
Out of stock

8

PACKING, HOSE 2

GJ1-U7578-22-00

—

$1.15

In stock

9

CLAMP

90464-32801-00

1

$1.38

In stock

10

GROMMET

F3J-U822E-01-00

1

$6.31

In stock

11

Motor Assembly

F3J-6140B-04-00

1
Out of stock

12

PLATE

F3Y-U8285-00-00

1

$15.37

In stock

13

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

1

$3.23

In stock

14

BOLT, WITH WASHER

90119-08852-00

1

$4.31

In stock

15

NUT, NYLON (6J8)

95780-08300-00

1

$10.51

In stock

16

TRIM ARM ASSY

F3J-6150E-00-00

1

$79.49

In stock

17

SHIFT ARM ASSY

F3J-6150F-00-00

1

$68.49

In stock

18

ROD ASSY

F3J-6150A-00-00

1

$56.49

In stock

19

ROD ASSY 2

F3J-6150D-00-00

1

$41.17

In stock

20

CLAMP

F3J-U8368-01-00

1

$5.92

In stock

21

RIVET, BLIND

90267-409U5-00

1
Out of stock

22

CLAMP

90464-32801-00

1

$1.38

In stock

23

BASE, CLAMP

F1W-U828M-00-00

1

$1.38

In stock

24

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

25

CLAMP

90464-32801-00

1

$1.38

In stock
