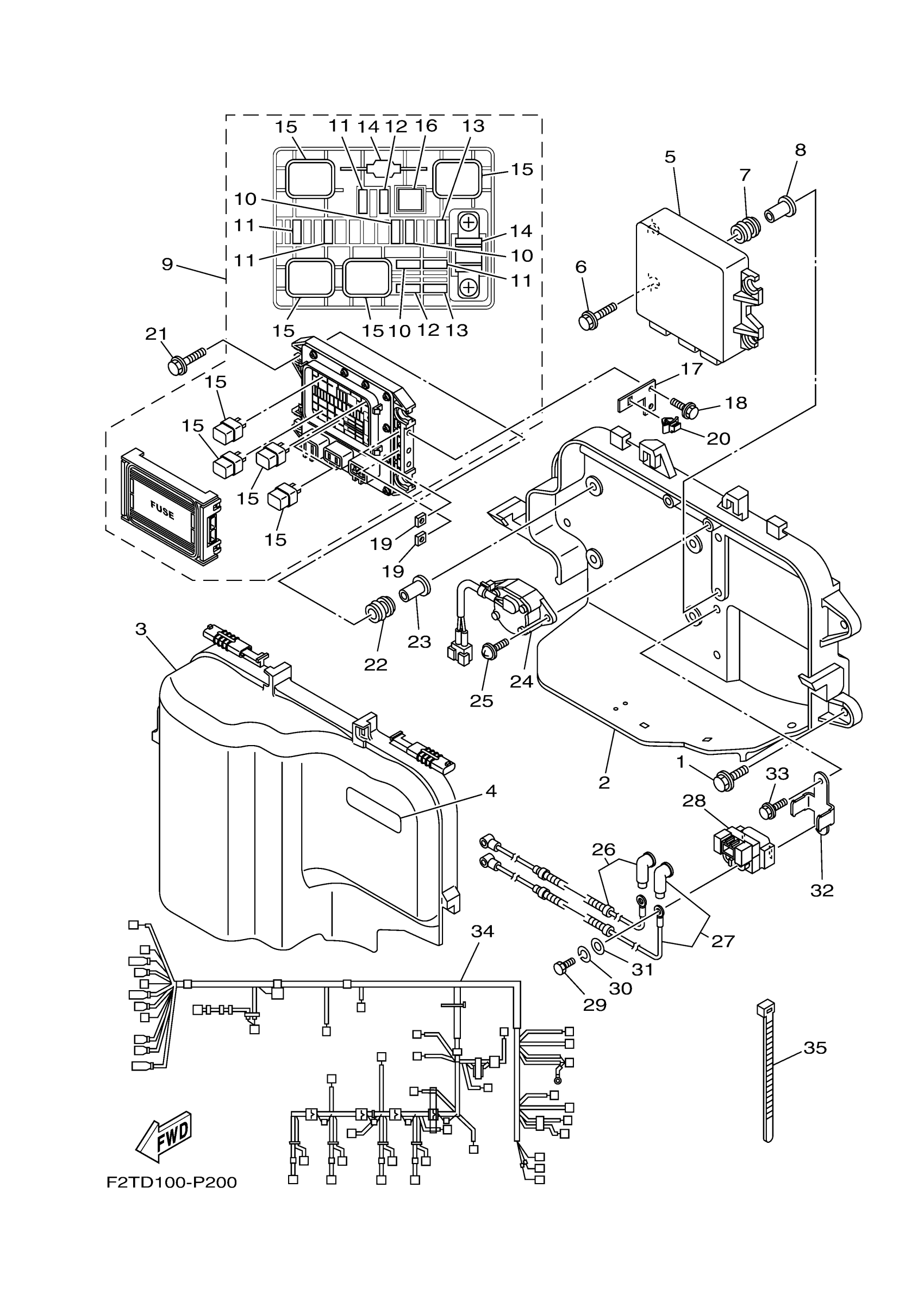

Yamaha FB1800P (FX HO) F2TF 2015 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.29

2

PLATE

6CS-81845-00-00

$88.04

3

COVER

6S5-81942-11-00

Unavailable

4

LABEL, CAUTION 7

60E-83627-00-00

$4.48

5

ENGINE CONTROL UNIT ASSY

6CR-8591A-24-00

$1,835.81

6

BOLT, WITH WASHER

90119-06311-00

$1.72

7

DAMPER, IGNITION C

6A0-82317-01-00

$6.68

8

. COLLAR

90387-06119-00

$4.60

9

FUSE BOX ASSY

6EX-82170-02-00

$195.31

10

. FUSE (3A)

67F-82151-30-00

$4.69

11

. FUSE (10A)

67F-82151-40-00

$6.40

12

FUSE

5JJ-82151-20-00

$5.98

13

FUSE

5JJ-82151-60-00

$5.98

14

. FUSE (50A)

6EX-82151-00-00

$3.58

15

. RELAY ASSY

6EX-8195A-00-00

$15.95

16

. PULLER, FUSE

6EX-2812A-00-00

$1.34

17

PLATE

6CS-82588-00-00

$4.03

18

BOLT, HEXAGON W/W DEEP RECESS

97E95-06514-00

$1.43

19

NUT, SQUARE(1HV)

90173-06015-00

Unavailable

20

CLAMP

90464-09M47-00

$4.25

21

BOLT, WITH WASHER

90119-06311-00

$1.72

22

DAMPER, IGNITION C

6A0-82317-01-00

$6.68

23

. COLLAR

90387-06119-00

$4.60

24

SWITCH ASSY

6S5-8259E-00-00

$162.67

25

SCREW, TAPPING

97780-60520-00

$3.88

26

WIRE, PLUS LEAD

6JP-82115-00-00

$47.75

27

WIRE, LEAD

6CS-82117-00-00

$62.70

28

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

29

BOLT(GH1)

97080-06012-00

$2.56

30

WASHER, SPRING

92995-06100-00

$3.04

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

STAY, RELAY

6CS-81953-00-00

$5.37

33

BOLT, FLANGE

95814-06012-00

$2.13

34

WIRE HARNESS ASSY 1

6CR-8259L-20-00

$1,897.00

35

CLAMP

90465-14M66-00

Unavailable
