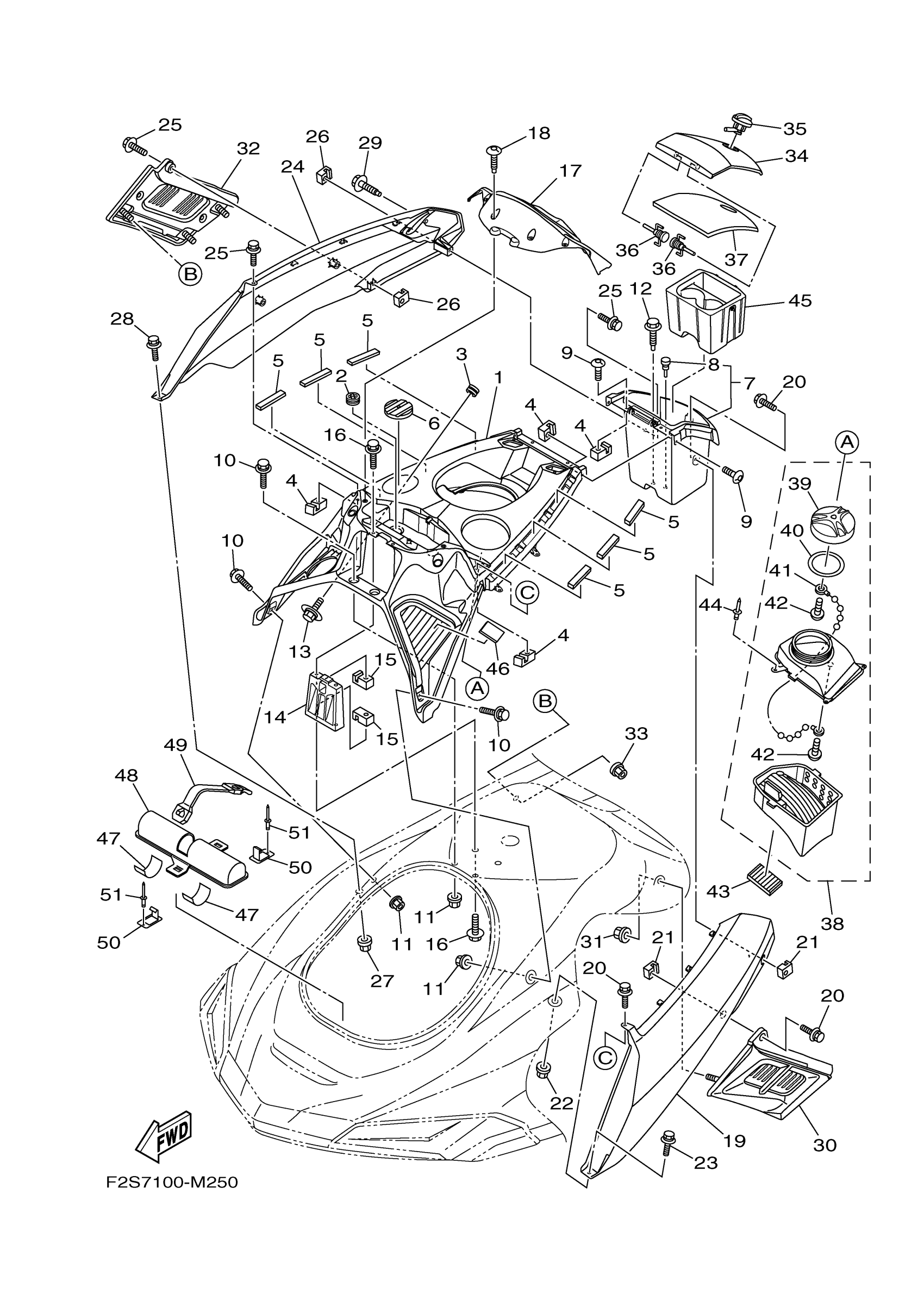

Yamaha FB1800N (FX HO) F2TB 2014 ENGINE HATCH 1 Diagram

#

Description
Price

1

COVER, CENTER

F2S-U5554-02-00

$189.38

2

. DAMPER 1

F1X-U828E-01-00

$2.27

3

. GROMMET

90480-19800-00

$11.48

4

NUT

F1X-U517E-01-00

$7.11

5

DAMPER 2

F0X-U515E-02-00

$0.98

6

MAT

F2S-U3844-00-00

$1.67

7

GLOVE BOX HATCH ASSY.

F2S-U1708-02-00

$112.11

8

. PLUG

90605-502U2-00

$2.42

9

SCREW

F2N-67823-10-00

$2.02

10

BOLT, WITH WASHER

90119-06880-00

$3.52

11

NUT, LOCK

F2N-U142L-00-00

$1.00

12

BOLT,WITH WASHER

90119-068B8-00

$28.70

13

BOLT, WITH WASHER

90119-05803-00

$4.01

14

HOOK,LID LOCK

F2S-U517F-00-00

$12.11

15

NUT

F1X-U517E-01-00

$7.11

16

BOLT, WITH WASHER

90119-06880-00

$3.52

17

COVER METER (BMG)

F2S-U8262-01-P0

$81.80

18

SCREW

F2S-U13C1-00-00

$2.36

19

COVER,SIDE 1 (BMG)

F2S-U377B-02-P3

$160.59

19

COVER,SIDE 1 (DPBMT)

F2S-U377B-02-P5

Unavailable

20

BOLT, WITH WASHER

90119-06880-00

$3.52

21

NUT

F1X-U517E-01-00

$7.11

22

NUT, LOCK

F2N-U142L-00-00

$1.00

23

BOLT, WITH WASHER

90119-06880-00

$3.52

24

COVER,SIDE 2 (BMG)

F2S-U377C-02-P3

Unavailable

24

COVER,SIDE 2 (DPBMT)

F2S-U377C-02-P5

Unavailable

25

BOLT, WITH WASHER

90119-06880-00

$3.52

26

NUT

F1X-U517E-01-00

$7.11

27

NUT, LOCK

F2N-U142L-00-00

$1.00

28

BOLT, WITH WASHER

90119-06880-00

$3.52

29

BOLT,WITH WASHER

90119-068B8-00

$28.70

30

SIDE ORNAMENT ASSY 1

F2S-U370J-00-00

$81.80

31

NUT, LOCK

F2N-U142L-00-00

$1.00

32

SIDE ORNAMENT ASSY 2

F2S-U370K-00-00

$81.80

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

LID HATCH

F2S-U517H-00-00

$86.69

35

LOCK

F1X-62875-01-00

Unavailable

36

PIN, HINGE

F1B-6517R-00-00

$5.55

37

PACKING CASE

F2S-U519D-00-00

$17.94

38

CASE ASSY 1

F2S-U591A-00-00

$39.38

39

. CAP,CASE

F1W-U591C-01-00

$4.46

40

. PACKING,CASE

F1W-U591D-00-00

$2.58

41

. CHAIN BALL

F2S-U7835-01-00

$3.71

42

. SCREW (FL66314300)

F2S-U316C-00-00

$1.52

43

MAT 2

F1K-U759C-00-00

$1.72

44

RIVET, BLIND

90267-48807-00

$2.07

45

HOLDER, DRINK

F2S-U5633-00-00

$75.74

46

MAT 2

GJ1-U759C-00-00

$30.29

47

MAT 2

F1K-U759C-00-00

$1.72

48

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

49

BAND 1

F2P-U828K-00-00

$5.87

50

HOOK A

F1K-U5772-04-00

$6.29

51

RIVET (EU0)

90267-48938-00

$5.00
