2012 Yamaha FX Ho (FB1800L) Engine Mount Diagram

← All diagrams

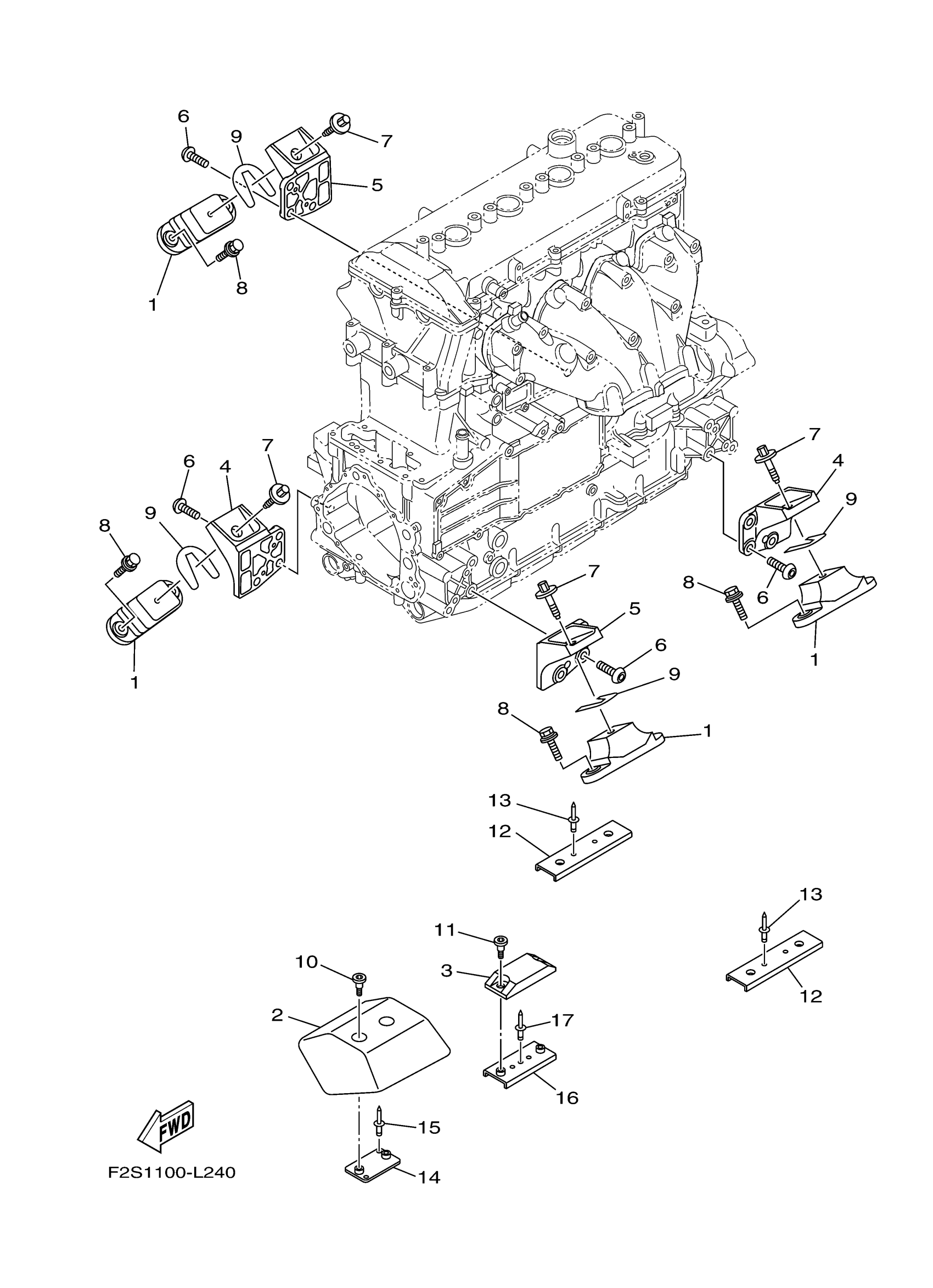

Find the part on the Engine Mount diagram for your 2012 Yamaha FX Ho (FB1800L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha FX Ho (FB1800L) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOUNT RUBBER

67X-44517-10-00

1
Out of stock

2

STOPPER, UPPER MOUNT

6BH-G4532-00-00

1
Out of stock

3

STOPPER, LOWER MOUNT RUBBER

6BH-G4574-00-00

1
Out of stock

4

BRACKET 1

6BH-41661-00-00

1
Out of stock

5

BRACKET 2

6BH-41662-00-00

1
Out of stock

6

SCREW

90149-10052-00

1
Out of stock

7

BOLT, WITH WASHER

90119-08860-00

1
Out of stock

8

BOLT, WITH WASHER

90119-08829-00

1
Out of stock

9

SHIM (T=0.1)

EU0-67354-A0-00

1
Out of stock

9

SHIM (T=0.3)

EU0-67354-B0-00

1
Out of stock

9

SHIM (T=0.5)

EU0-67354-C0-00

1
Out of stock

9

SHIM (T=1.0)

EU0-67354-D0-00

1
Out of stock

9

SHIM (T=2.0)

EU0-67354-E0-00

1
Out of stock

10

BOLT

90109-06874-00

1
Out of stock

11

BOLT

90109-06875-00

1
Out of stock

12

PLATE

F2S-U732B-00-00

1
Out of stock

13

RIVET, BLIND

90267-489U2-00

1
Out of stock

14

PLATE

F2S-U732B-10-00

1
Out of stock

15

RIVET, BLIND

90267-489U2-00

1
Out of stock

16

PLATE

F2M-U732B-00-00

1
Out of stock

17

RIVET, BLIND

90267-489U2-00

1
Out of stock
