Partiron

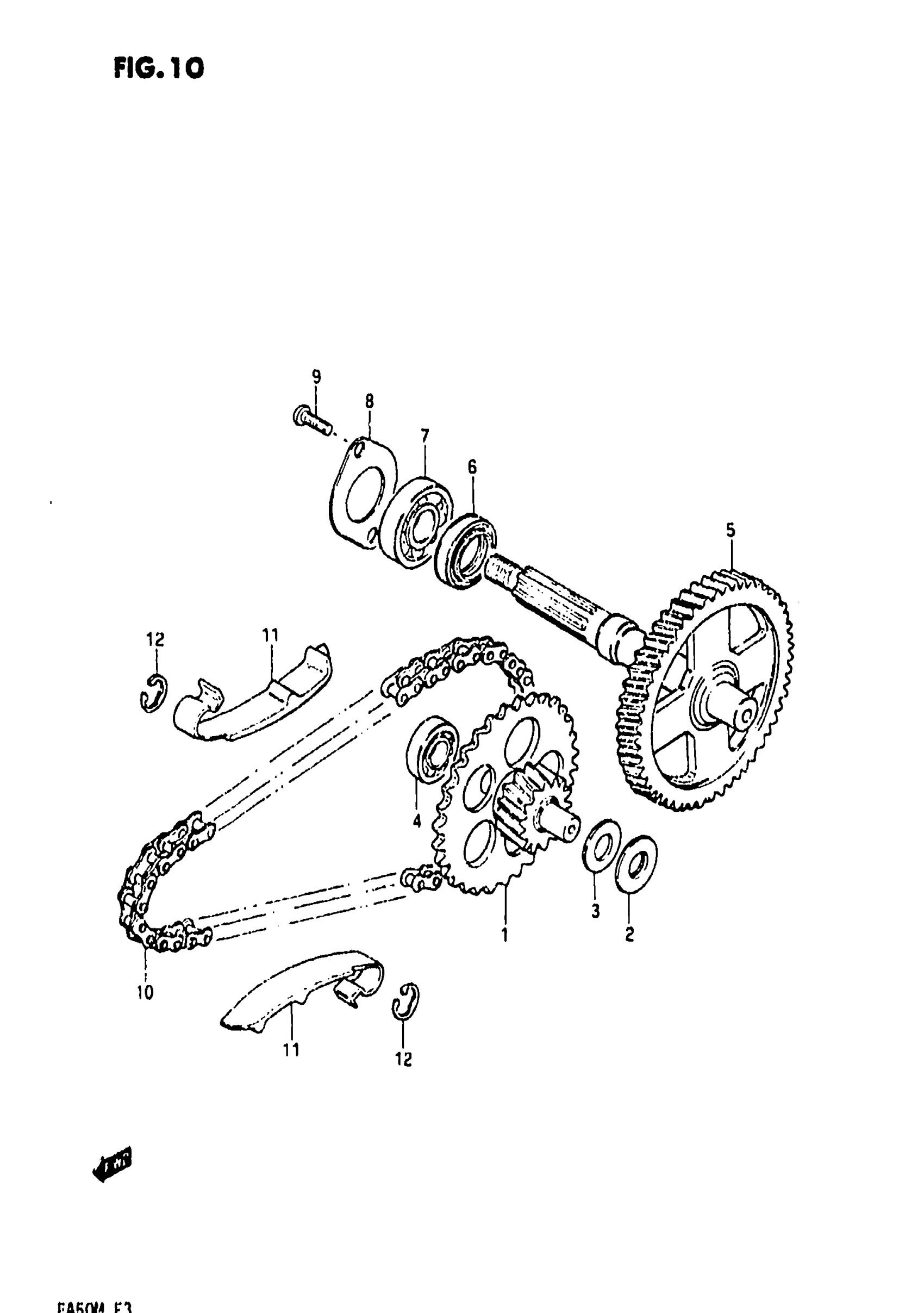

Suzuki FA50 (1991) FINAL DRIVE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 24210-02200.

24210-02201

Unavailable

2

WASHER

08211-12241

$2.07

3

SHIM (T:0.2)

08221-12204

$2.58

4

BEARING (12X28X8) This part replaces 08110-60010.

09262-12001

$16.90

5

NO DESCRIPTION AVAILABLE This part replaces 24130-02202.

24130-02203

Unavailable

6

OIL SEAL (22x37x7)

09283-22014

$7.38

7

BEARING

08130-62037

Unavailable

8

RETAINER

24751-02300

Unavailable

9

SCREW

02112-06167

$1.43

10

NO DESCRIPTION AVAILABLE This part replaces 27600-02311.

27600-06430-064

Unavailable

11

TENSIONER, CHAIN

27631-02300

Unavailable

12

.E-RING This part replaces 08332-11088.

08332-1108A

$1.77
