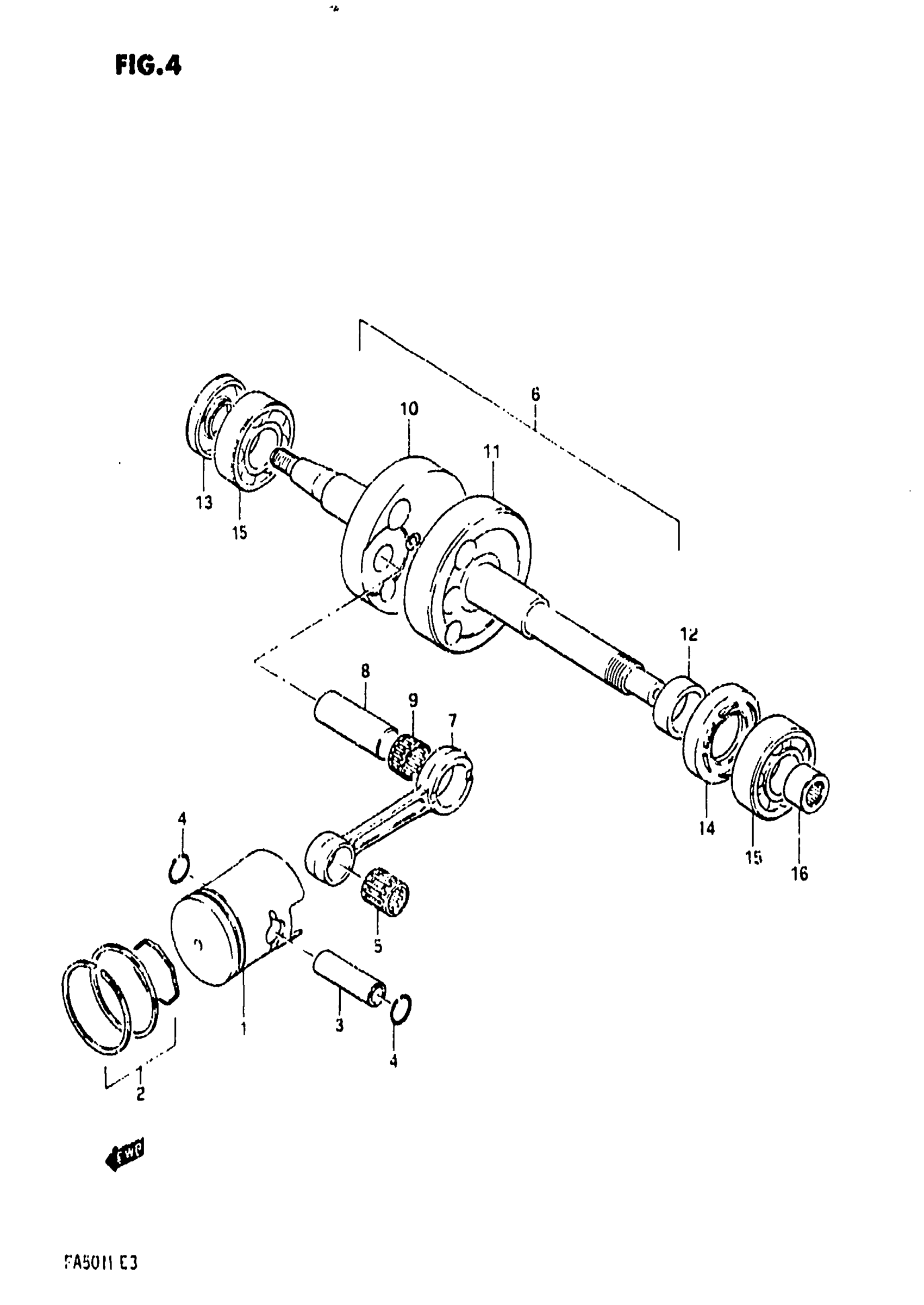

Suzuki FA50 (1991) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12110-43000

$66.02

1

PISTON SET (OS:0.5) | OPT This part replaces 12110-43000-050.

12100-35611-050

$73.37

1

PISTON SET (OS:1.0) | OPT This part replaces 12110-43000-100.

12100-35611-100

$104.95

2

RING SET, PISTON (STD) This part replaces 12140-43000.

12140-16B10

$20.49

2

RING SET, PISTON (OS:0.5) | OPT

12140-46110-050

$30.98

2

RING SET, PISTON (OS:1.0) | OPT

12140-46110-100

$32.03

3

PIN, PISTON

12151-04700

$6.61

4

SNAP RING

09381-12001

$1.43

5

BEARING (12X16X16) This part replaces 09263-12020.

09263-12023

$9.20

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 12 This part replaces 12200-02200.

12200-02201

Unavailable

7

ROD, CONNECTING

12161-04001

$84.90

8

PIN, CRANK

12211-02300

Unavailable

9

BEARING, CRANK PIN

09263-15014

$15.00

10

CRANKSHAFT, RH

12221-02202

Unavailable

11

CRANKSHAFT, LH

12261-02201

Unavailable

12

SPACER

09180-20021

$10.80

13

OIL SEAL, RH

09283-20034

$4.66

14

OIL SEAL, LH

09283-26015

$5.58

15

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$21.00

16

BEARING, LH

09262-12001

$16.90
