1991 Suzuki FA50 Center Stand-Footrest Diagram

← All diagrams

Find the part on the Center Stand-Footrest diagram for your 1991 Suzuki FA50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

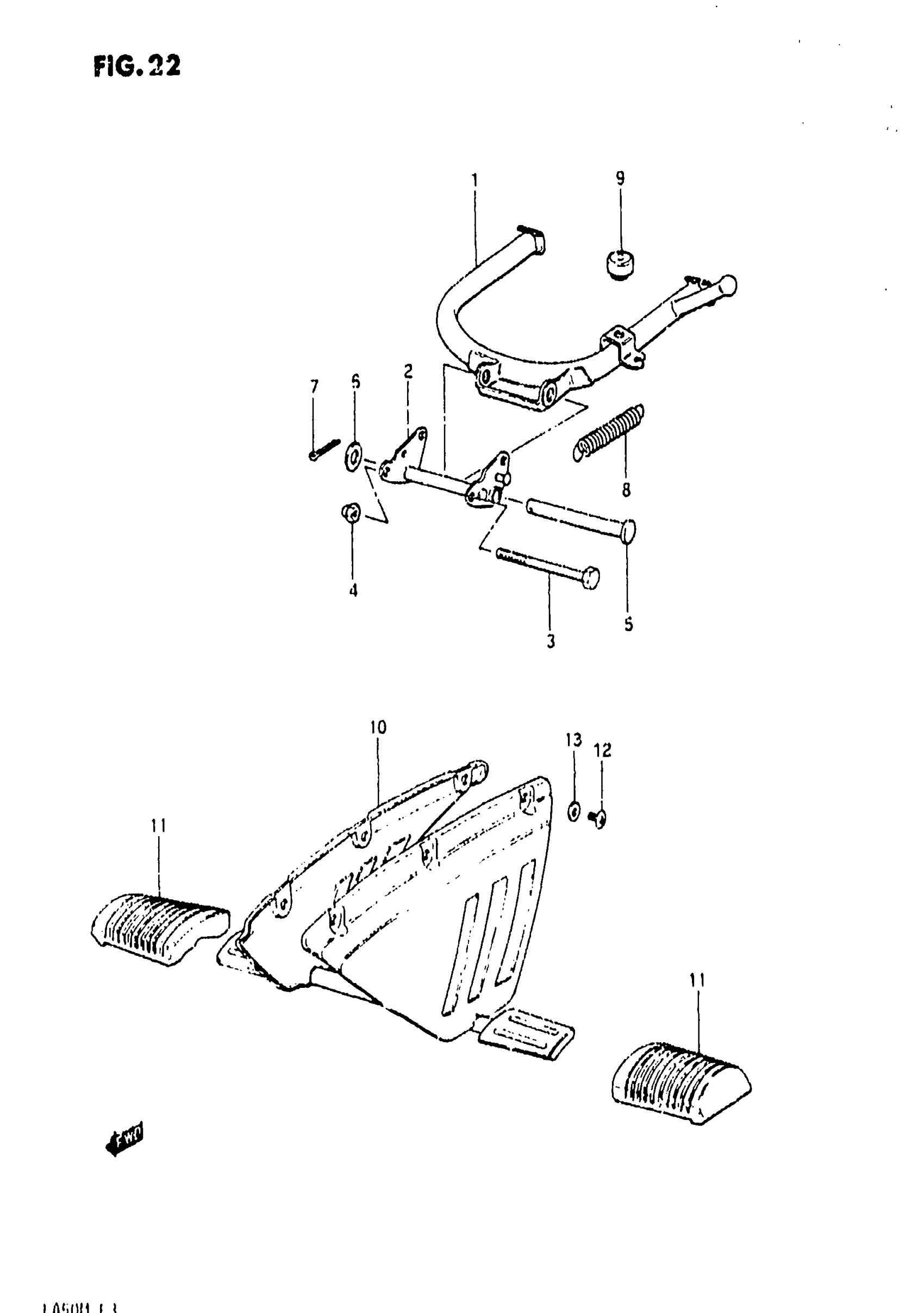

1991 Suzuki FA50 Center Stand-Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, CENTER

42100-02200

1
Out of stock

2

BRACKET

42270-02400

1
Out of stock

3

BOLT This part replaces 09100-06057.

01500-0685B

2
Out of stock

4

NUT This part replaces 08319-31066.

08319-31067

2
Out of stock

5

SHAFT

42211-02400

1
Out of stock

6

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

7

1

$1.31

In stock

8

SPRING

09443-14017

1
Out of stock

9

CUSHION

09321-10002

1
Out of stock

10

BAR, FOOTREST (BLACK) | MODEL Z/D/F/G This part replaces 43510-02200-163.

43510-02200-019

1
Out of stock

10

BAR, FOOTREST (BLACK) | MODEL D/E/F/G This part replaces 43510-02200-14C.

43510-02200-019

1
Out of stock

10

BAR, FOOTREST (BLACK) | MODEL D/E/F/G This part replaces 43510-02200-08Y.

43510-02200-019

1
Out of stock

10

BAR, FOOTREST (BLACK) | MODEL H/J/K/L/M

43510-02200-019

1
Out of stock

10

BAR, FOOTREST (BLACK) | MODEL H This part replaces 43510-02200-10J.

43510-02200-019

1
Out of stock

10

BAR, FOOTREST (BLACK) | MODEL H This part replaces 43510-02200-33L.

43510-02200-019

1
Out of stock

10

BAR, FOOTREST (BLACK) | MODEL J/K/L/M This part replaces 43510-02200-14C.

43510-02200-019

1
Out of stock

10

BAR, FOOTREST (BLACK) | MODEL J/K/L/M This part replaces 43510-02200-19F.

43510-02200-019

1
Out of stock

11

RUBBER

43551-02200

2

$13.65

In stock

12

SCREW

02142-06108

6
Out of stock

13

WASHER This part replaces 08322-21067.

08322-01067

6
Out of stock
