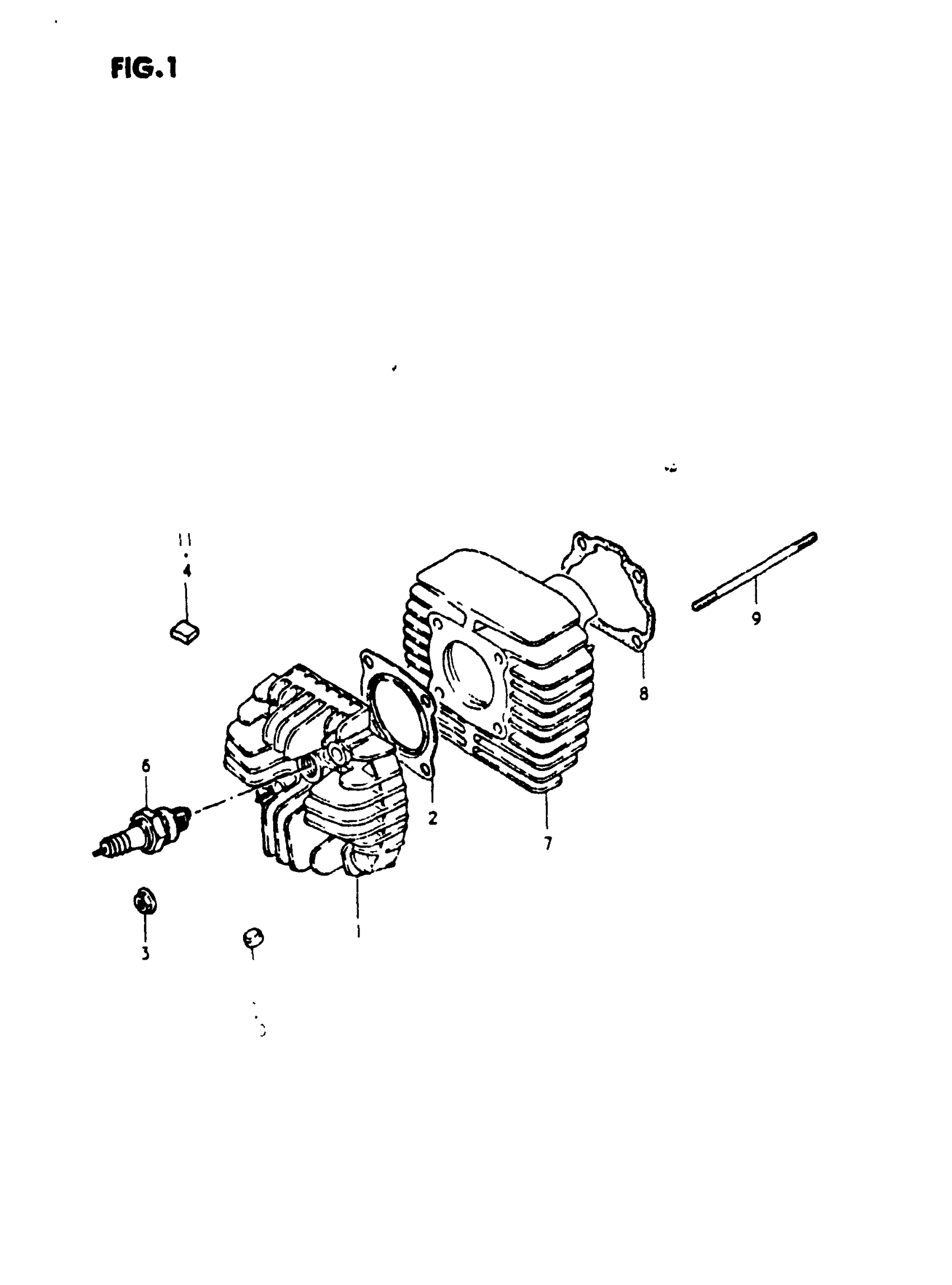

Suzuki FA50 (1981) CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER This part replaces 11111-02500.

11111-02511

Unavailable

2

GASKET

11141-06110

$4.75

3

NUT This part replaces 08316-16068.

08319-31067

$2.01

4

RUBBER PAD (N4) This part replaces 11151-08400.

11251-46150

$7.40

5

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.67

6

SPARK PLUG BP4H This part replaces 09482-00170.

09482-00291

$3.98

6

SPARK PLUG (ND, W14FP-UL)

09482-00171

Unavailable

7

CYLINDER | 50X

11211-02303

Unavailable

7

CYLINDER

11210-02410

Unavailable

8

GASKET,CYLINDER This part replaces 11241-02300.

11241-02310

$4.11

9

STUD BOLT (L:90) This part replaces 01421-06908.

09108-06108

$3.38

10

RUBBER PAD (12)

11252-02300

Unavailable
