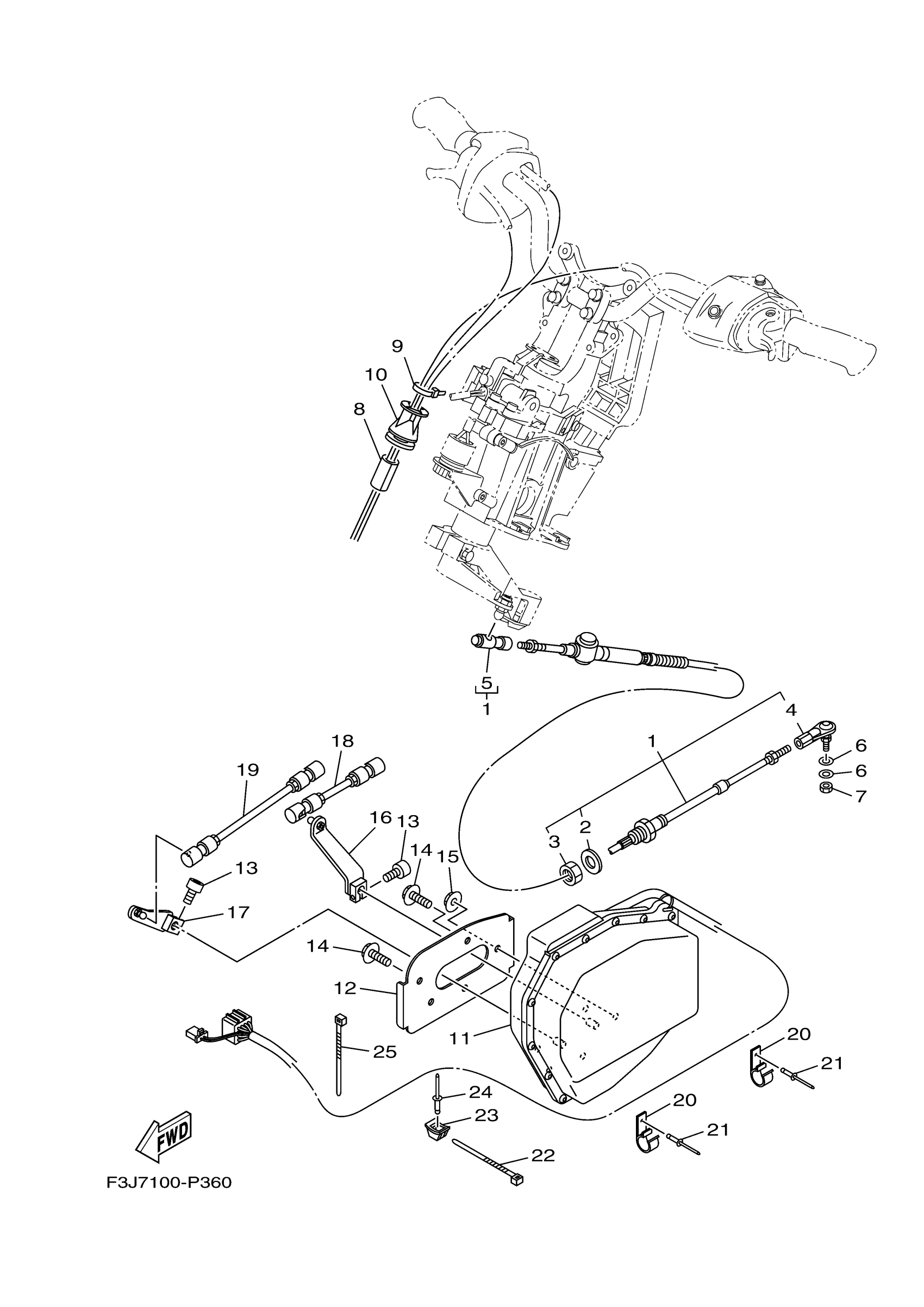

Yamaha FA1800P (FX SHO) F2SN 2015 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F1S-61481-12-00

$284.39

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.01

8

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

9

CLAMP

90464-32801-00

$1.23

10

GROMMET

F3J-U822E-01-00

$5.59

11

Motor Assembly

F3J-6140B-04-00

Unavailable

12

PLATE

F3Y-U8285-00-00

$15.14

13

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

14

BOLT, WITH WASHER

90119-08852-00

$3.79

15

NUT, NYLON (6J8)

95780-08300-00

$10.55

16

TRIM ARM ASSY

F3J-6150E-00-00

$78.77

17

SHIFT ARM ASSY

F3J-6150F-00-00

$68.17

18

ROD ASSY

F3J-6150A-00-00

$56.05

19

ROD ASSY 2

F3J-6150D-00-00

$38.52

20

CLAMP

F3J-U8368-00-00

Unavailable

21

RIVET, BLIND

90267-409U5-00

Unavailable

22

CLAMP

90464-32801-00

$1.23

23

BASE, CLAMP

F1W-U828M-00-00

$1.23

24

RIVET, BLIND

90267-48802-00

$1.98

25

CLAMP

90464-32801-00

$1.23
