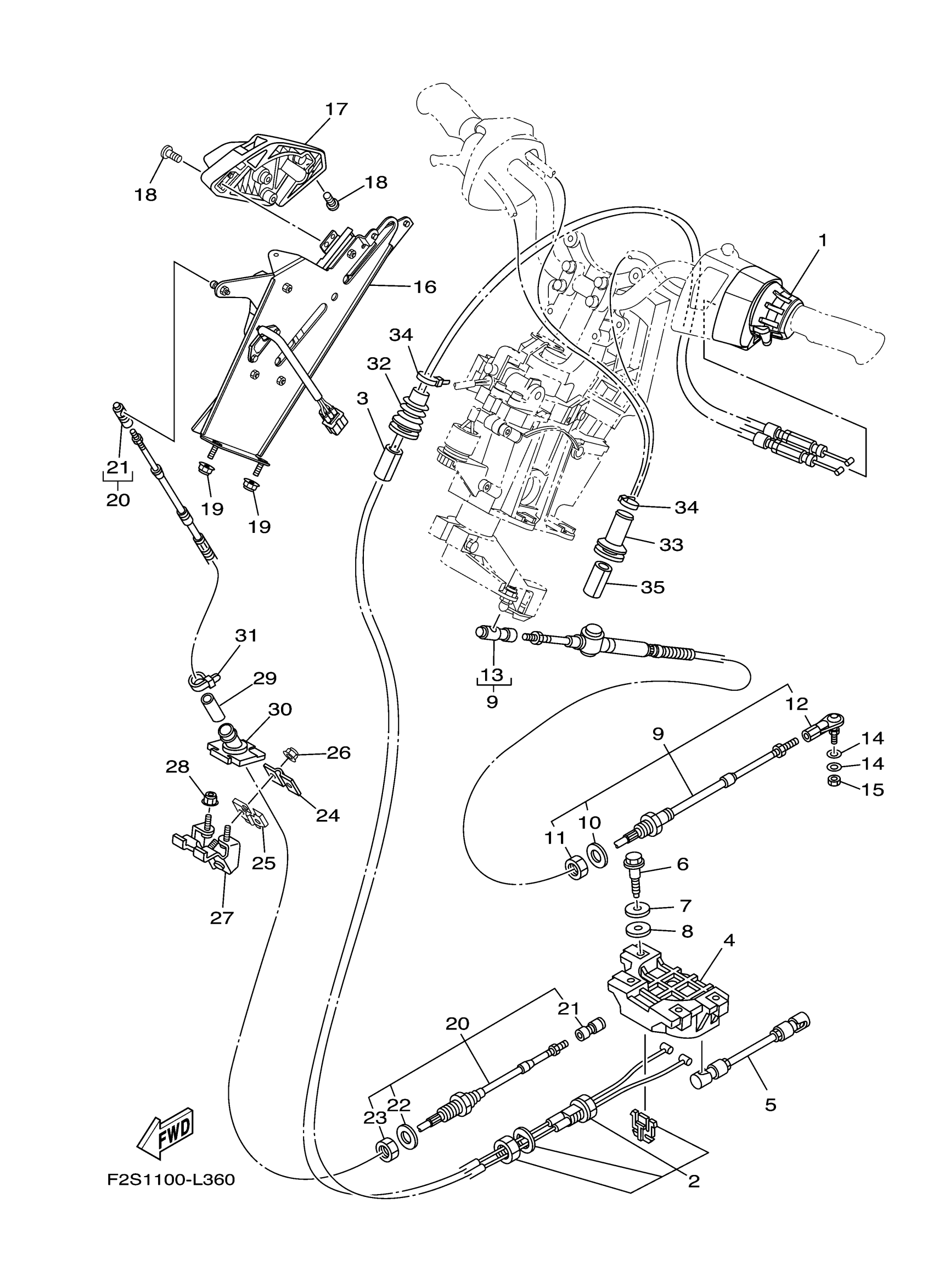

Yamaha FA1800N (FX SHO) F2SG 2014 CONTROL CABLE Diagram

#

Description
Price

1

NOZZLE,CONTROL ASSY

F2S-6153A-00-00

$158.19

2

CABLE,NOZZLE CONTROL 3

F2S-6153E-00-00

$691.03

3

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

4

REMOCON,NOZZLE 2

F1W-6153J-01-00

Unavailable

5

ROD ASSY

F1W-6150A-00-00

$179.09

6

BOLT

90109-06233-00

$122.37

7

WASHER, PLATE

90201-099U3-00

$2.30

8

WASHER, PLATE

90202-08002-00

$2.58

9

CABLE, STEERING

F1S-61481-12-00

$284.39

10

. PACKING C

F1B-61438-00-00

$2.47

11

NUT

F1B-6151S-01-00

$13.63

12

. STUD, JOINT BALL

F1B-61461-02-00

$90.48

13

. BALL JOINT ASSY

F2N-61460-00-00

$47.75

14

WASHER, PLATE

90201-06906-00

$2.80

15

NUT

9538R-06700-00

$1.07

16

REMOCON. LEVER ASSY.

F2S-6134A-02-00

Unavailable

17

GRIP

F2S-62714-00-00

$98.49

18

SCREW, BINDING

90154-06016-00

Unavailable

19

NUT, LOCK

F2N-U142L-00-00

$1.00

20

CABLE,REVERSE

F2S-U149C-01-00

$75.04

21

. STUD, JOINT BALL

F0V-U1461-00-00

$43.27

22

. PACKING C

F2S-U1438-00-00

$1.42

23

. NUT

F2S-U151S-00-00

$1.64

24

STOPPER, CABLE

GH1-61468-01-00

$8.19

25

HOLDER, STOPPER

GU5-6146K-10-00

$86.55

26

NUT, LOCK

F2N-U142L-00-00

$1.00

27

BRACKET,STOPPER CABLE

F2S-U1467-10-00

$17.90

28

NUT, LOCK

F2N-U142L-00-00

$1.00

29

PACKING, CABLE

F1W-U146G-00-00

$1.51

30

PACKING, CABLE

F2S-U146G-10-00

Unavailable

31

CLAMP

90465-10098-00

$2.24

32

GROMMET

F0D-6822E-00-00

$18.49

33

GROMMET

GU2-6822E-01-00

$24.61

34

BAND

90601-200U1-00

$2.77

35

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable
