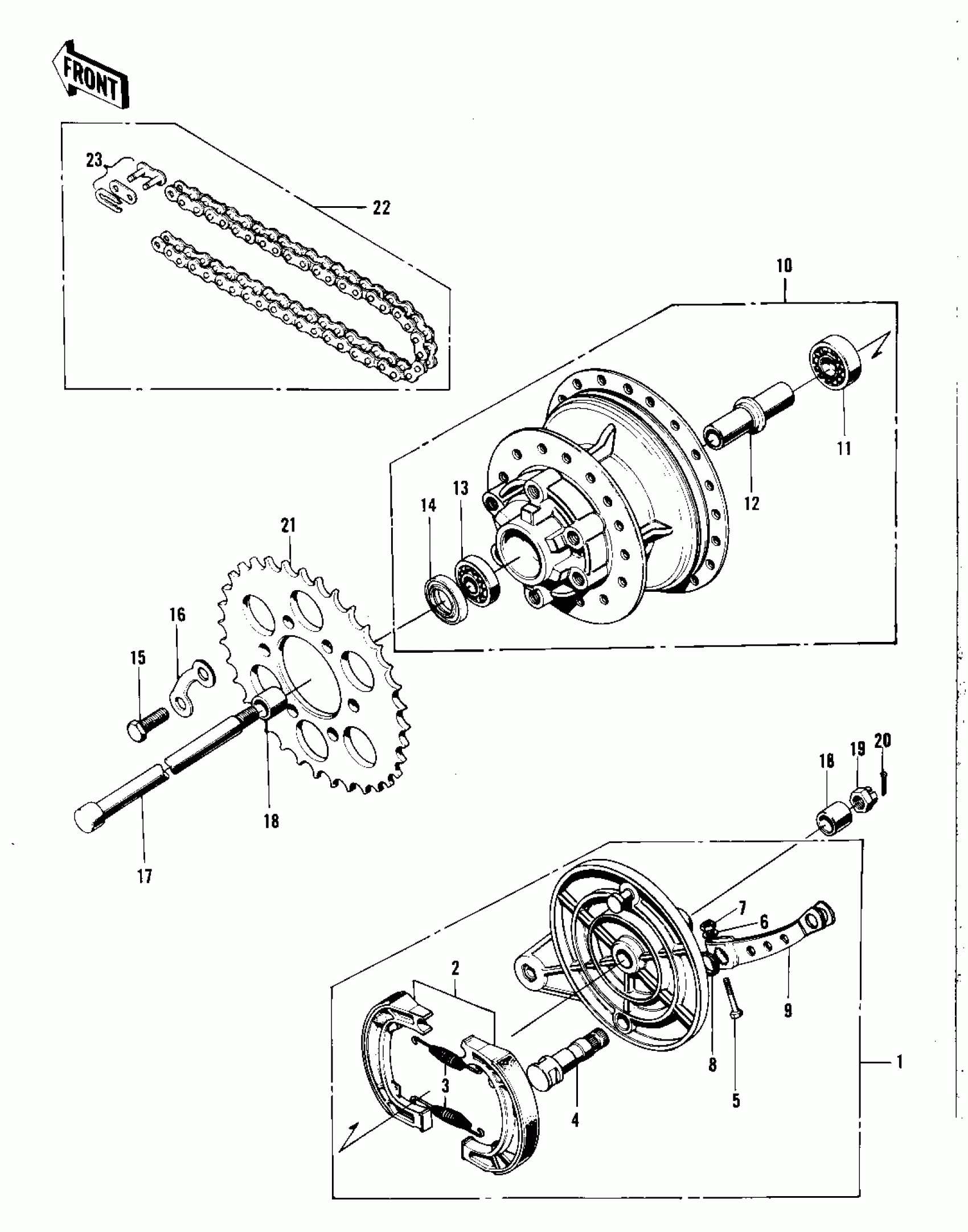

Kawasaki F8-A REAR HUB/BRAKE/CHAIN ('71 F81M) Diagram

#

Description
Price

1

PANEL-ASY,RR BRK,BLK

42006-016-21

Unavailable

1

PANEL-ASY,RR BRK,BLK

42006-016-21

Unavailable

2

SHOE,BRAKE

42019-011

$38.11

2

SHOE,BRAKE

42019-011

$38.11

3

SPRING,BRAKE SHOE

42020-004

$6.75

4

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

4

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

5

BOLT-UPSET,6X40

112G0640

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

7

NUT 6MM

311B0600

Unavailable

8

SEAL,BRAKE CAM

41051-001

$3.39

9

LEVER,REAR BRAKE CAM

42029-037

Unavailable

9

LEVER,REAR BRAKE CAM

42029-037

Unavailable

10

DRUM ASSY-REAR BRAKE

42005-019

$218.85

11

BEARING BALL #6303Z

601B6303Z

Unavailable

12

.SPACER-RR HUB BEARIN

42010-015

$11.86

13

BEARING-BALL,#6303C3

601B6303

$6.58

14

OIL SEAL FRONT AXLE

654A254708

$29.84

15

BOLT-HEX HEAD,10X25

92001-087

Unavailable

16

WASHER LOCK

92088-007

$12.61

17

AXLE-REAR

42031-030

$30.88

18

COLLAR-REAR AXLE

42032-031

$7.42

19

NUT,CASTLE,16MM

42045-014

$7.86

20

PIN-COTTER,4.0X35

550D4035

$1.81

21

REAR SPROCKET,45T

42041-088

$97.68

21

REAR SPROCKET,45T

42041-113

$129.08

21

RR SPROCKET 43T (OPT

42041-089

$99.78

21

REAR SPROCKET,43T

42041-112

$107.83

21

RR SPROCKET 47T (OPT

42041-090

$102.15

21

REAR SPROCKET,47T

42041-114

$117.32

22

UNAVAILABLE IN PRICE BOOK

695Z5296

Unavailable

23

CHAIN JOINT 525

92058-006

Unavailable
