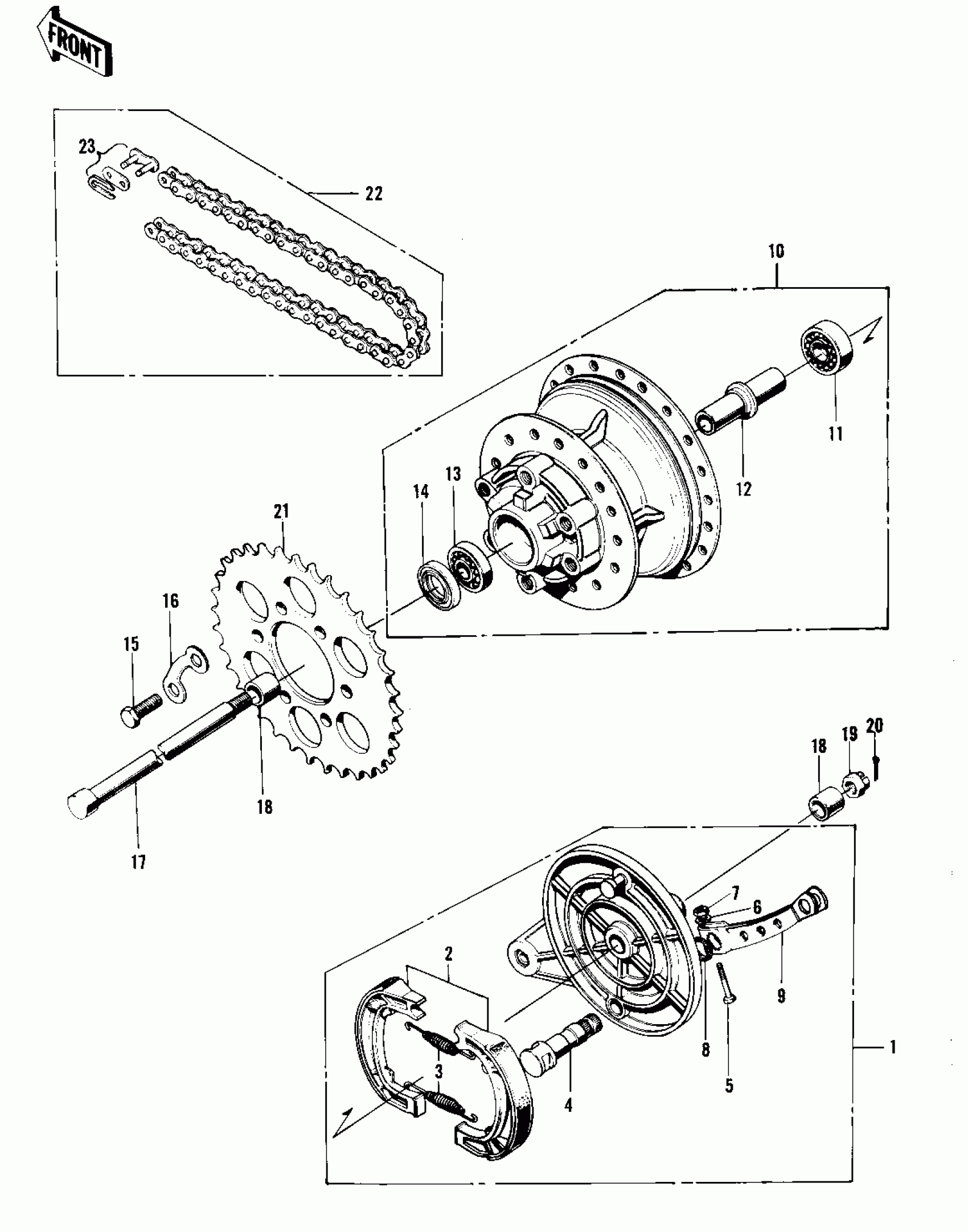

Kawasaki F8-A REAR HUB/BRAKE/CHAIN ('71-'72 F8/F8-A) Diagram

#

Description
Price

1

PANEL-ASY,RR BRK,BLK

42006-016-21

Unavailable

1

PANEL-ASY,RR BRK,BLK

42006-016-21

Unavailable

2

SHOE,BRAKE

42019-011

$37.39

2

SHOE,BRAKE

42019-011

$37.39

3

SPRING,BRAKE SHOE

42020-004

$8.51

4

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

4

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

5

BOLT-UPSET,6X40

112G0640

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

7

NUT 6MM

311B0600

Unavailable

8

SEAL,BRAKE CAM

41051-001

$4.26

9

LEVER,REAR BRAKE CAM

42029-037

Unavailable

9

LEVER,REAR BRAKE CAM

42029-037

Unavailable

10

DRUM ASSY-REAR BRAKE

42005-019

$217.01

11

BEARING BALL #6303Z

601B6303Z

$22.31

12

.SPACER-RR HUB BEARIN

42010-015

$11.42

13

BEARING-BALL,#6303C3

601B6303

$8.29

14

OIL SEAL FRONT AXLE

654A254708

$29.08

15

BOLT-HEX HEAD,10X25

92001-087

Unavailable

16

WASHER LOCK

92088-007

$11.42

17

AXLE-REAR

42031-030

$30.08

17

AXLE-REAR

42031-030

$30.08

18

COLLAR-REAR AXLE

42032-020

$7.14

18

COLLAR-REAR AXLE

42032-031

$7.14

19

NUT,CASTLE,16MM

42045-014

$7.65

20

PIN-COTTER,4.0X35

550D4035

$1.50

21

REAR SPROCKET,45T

42041-088

$96.42

21

REAR SPROCKET,45T

42041-113

Unavailable

21

RR SPROCKET 43T (OPT

42041-089

Unavailable

21

REAR SPROCKET,43T

42041-112

Unavailable

21

RR SPROCKET 47T (OPT

42041-090

Unavailable

21

REAR SPROCKET,47T

42041-114

Unavailable

22

UNAVAILABLE IN PRICE BOOK

695Z5296

Unavailable

23

CHAIN JOINT 525

92058-006

Unavailable
