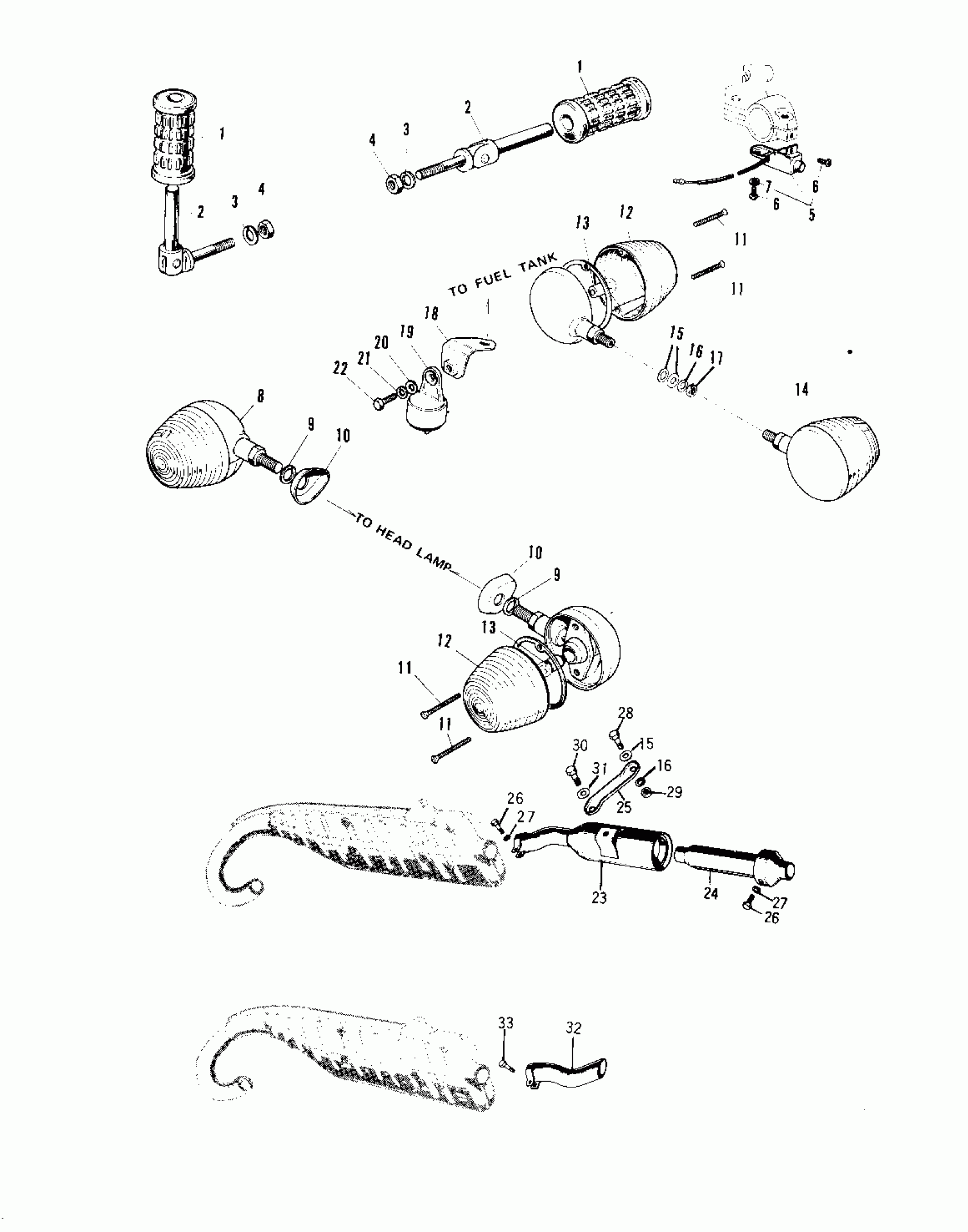

Kawasaki F8-A OPTIONAL PARTS Diagram

#

Description
Price

1

RUBBER REAR FOOTREST

92076-008

Unavailable

2

FOOTREST BAR REAR

34027-013

Unavailable

3

WASHER SPRING 10MM

461F1000

Unavailable

4

NUT-HEX-FINE,10MM

314B1000

Unavailable

5-7

SWITCH ASSY-ENG STOP

46027-006

Unavailable

6

SCREW-PAN-CROS,3X6

220B0306

Unavailable

7

WASHER SPRING 3MM

461F0300

Unavailable

8

LAMP-FRONT TURN SIG

23040-032

$55.34

9

WASHER-PLAIN,10MM

411B1000

Unavailable

10

DAMPER RUBBER

92075-058

Unavailable

11

SCREW OVL CNTSNK 3X15

222B0315A

Unavailable

12

LENS TURN SIGNAL LAMP

23048-011

$15.64

13

BULB,6V 8W

92069-042

Unavailable

14

LAMP-REAR TURN SIGNA

23043-030

$45.12

15

WASHER PLAIN 10MM

410B1000

Unavailable

16

WASHER SPRING 10MM

461F1000

Unavailable

17

NUT-HEX-FINE,10MM

315B1000

Unavailable

18

BRACKET-TRN.SGNL.RLY

27023-001

Unavailable

19

RELAY-TURN SIGNAL

27002-009

Unavailable

20

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

21

WASHER SPRING 6MM

461F0600

Unavailable

22

SCREW-PAN-CROS,6X16

220B0616

Unavailable

23

TAIL PIECE

18048-013

$34.37

24

SPARK ARRESTER COMP

18033-044

$37.58

25

BRACKET-MUFFLER

18024-016

$6.36

26

BOLT,6X10

112G0610

Unavailable

27

WASHER LOCK 6MM

464H0600

Unavailable

28

BOLT-HEX HEAD,10X35

110B1035

Unavailable

29

NUT 10MM

312B1000

$1.00

30

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

31

WASHER SPRING 8MM

461F0800

Unavailable

32

TAIL PIECE

18048-016

Unavailable

33

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40
