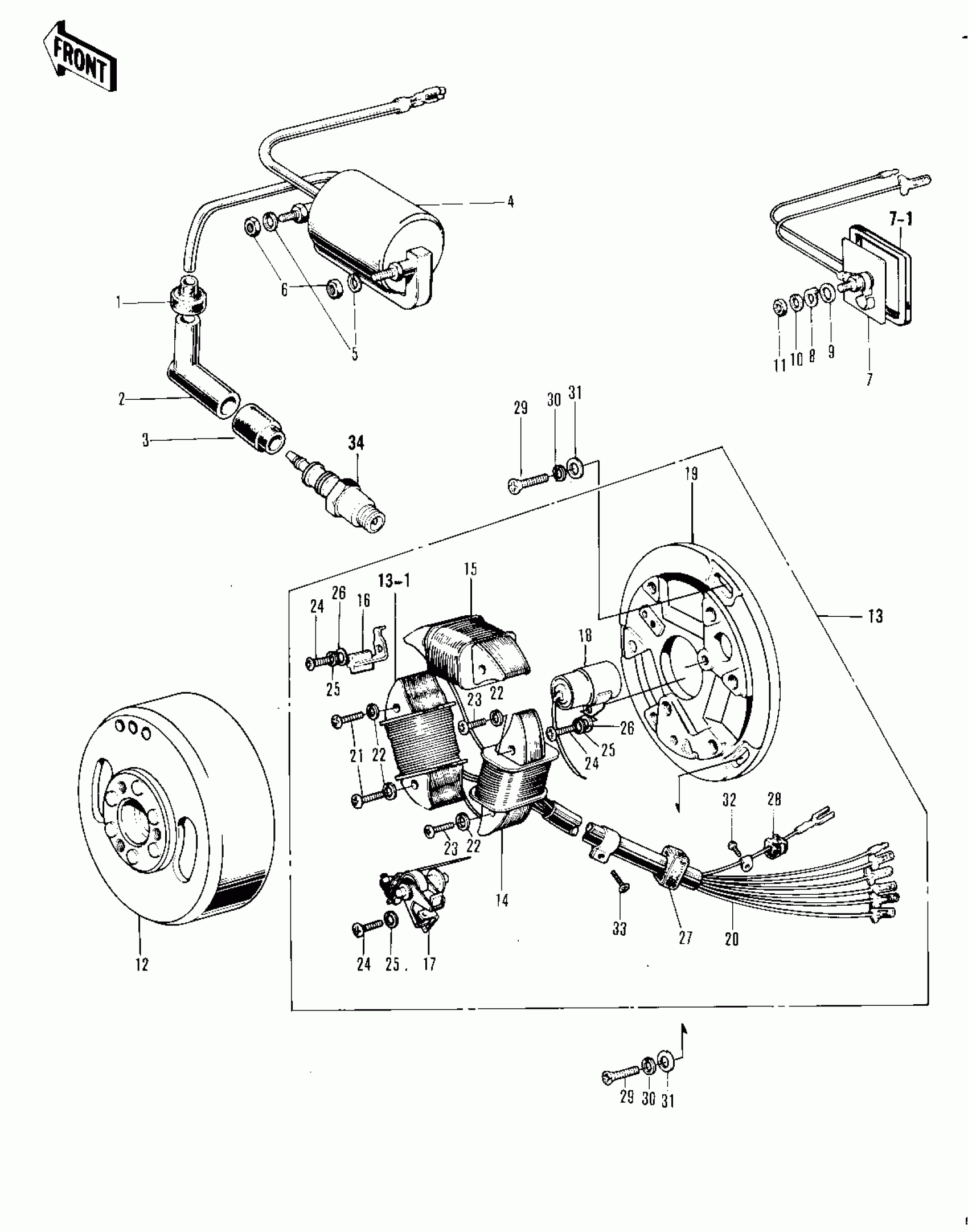

Kawasaki F8-A IGNITION/GENERATOR/RECTIFIER Diagram

#

Description
Price

1

GROMMET,HIGH TENSION

21132-005

$4.26

1

GROMMET,HIGH TENSION

21132-005

$4.26

2

CAP-SPARK PLUG

21130-016

$24.97

3

GROMMET,PLUG CAP

21131-004

$10.97

4

COIL-IGNITION

21121-042

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

NUT 6MM

311B0600

Unavailable

7

RECTIFIER

21061-5001

$29.46

7-1

MAT-RECTIFIER

32103-020

Unavailable

8

WASHER-PLAIN

92022-163

$0.53

9

WASHER PLAIN 5MM

410B0500

Unavailable

10

WASHER SPRING 5MM

461F0500

Unavailable

11

NUT-HEX

311B0500

$0.42

12

FLYWHEEL

21050-011

$218.07

13

STATOR ASSY

21003-012

$145.25

13-1

.COIL-LIGHTING,A

21047-013

$39.19

14

.COIL-LIGHTING,B

21047-014

$39.19

15

.COIL-PRIMARY

21049-012

Unavailable

16

BRUSH,OIL

21019-005

Unavailable

16

BRUSH,OIL

21019-005

Unavailable

17

BREAKER,CONTACT

21008-006

$49.36

17

BREAKER,CONTACT

21008-006

$49.36

18

.~E/NO. 4999CONDENSER

21013-030

Unavailable

18

.~E/NO. 4999CONDENSER

21013-030

Unavailable

19

.BASE-MAGNETO

21048-009

$53.49

20

.WIRING HARNESS

21029-017

$21.07

21

SCREW PAN HEAD 5X30

220B0530

Unavailable

22

WASHER SPRING 5MM

461F0500

Unavailable

23

SCREW-PAN-CROS,5X25

220B0525

$3.05

24

SCREW PAN HEAD 4X10

220B0410

Unavailable

25

WASHER SPRING 4MM

461F0400

Unavailable

26

WASHER PLAIN 4MM

410B0400

Unavailable

27

.GROMMET ENG RUBBER A

92071-014

Unavailable

28

GROMMET WIRING HARN C

21017-005

Unavailable

29

SCREW-PAN-CROS

220B0520

$0.56

30

WASHER SPRING 5MM

461F0500

Unavailable

31

WASHER PLAIN 5MM

410B0500

Unavailable

32

SCREW PAN HEAD 3X5

220B0305A

$0.48

33

SCREW-PAN-CROS,3X8

220B0308

$0.48

34

SPARK PLUGS B8HC

92070-010

Unavailable

34

SPARK PLUG B8HS

B8HS

$3.59

34

SPARK PLUG B8HS

B8HS

Unavailable
