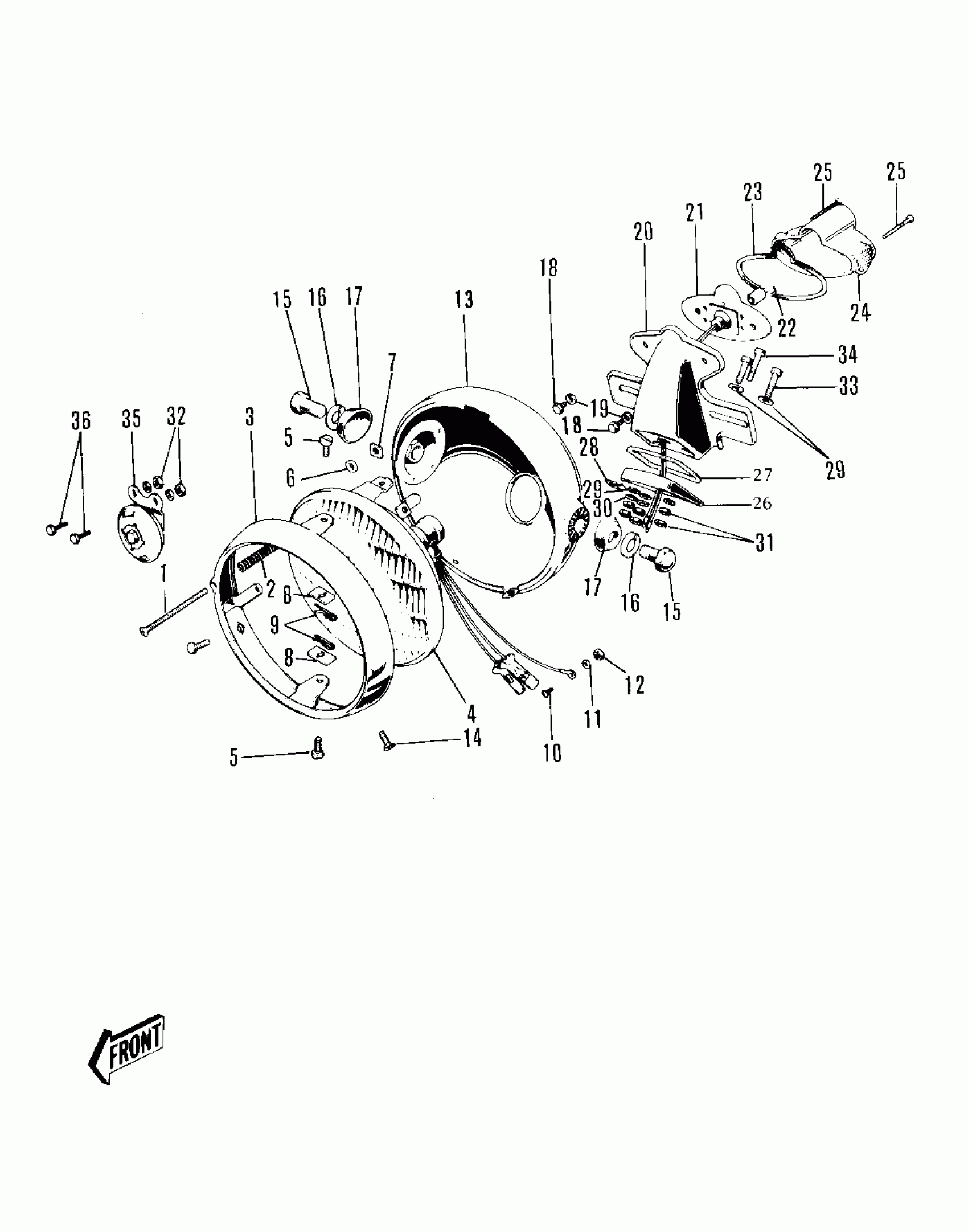

Kawasaki F8-A HEADLIGHT/TAILLIGHT Diagram

#

Description
Price

1-12

LAMP UNIT-HEAD

23003-008

$64.47

1

SCREW,FOCUS ADJUSTING

23019-021

$4.69

2

SPRING,FOCUS ADJUSTING

23014-005

$3.62

3

RIM HEAD LAMP

23006-014

$21.83

4

SEALED BEAM UNIT

23007-022

$129.76

5

SCREW LENS UNIT FITT

23019-018

Unavailable

6

WASHER,4.1X8X0.8

23021-004

$2.91

7

NUT

23020-016

Unavailable

8

NUT LENS UNIT FITTING

23020-009

Unavailable

9

PIN LENS UNIT FITTING

23022-001

Unavailable

10

SCREW-PAN-CROS,3X6

220B0306

Unavailable

11

WASHER SPRING 3MM

461F0300

Unavailable

12

NUT-HEX

311B0300

$0.40

13

BODY-HEAD LAMP,BLACK

23005-022-21

$91.64

14

SCREW-CSK-RD-CROS

222E0510

Unavailable

15

BOLT,HEX HEAD,10X25

92007-045

$9.75

16

WASHER-PLAIN,10MM

411B1000

Unavailable

17

DAMPER RUBBER

92075-058

Unavailable

18-25

LAMP ASSY-TAIL,BLACK

23024-019-21

$146.81

18

.BOLT HEX HEAD 5X10

110N0510A

Unavailable

19

WASHER SPRING 5MM

461F0500

Unavailable

20

BKT LICENSE PLT BLACK

23036-007-10

$54.14

21

SOCKET TAIL LAMP

23027-009

Unavailable

22

BULB 6V 3/21CP

92069-023

Unavailable

23

GASKET TAIL LAMP

23028-008

Unavailable

24

LENS TAIL LAMP

23026-010

Unavailable

25

SCREW PAN HEAD 4X50

220E0450

Unavailable

26

STAY-TAIL LAMP

35031-005

Unavailable

27

DAMPER RUBBER

35016-004

Unavailable

28

CLIP WIRING HARNESS

35024-002

Unavailable

29

WASHER,6.5X20X1.6

92022-125

$1.02

30

WASHER SPRING 6MM

461F0600

Unavailable

31

NUT 6MM

312B0600

Unavailable

32

NUT 6MM

311B0600

Unavailable

33

BOLT-HEX HEAD,6X32

110N0632

Unavailable

34

BOLT-UPSET,6X40

112G0640

Unavailable

35

HORN

27003-062

$39.85

36

BOLT-UPSET,6X20

112G0620

Unavailable
